21
4.4.3 Modifying port aggregation
Click on "Aggregation List" in the need to modify the port aggregation right icon in this area to the port aggregation
port aggregation group corresponding modification:

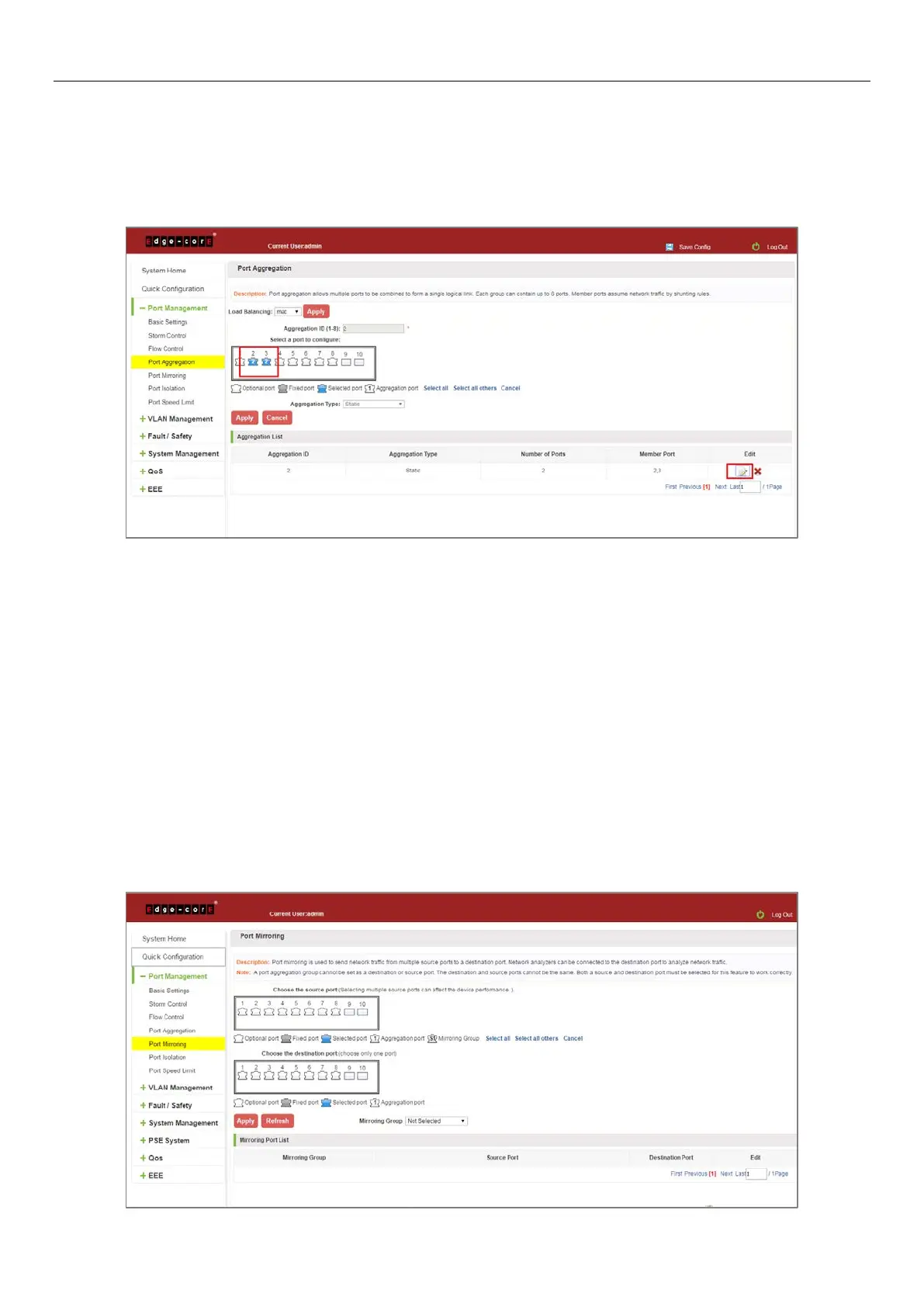

Figure 4-14: To Modify the Port Aggregation
Modify Link Aggregation Procedure:
Step 1: In the "Aggregation List Click to modify the right of the port aggregation,
Step 2: In the port aggregation configuration page to modify the load balancing type and click Next to "Apply".
Step 3: Select the port to be added to the aggregation port.
Step 4: Click the "Apply" button to complete the configuration.
4.5 PORT MIRRORING
4.5.1 Port mirroring configuration
Click "Port Management" "Configuration of Port Mirroring "Port Mirroring" view of the switch:
To Next Page
