9.1.3 The configuration global settings of DSCP
9.1.3.1 The configuration global settings of DSCP and SP
Click on "QoS" "Priority Schedule" "Global Settings", in scheduling mark, choose DSCP, in the Scheduling algorithm,
choose strict priority.

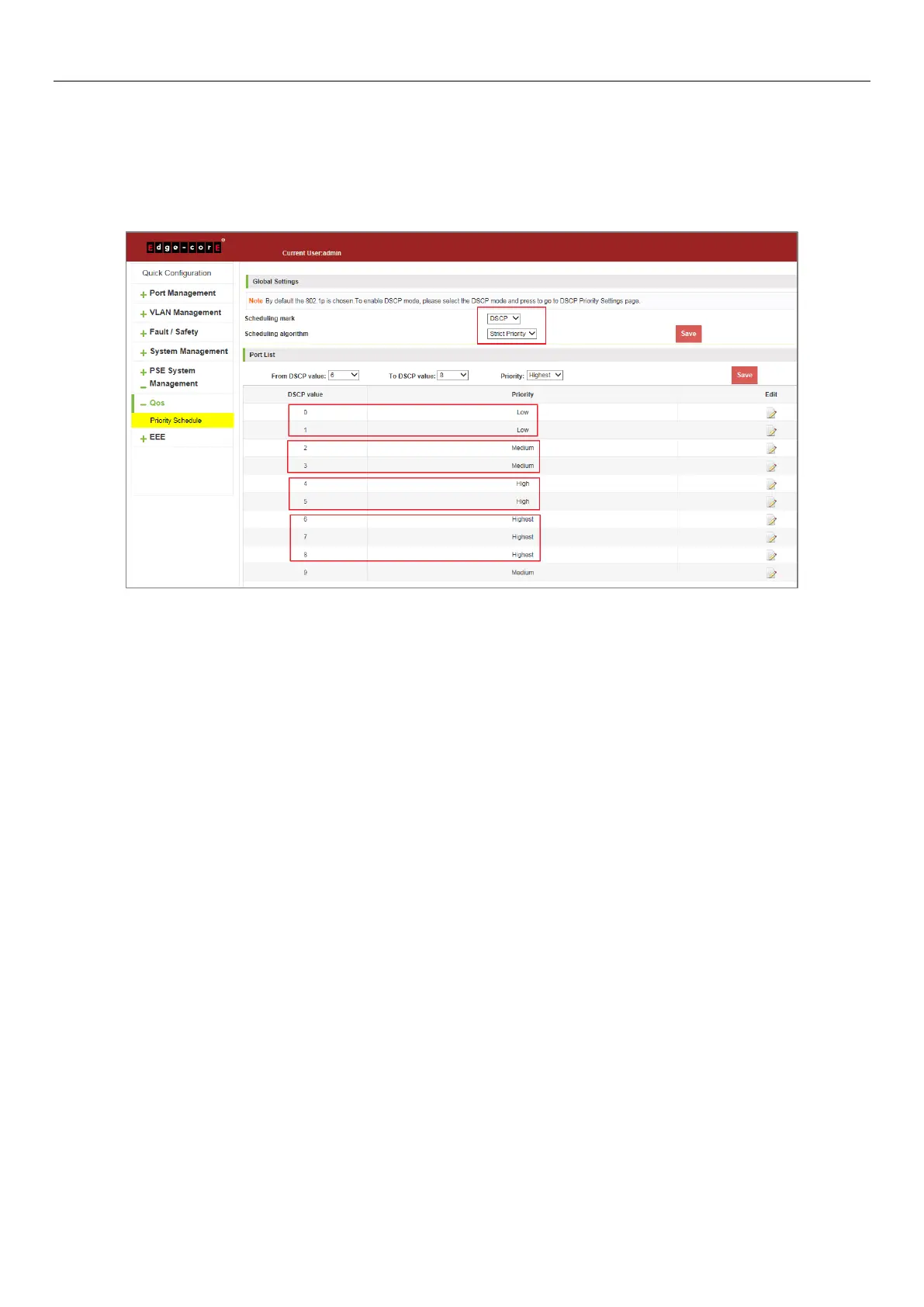

Figure 9-5: Global Settings in DSCP and SP
Priority schedule steps are as follows:
Step 1: In scheduling mark, choose DSCP;
Step 2: In the Scheduling algorithm, choose strict priority,
Step 3: In from DSCP value text box, choose 0 and in to DSCP value text box, choose 1 and in priority text box, choose
low;
Step 4: In from DSCP value text box, choose 2 and in to DSCP value text box, choose 3 and in priority text box, choose
medium;
Step 5: In from DSCP value text box, choose 4 and in to DSCP value text box, choose 5 and in priority text box, choose
high;
Step 6: In from DSCP value text box, choose 6 and in to DSCP value text box, choose 8 and in priority text box, choose
highest.
