9.1.3.2 The configuration global settings of DSCP and WRR
Click on "QoS" "Priority Schedule" "Global Settings", in scheduling mark, choose DSCP, in the Scheduling algorithm,
choose strict priority.

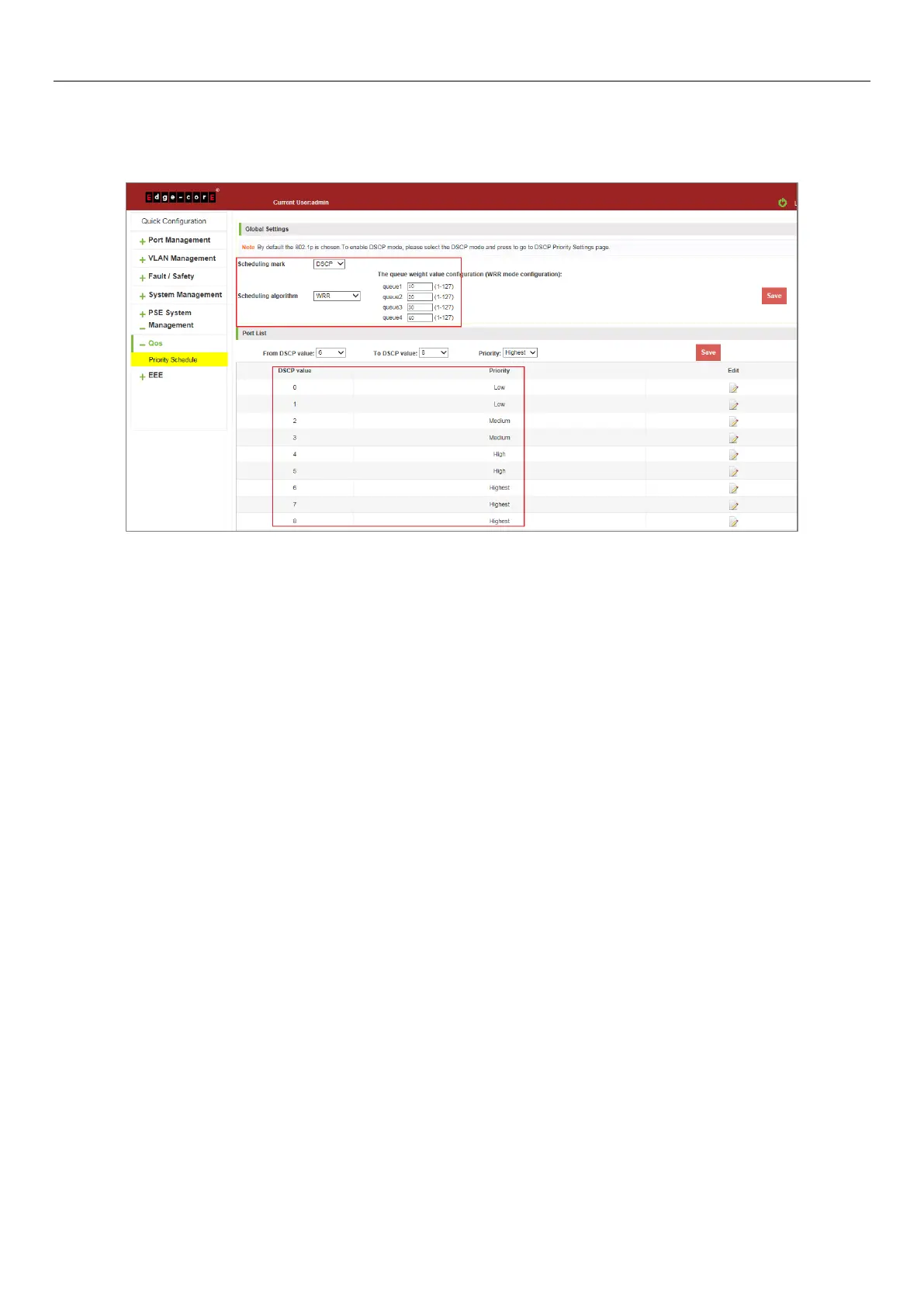

Figure 9-6: Global Settings in DSCP and WRR
Priority schedule steps are as follows:
Step 1: In scheduling mark, choose DSCP;
Step 2: In the Scheduling algorithm, choose WRR,
Step 3: In queue1 text box, enter the weight value, such as 10;
Step 4: In queue2 text box, enter the weight value, such as 20;
Step 5: In queue3 text box, enter the weight value, such as 30;
Step 6: In queue4 text box, enter the weight value, such as 40.
