35
5.2 VOICE VLAN
5.2.1 View voice VLAN information
Click on the navigation bar "VLAN Management" "Voice VLAN" "Voice VLAN Global" to view the switch configured:

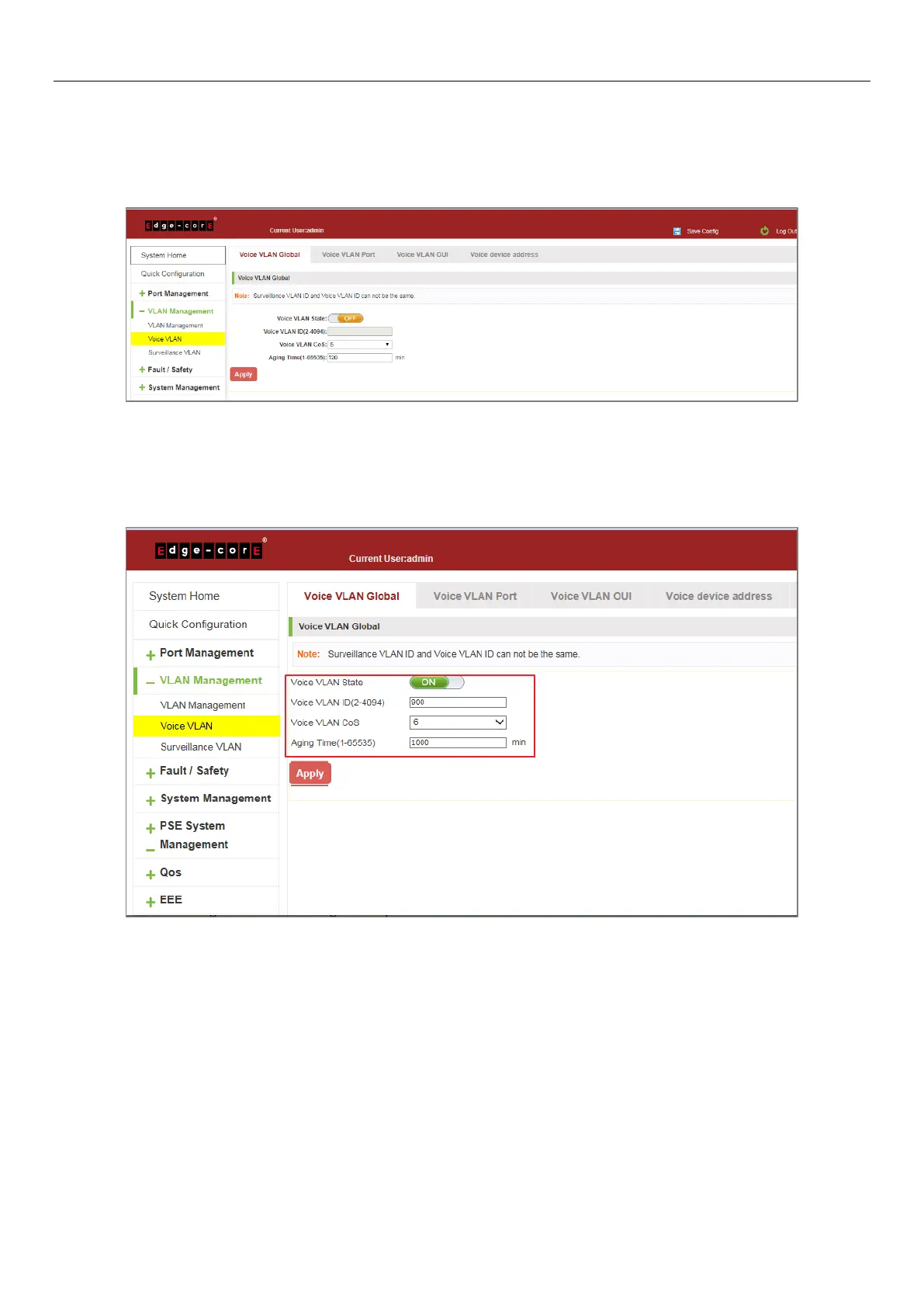

Figure 5-10: View Voice VLAN Information
5.2.2 Configure voice VLAN global
Click on the navigation bar "VLAN Management" "Voice VLAN" "Voice VLAN Global" to configure the voice VLAN;
Figure 5-11: View Voice VLAN Information
To configure the voice VLAN global steps as follows:
Step 1: In the voice VLAN state TEXT BOX, click ON the "OFF" to "ON",
Step 2: In the voice VLAN ID text box, enter the ID, such as 900;
Step 3: In the voice VLAN COS text box, choose 6;
Step 4: In the aging time text box, enter aging time, such as 1000;
Step 5: Click "Apply".
