described in Table 22. See the R-Series Remote Annunciators and Expanders
Installation and Operation Guide (P/N 3100969-EN) for specifications.
Operating power can come from one of the following sources:
• The auxiliary power outputs on a PS10-4B power supply card
• Continuous AUX power on the CPU
• An auxiliary/booster power supply that is UL/ULC listed for fire protective
signaling systems

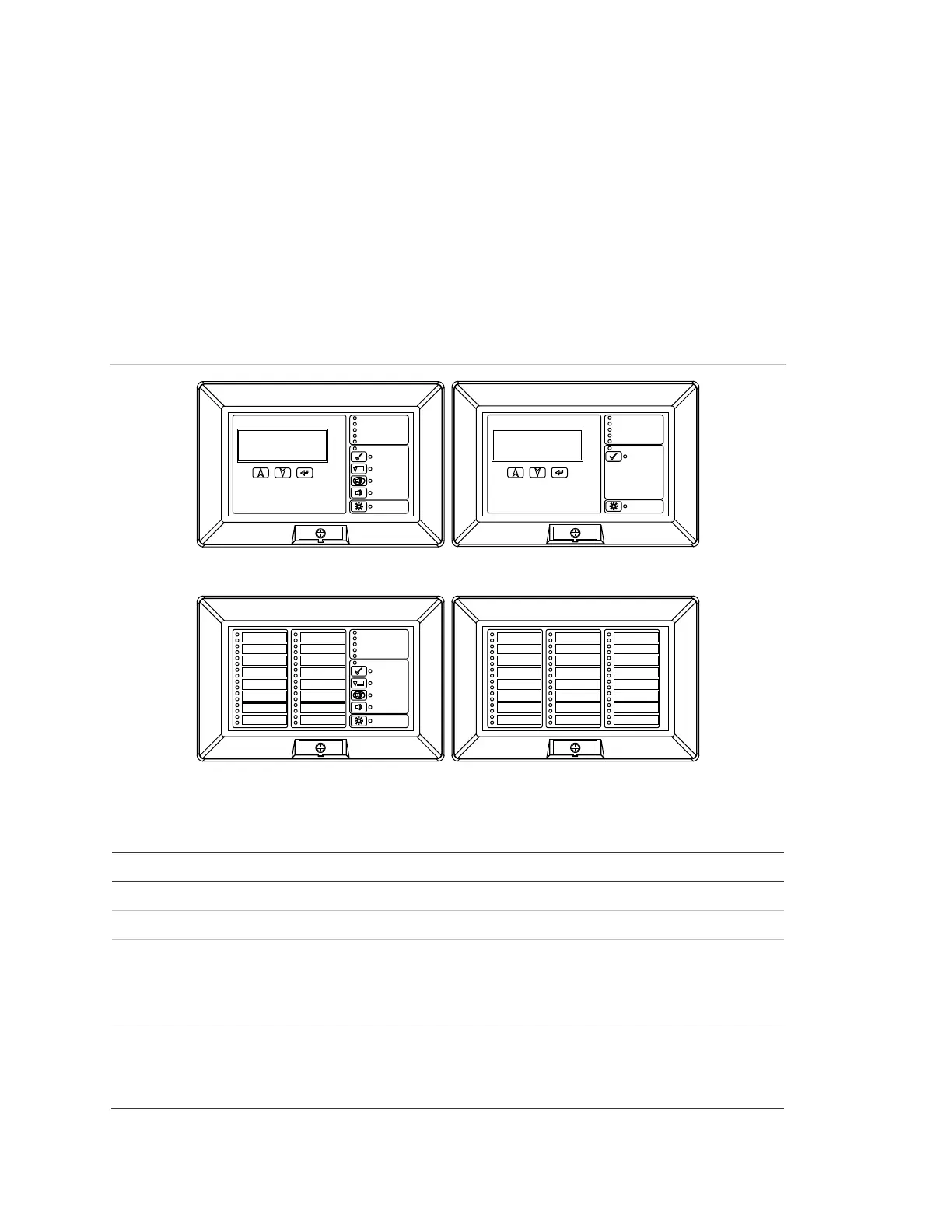

Figure 17: Compatible R-Series remote annunciators
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
RLCD-C
RLED-C
RLCD
RLED24
Controls Enabled
Ack/Silence
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
Table 22: Compatible R-Series remote annunciators
Model
Description
R
LCD-C Remote LCD text annunciator with common controls and indicators.
R
LCD Remote LCD text annunciator with indicators (no common controls).
RLED
-C Remote LED annunciator with common controls and 16 pairs of programmable
LEDs. The first 12 pairs are dedicated red-over-yellow LED
s. The last four pairs
can be configured in the 3-SDU as red-over-yellow LEDs or as yellow-over-
yellow LEDs.
RLED24
Remote annunciator LED expander with 24 pairs of programmable LEDs. The
top 12 pairs are dedicated red-over-yellow LEDs. The bottom 12 pairs can be
configured in the 3-SDU as red-over-yellow LEDs or as yellow-over-yellow
LEDs.
