LCD model remote annunciator controls and indicators

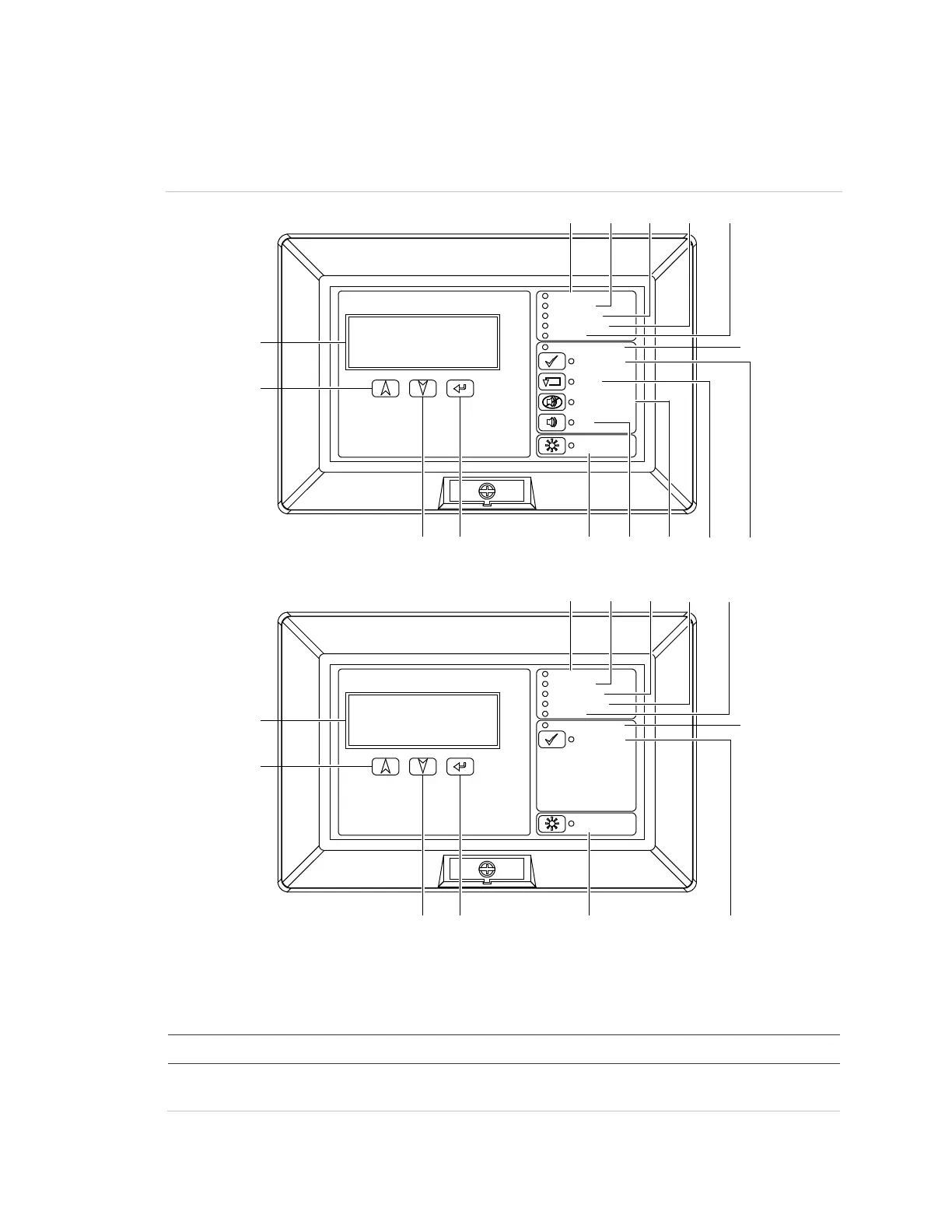

Figure 18: LCD model remote annunciator controls and indicators
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
RLCD-C
Controls Enabled
Ack/Silence
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
RLCD
(1)
(1)
(2)
(2)
(3)
(3)
(4)
(4)
(5)
(5)
(6) (7) (8) (9)
(9)
(10)
(10)
(11)
(11)
(12)
(12)
(13)
(13)
(14)
(14)
(15)
(15)
Note: Items 6 through 8 are excluded from the RLCD.
Table 23: LCD model remote annunciator indicators and controls
No.
Item Description
1
LCD screen Displays system status, event messages, and event
message details.
