EST EST3X - Digital audio subsystem

Chapter 4: Supplementary applications
80 EST3X Technical Reference Manual
Digital audio subsystem
The digital audio subsystem consists of a variety of signal sources, integral
amplifiers, and control software. The 3X-PMI Paging Microphone Interface adds
controls for emergency voice and alarm communications to your EST3X life
safety system.
The 3X-PMI interface is designed so that when an alert page is issued the page
signal automatically overrides any other signals. Zoned amplifiers are distributed
throughout the system. They provide the demultiplexing, switching, amplification,
and circuit supervision.
Refer to the 3X-PMI Paging Microphone Interface Installation Sheet
(P/N 3101875) for technical specifications.

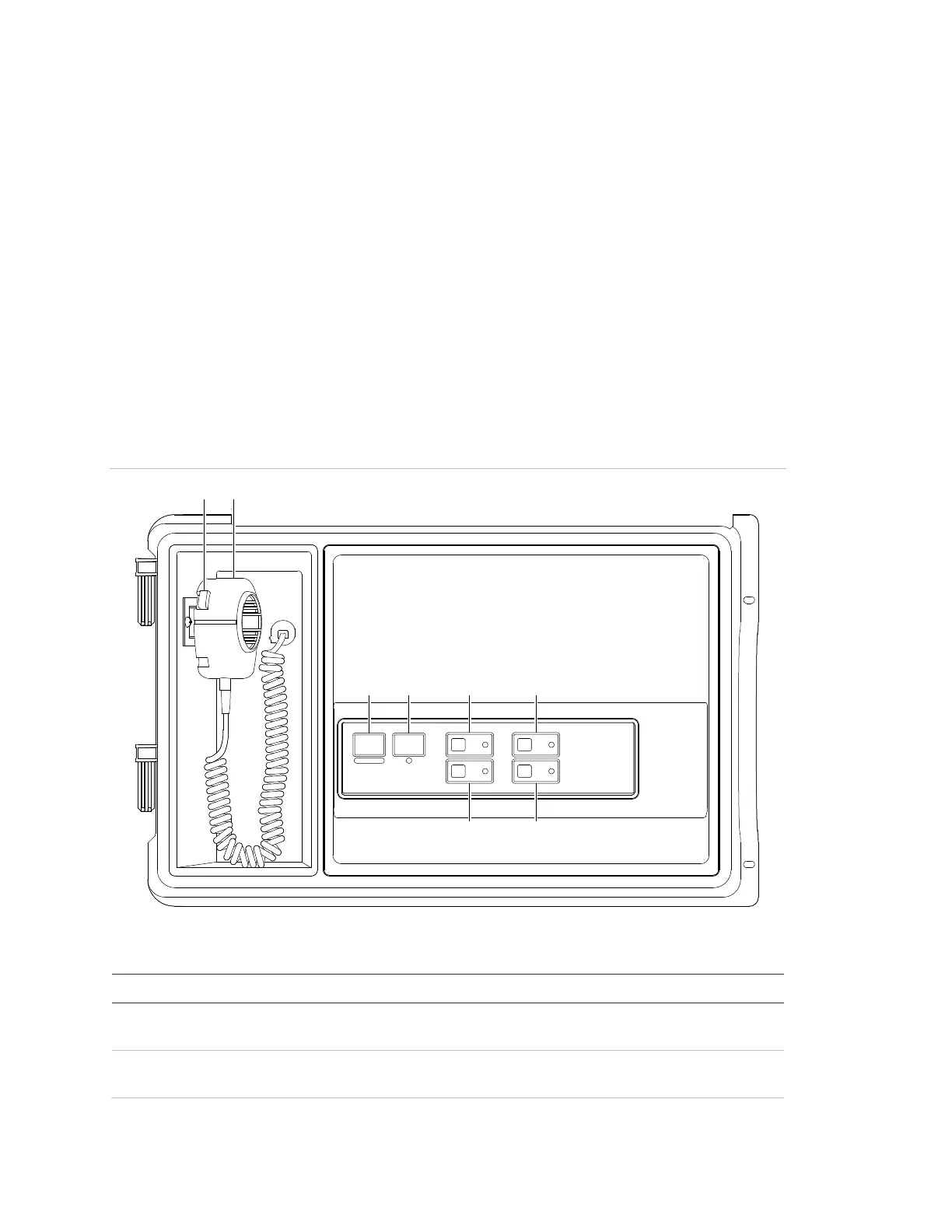

Figure 13: 3X-PMI Paging Microphone Interface
Paging
Volume To Page
Ready
All Call
All Call
Page
Page
Minus
To Alert
To Evac
Paging Microphone
(1) (2)
(3) (4) (5) (6)
(8) (7)
Table 19: 3X-PMI operator controls and indicator descriptions
No.
Control/Indicator Description
1
PTT button Pressing the PTT button enables transmission of a live voice
announcement.
2
Paging microphone Handheld microphone that allows initiation of a live voice
announcement.
