Chapter 5: Installation
114 EST3X Technical Reference Manual
PS10-4B Power Supply Board
WARNINGS
• Electrocution hazard. To avoid personal injury or death from electrocution,
make sure the distribution circuit providing mains AC is rendered inoperative
prior to connecting mains input wiring to the PS10-4B Power Supply.
• Electrocution hazard. To avoid personal injury or death from electrocution,
remove all sources of power and wait 11 minutes to allow stored energy to
discharge before installing or removing equipment.
Caution: Circuit boards are sensitive to electrostatic discharge (ESD). To avoid
damage, follow ESD handling procedures.
One PS10-4B Power Supply Board is required for each control panel. The power
supply provides the required power and related supervisory functions for the
control panel as well as filtered, regulated power, and 24 VDC output for
operating notification appliances and ancillary equipment.

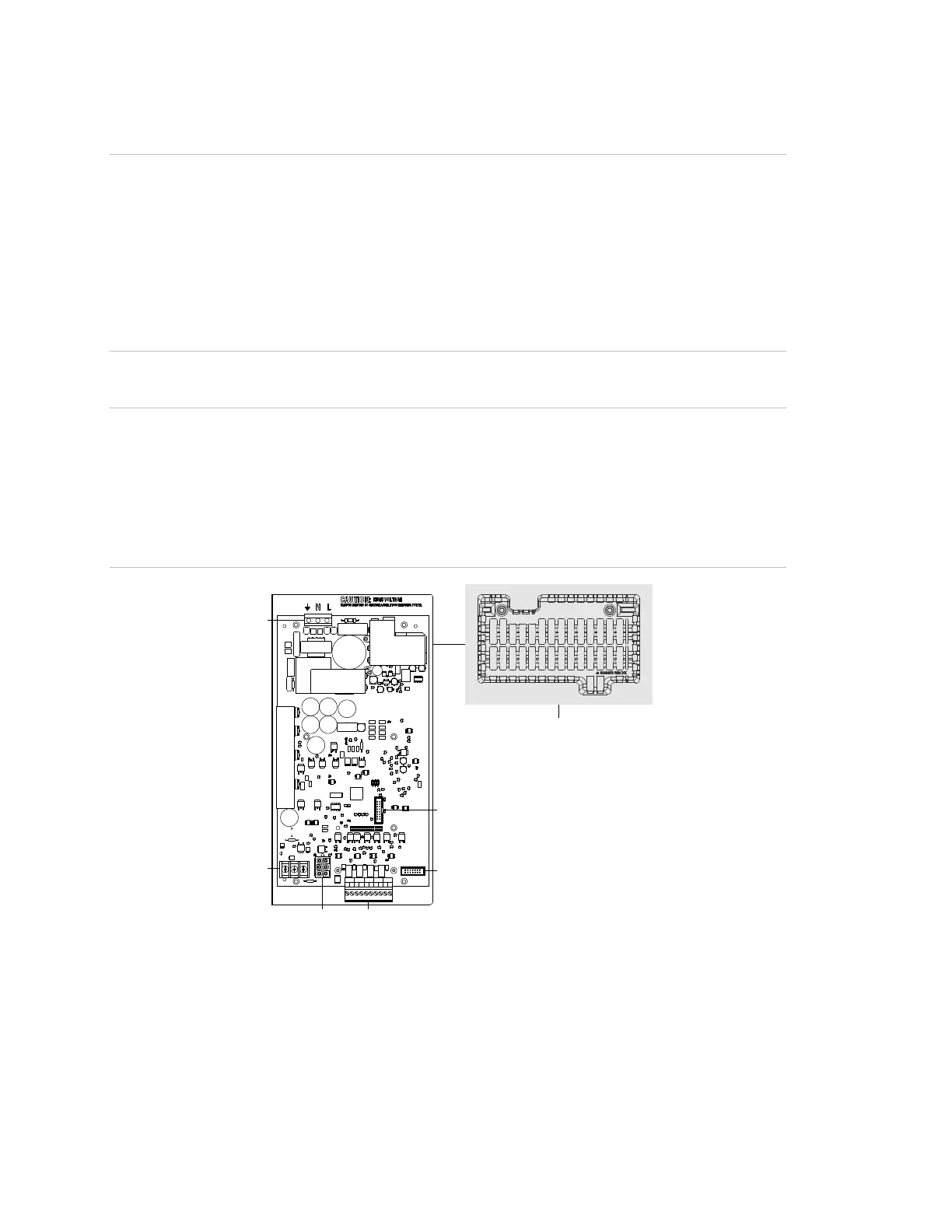

Figure 26: PS10-4B Power Supply Board
TB1
J1
TB3
J5
J3
J1
J4
J5
TB2
TB3
J2
+
-
+
-
+
-
+
-
+
-
NAC AUX 1 NAC AUX 2 NAC AUX 3 NAC AUX 4
N. C.
TB1
TB2J2
(1)
(1) Power supply protective cage used in
ULC applications
J1
Data ribbon cable connector
J2
Power supply cable connector
J5 Audio system connector option
TB1 Mains input wiring
TB2 NAC/AUX wiring
TB3 Battery wiring
On-board terminals and connectors facilitate connection to the SFS1-CPU, mains
input wiring, NAC/AUX wiring, and battery wiring. The 24 VDC rechargeable
