• Configure the 3-SDU Cabinet Configuration > Ports > Port Type to
CDR-3/Printer and the Baud Rate to the same rate as the CDR-3 and
printer
• Set the IOP3A DIP switch SW1 to UP (enables outputs 1 and 2; disables
DB9 and RJ12 connectors)
• Set the IOP3A jumpers as follows:
- Jumper JB1: Pins 2-3 (Supervision Mode) (Note: Jumpers JB1 and
JB4 settings must agree)
- Jumper JB2 (Output 1): IN for an unsupervised printer (disables
12 VDC on TB2-1); OUT for a supervised printer (enables TB2)
- Jumper JB3 (Output 2): IN (disables 12 VDC on TB3-1)
- Jumper JB4: IN (Supervision Mode) (Note: Jumpers JB1 and JB4
settings must agree)
Note: After configuring and wiring the CDR-3, adjust zoned amplifier output
levels and the 3X-PMI EAEC auxiliary input gain as necessary.

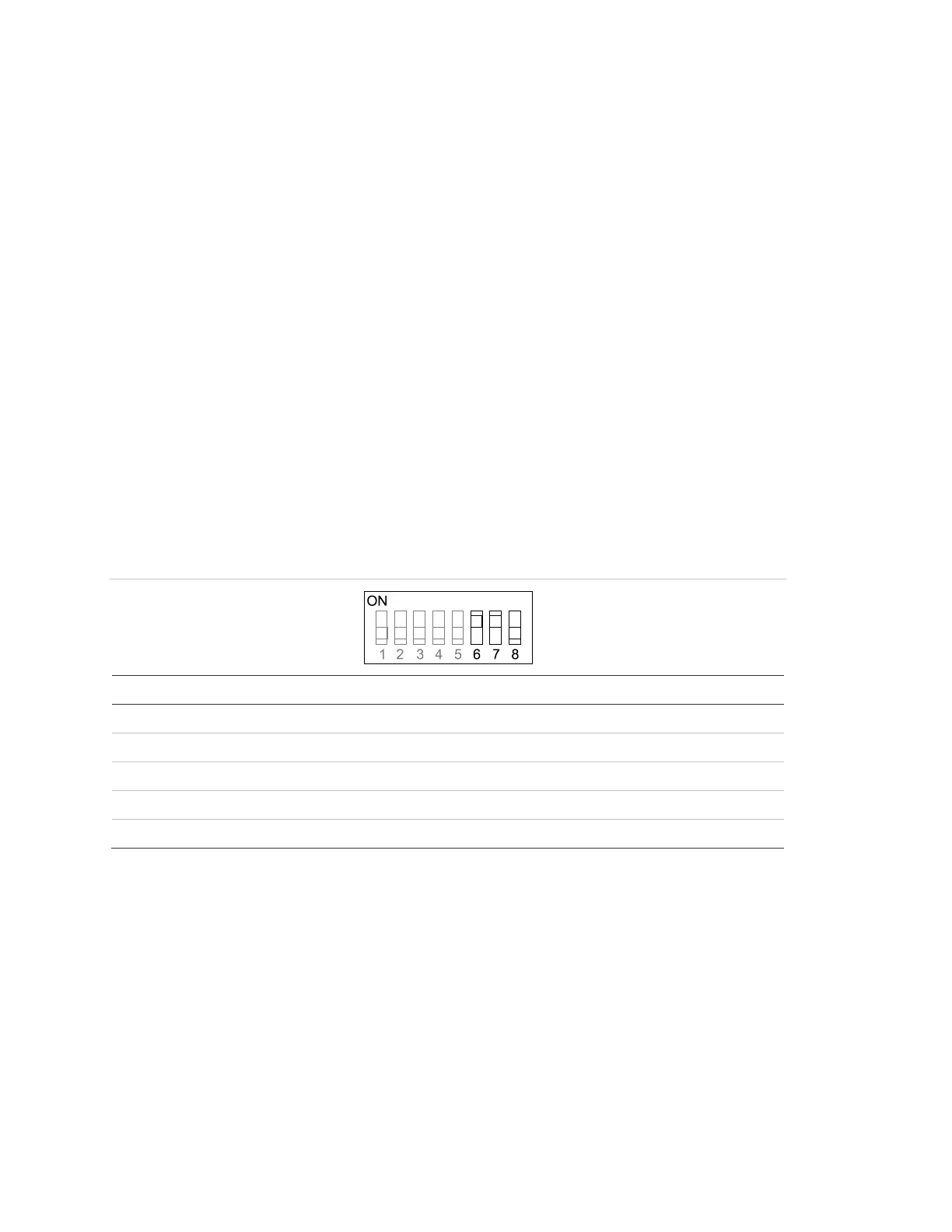

Figure 38: CDR-3 parity and baud rate settings
-6
-7 S1-8 Description
– No parity
OFF 1200 baud
ON 2400 baud
OFF 4800 baud (factory default)
ON 9600 baud
