Setting Up Copper Tests
Copper and G.fast/VDSL2/ADSL2+ Multi-play Test Set 93
FED Control
2. For Open, connect the T-R/A-B and ground wires to the customer side
of the FED (blue labeled connectors).
3. For T-R-G/A-B-E Shorted, connect the T-R-G/A-B-E to the customer
connectors (blue-labeled Pair1- Cu) and the ground lead to the
network ground.

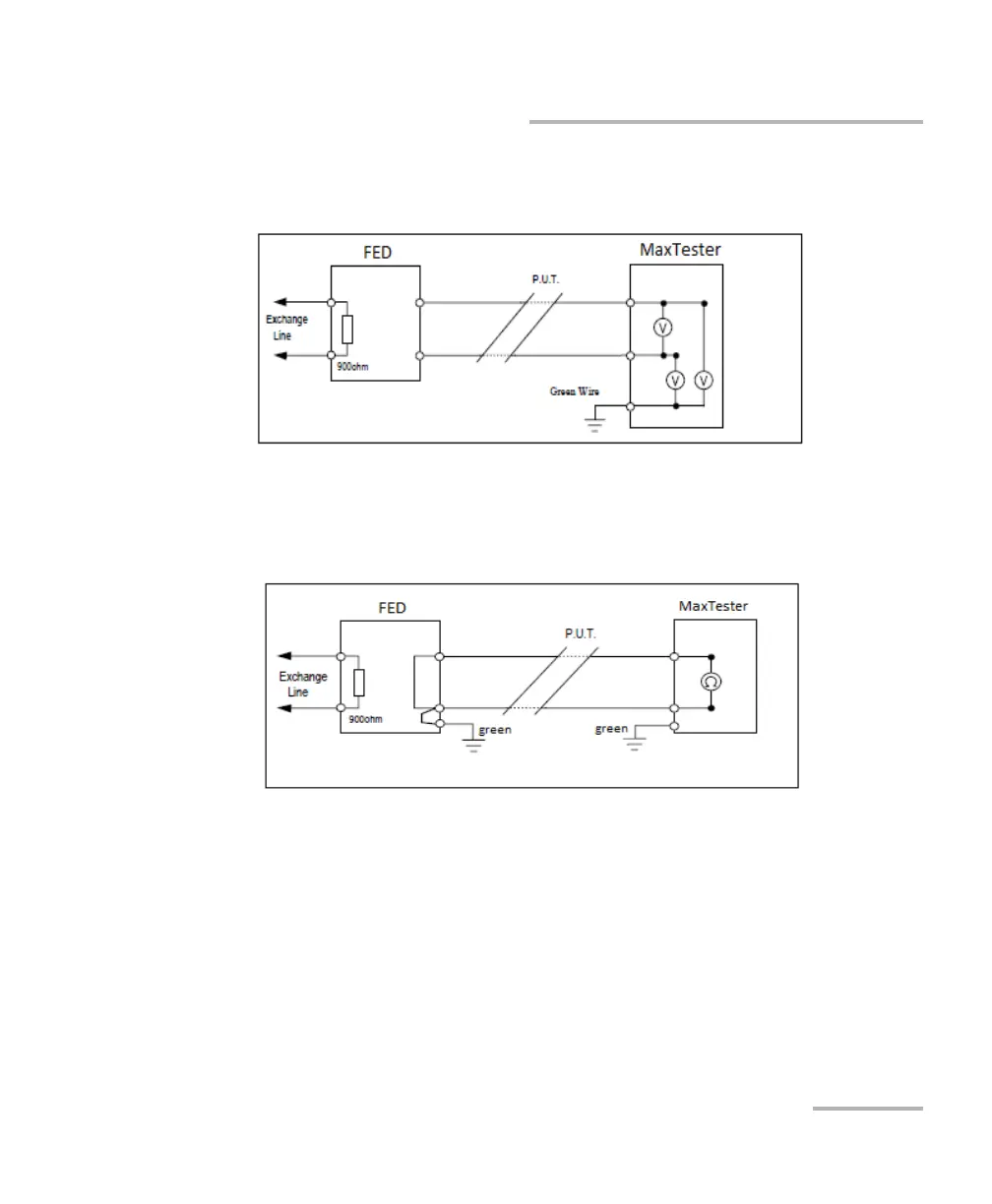

Note: P. U . T., in the above diagrams, refers to the Pair Under Test.
Remote is the FED, and Controller is the MaxTester.
