Setting Up Copper Tests
94 MAX-635G
FED Control

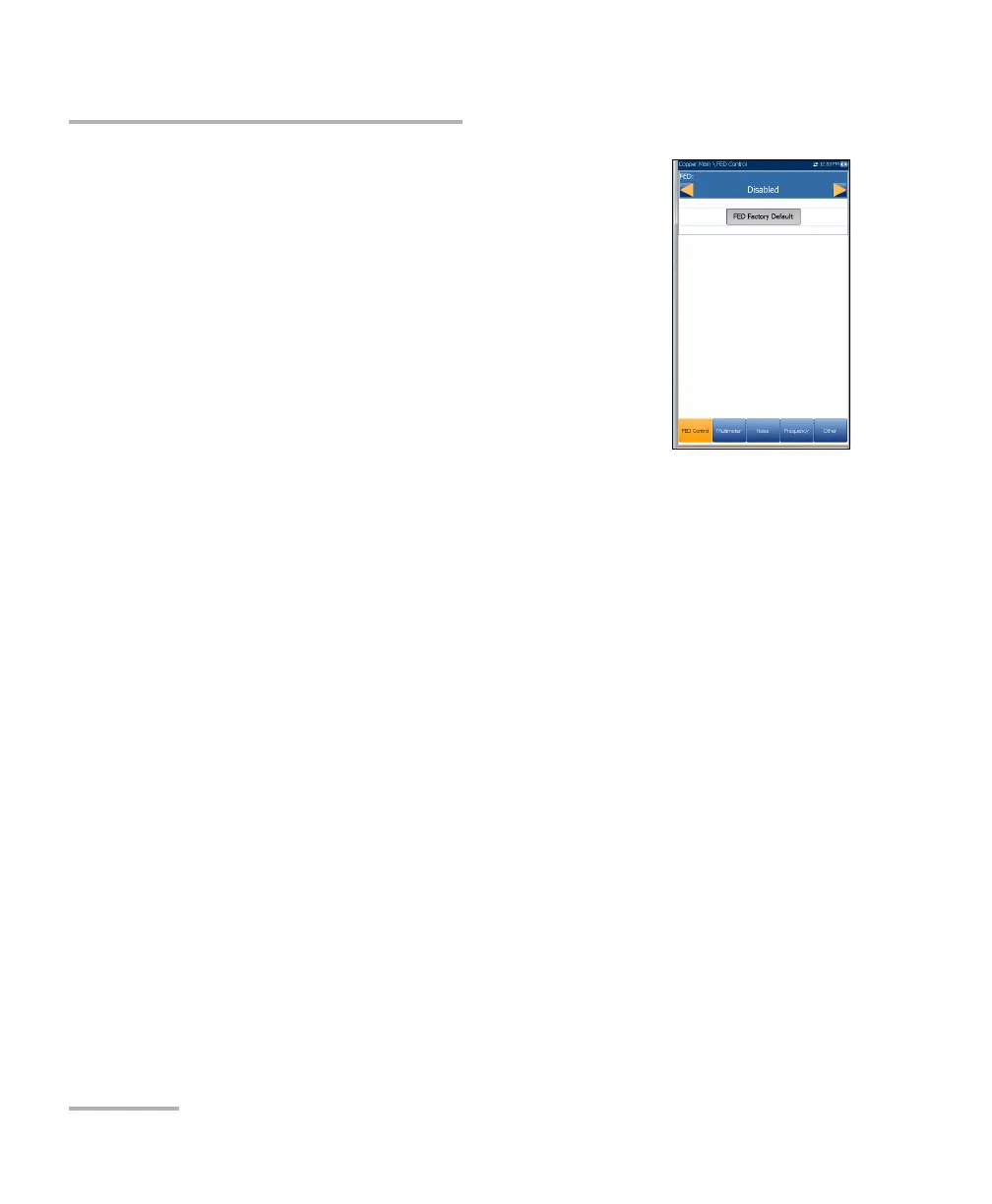

The FED Control tab displays the following
parameters:
FED sets the default FED States to be Disabled,
Auto (automatic), or Manual for the following
tests. When Disabled/Auto, the states are saved
in the profile.
Multimeter
Noise
Frequency
Other
When FED is Auto or Manual and you start a test, the MaxTester will
warn you if the FED battery level is low. Select OK to close the message
and run the test. Also, if the FED is not present or not responding, a
Confirmation dialogue box will be displayed asking if you want to
disable FED and run the test anyway.
FED Type is enabled when FED is set to Auto or Manual. If Auto is
selected, you can choose between TS125 or UFED IIB.
When UFED support is enabled:
the Isolation test voltage source will automatically be limited to
125 V, Return Loss test termination to 120
Ω, and VF/WB Impulse
Noise tests duration to 15 min only.
MMT (maximum measurement time) is determined for every test.
For tests which run in Continuous mode, the MMT is set to 20 s
allowing you to observe continuous results in numerical or
graphical format. At the end of the MMT, the continuous test is
terminated. However, due to UFED limitation, the Continuous
Isolation resistance test will act the same as the test in Snapshot
mode and terminate after the Soak Time period expires.
