Setting Up Copper Tests
Copper and G.fast/VDSL2/ADSL2+ Multi-play Test Set 97
FED Control
Multimeter

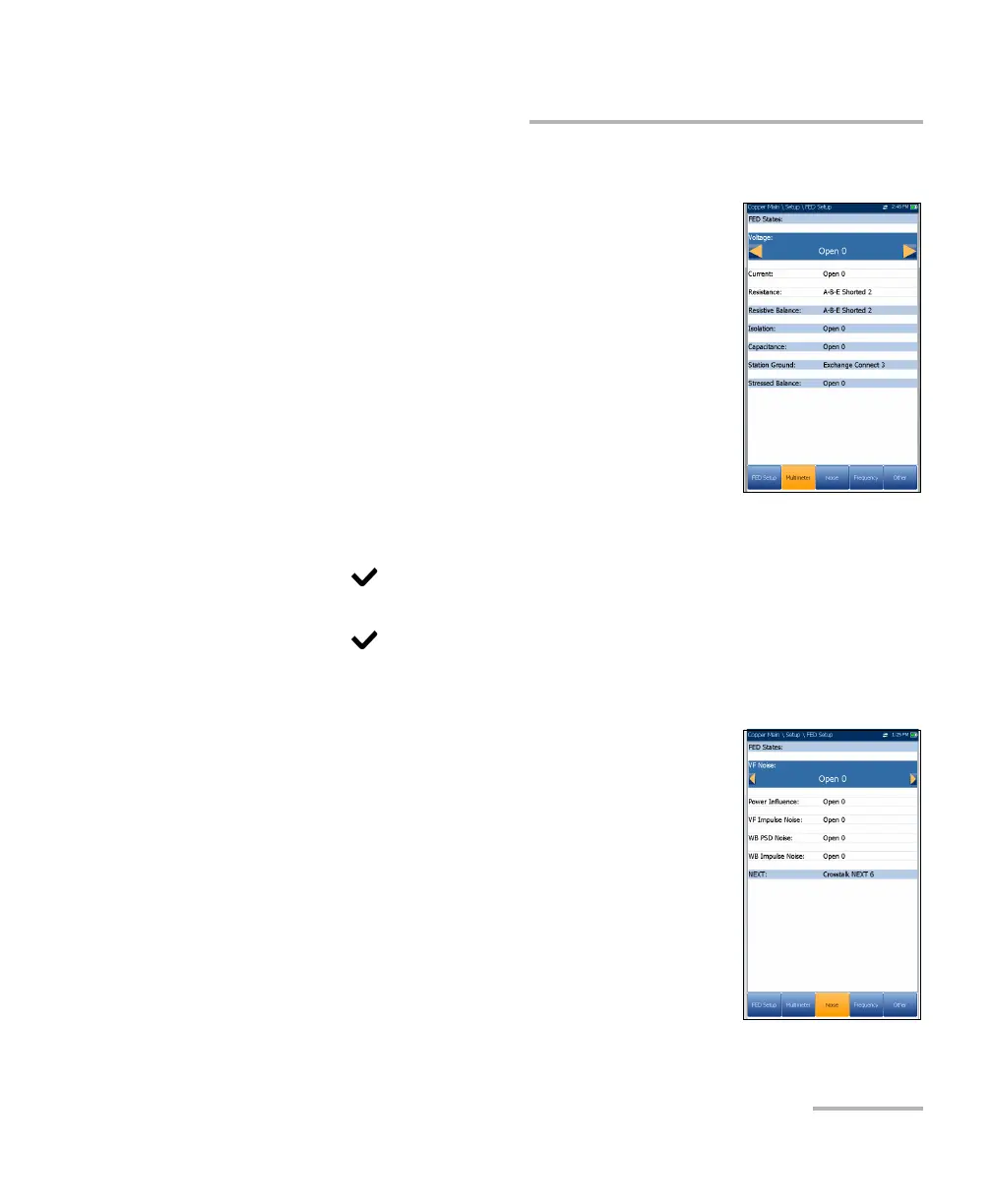

The Multimeter tab lists the default FED States set for
all multimeter tests, and allows you to set the values
for the following:
 Voltage
 Current
 Resistance
To select the parameter values:
1. Press the up/down arrow keys to highlight the
desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press on a value to open a list box of options and press the
up/down arrow keys to highlight the desired parameter.
4. Press to confirm the value.
Noise
The Noise tab allows you to set the FED States for all
noise tests, and lists the default value for NEXT test.
The Terminated FED state appends the required
resistance value. For example, if you select
Terminated (600
Ω) 5, the Termination Resistance
will be 600 ohms.
To select the parameter values:
1. Press the up/down arrow keys to highlight the
desired parameter.
2. Press the left/right arrow keys to view and select
the options.
