Setting Up Copper Tests
98 MAX-635G
FED Control
OR
3. Press on a value to open a list box of options and press the
up/down arrow keys to highlight the desired parameter.
4. Press to confirm the value.

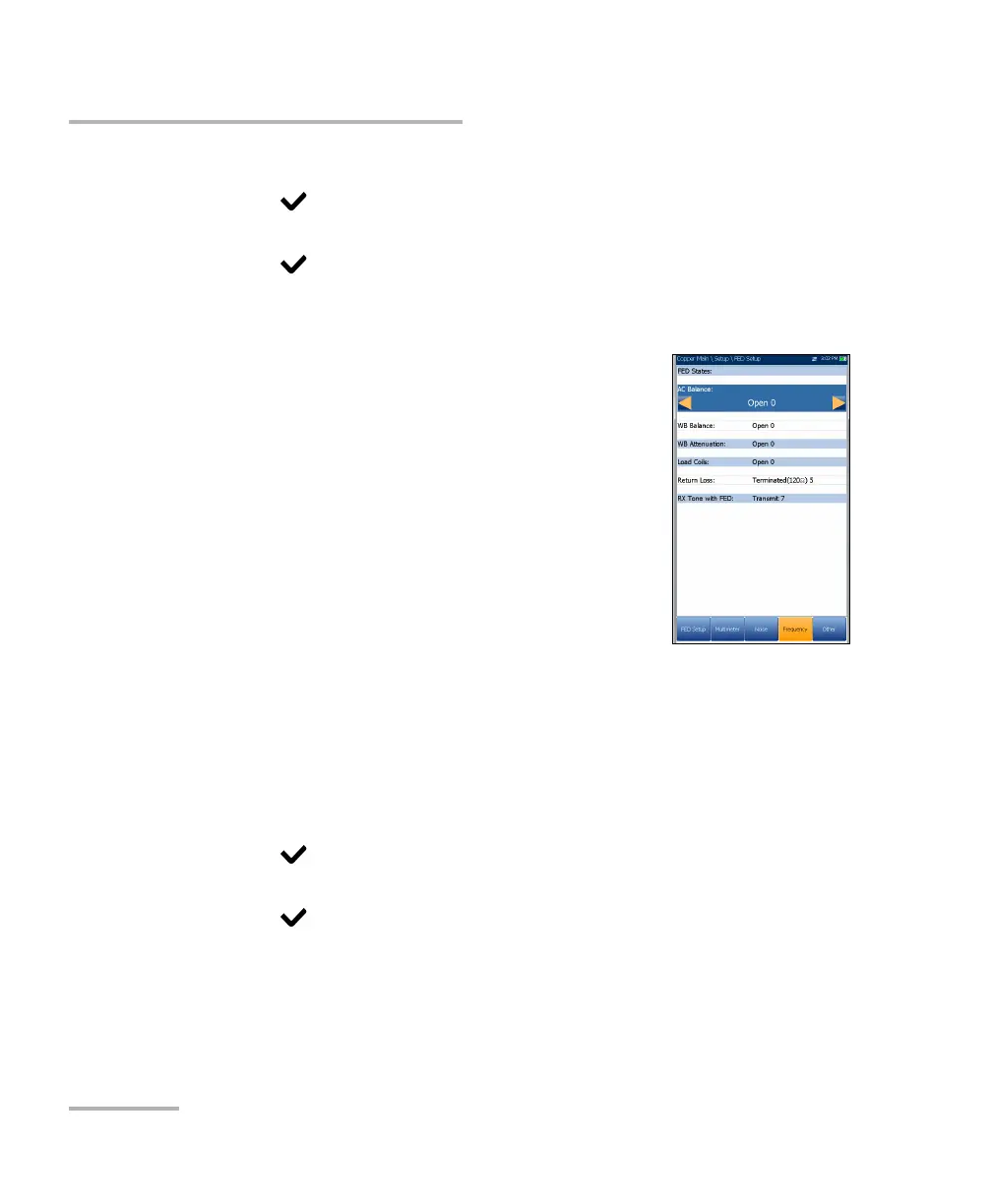

Frequency
The Frequency tab lists the default FED States set for
frequency tests and allows you to set the values for the
following:
VF/AC Balance
WB Balance
Return Loss
Default values are displayed for WB Attenuation, RX
Tone with FED, and Load Coils.
The Terminated FED state appends the required
resistance value. For example, if you select
Terminated (600
Ω) 5, the Termination Resistance will be 600 ohms.
To select the parameter values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press on a value to open a list box of options and press the
up/down arrow keys to highlight the desired parameter.
4. Press to confirm the value.
