Multimeter Tests
Copper and G.fast/VDSL2/ADSL2+ Multi-play Test Set 127
Resistance

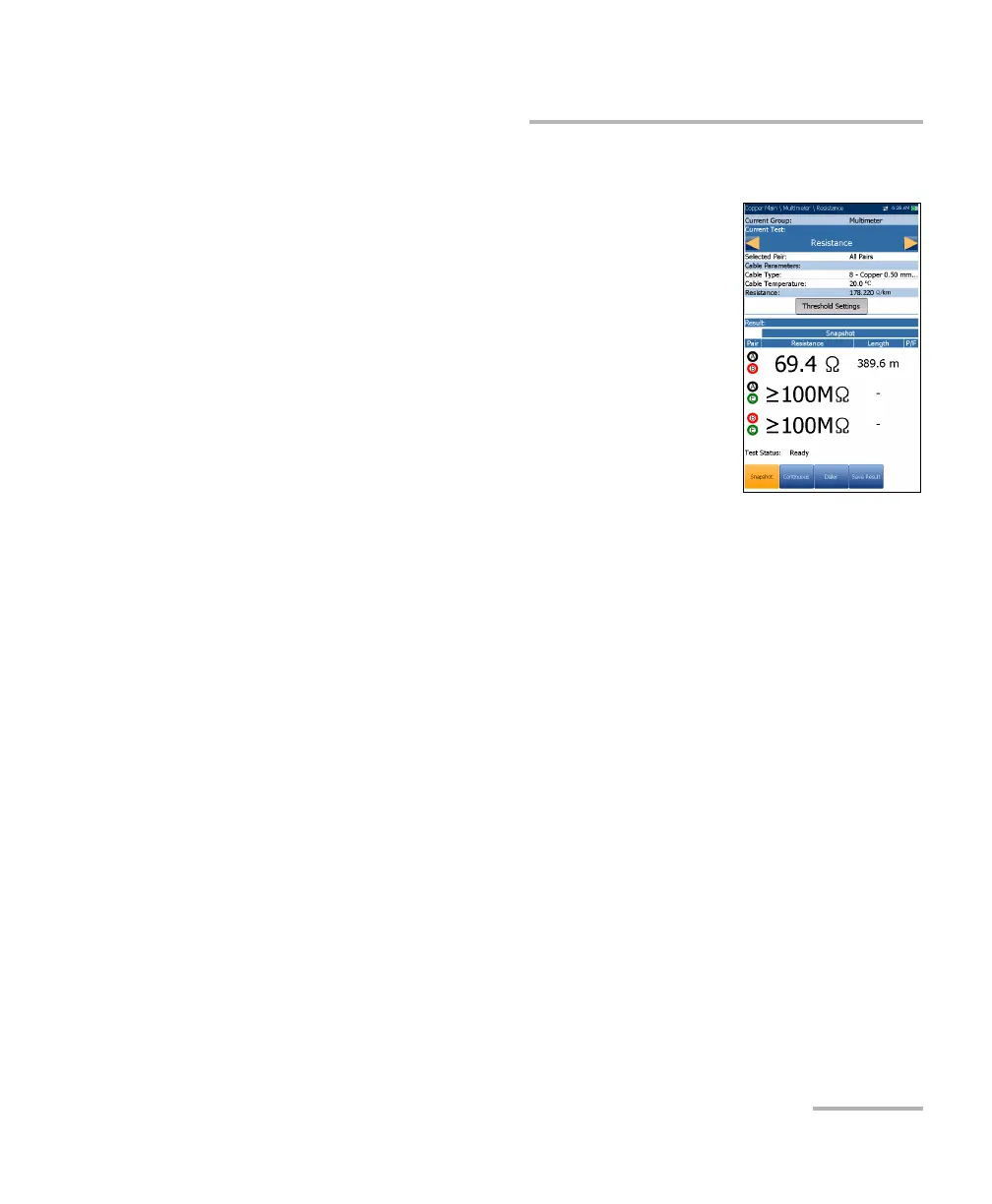

Snapshot
The resistance Snapshot shows measured resistance
values in ohms and cable lengths for each lead
combination. The parameters are as follows:
Current Group is the current test group name, for
example Multimeter.
Current Test displays the test being measured.
When FED is Enabled, the FED icon and numeric
state are displayed beside the Current Test.
Here you can switch to another test from the given
list. However, this action will terminate the
ongoing measurement test.
Selected Pair allows you to select All Pairs or a single wire pair for
measurement.
Cable Parameters:
Cable Type displays the ID, Cable Name and Fill, and allows you to
select an entry (with its associated parameters) from the current
Cable Book, to use for testing. The selection is not saved when
leaving the test. The current Cable Book entry is shown by default.
Cable Temperature is the temperature in either °F or °C of the
cable under test.
Resistance displays the resistance per length constant of the selected
Cable Type. The value is updated when Cable Temperature/Type is
changed.
Threshold Settings button opens a new page that allows you to set
resistance thresholds for each pair.
Result displays a snapshot of the pass/fail status, Resistance and
Length for each selected wire pair.
Test Status displays the current state of measurement or an error
message.
