Multimeter Tests
Copper and G.fast/VDSL2/ADSL2+ Multi-play Test Set 147
Station Ground
Threshold Settings

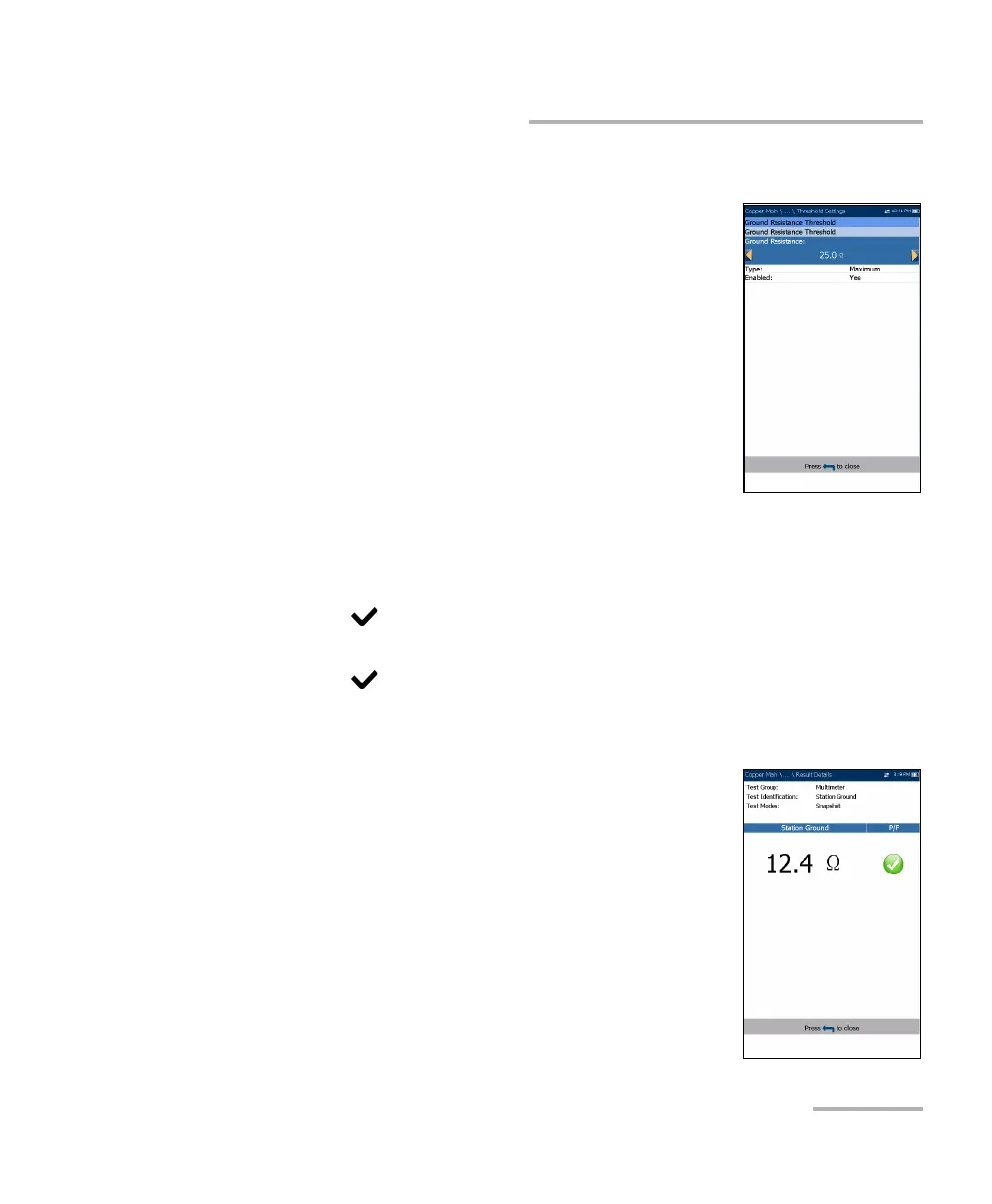

The Test Thresholds page allows you to set the
threshold values for the Ground Resistance. The
threshold is a programmable value used as an
on-screen indicator in each test when a measured
value is too high or too low.
Type is the threshold limit: either Maximum or
Minimum.
Enabled is a flag to use the current threshold:
either Yes or No.
To set threshold values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press on a value to open a list box of options or the alphanumeric
editor screen and use the navigation keys to scroll through.
4. Press to confirm the value.
Result Details
The Result Details read-only page displays the
Station Ground results and the pass/fail status.
Test Group is the overall test group of the
selected saved results file, for example
Multimeter.
Test Identification is the test type of the group, for
example Station Ground.
Test Modes identifies the manner in which the
test was run, for example Snapshot.
