SmartR™ Features
Copper and G.fast/VDSL2/ADSL2+ Multi-play Test Set 157
Pair Detective
3. Press on a value to open the alphanumeric editor screen and use
the navigation keys to scroll through.
4. Press to confirm the value.

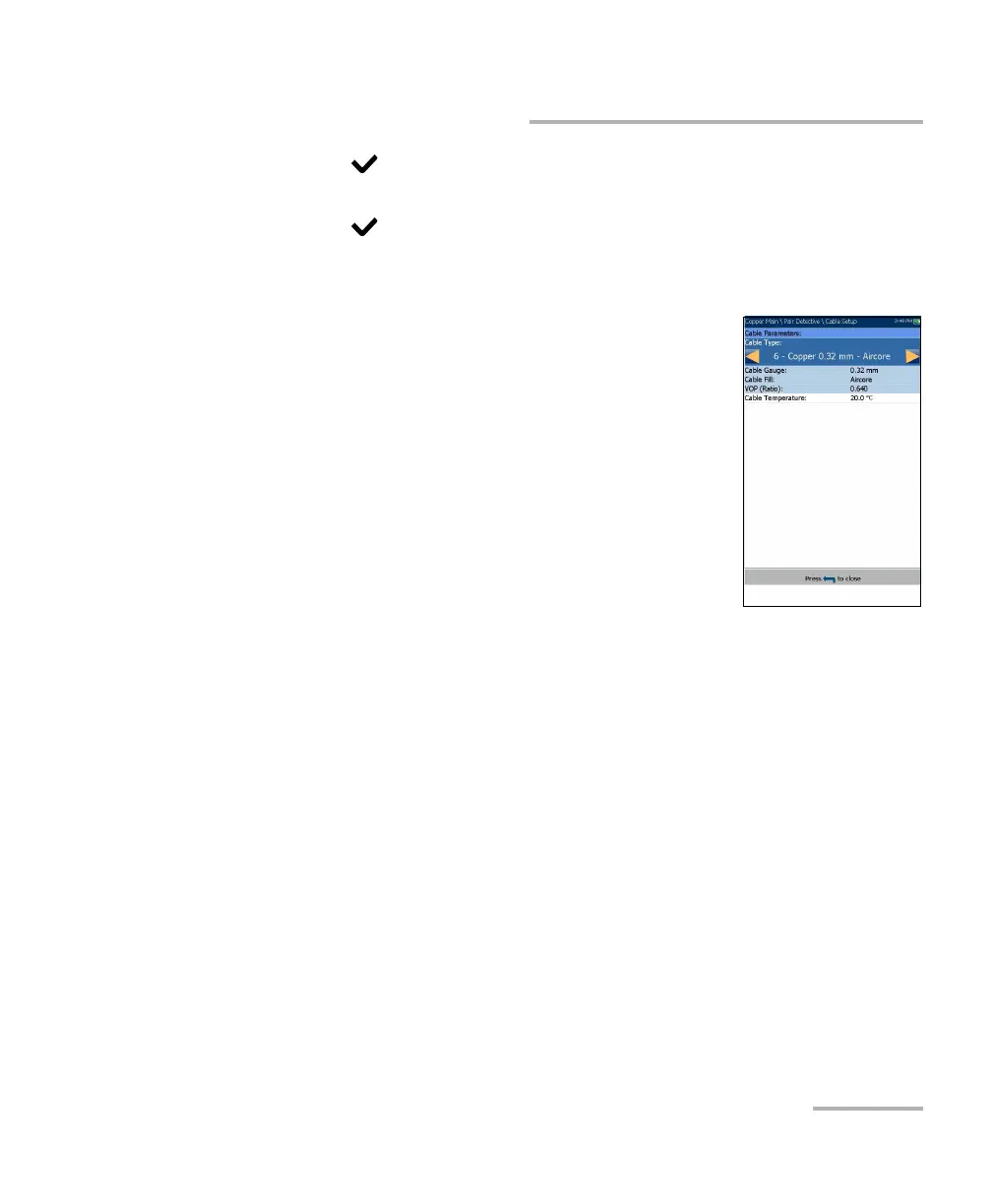

Pair Detective Cable Setup
The Cable Setup page allows you to set Cable
Parameters for the Pair Detective test.
Cable Type displays the ID, Cable Name and Fill,
and allows you to select an entry (with its
associated parameters) from the current Cable
Book, to use for testing. The selection is not saved
when leaving the test. The current Cable Book
entry is shown by default. These cable parameters
affect distance calculations of
Capacitance/Opens and Resistance
measurements, and the TDR cursor distance
indication.
Cable Gauge identifies the gauge system for measuring wire sizes in
AWG (American Wire Gauge) units or mm (metric wire size).
Cable Fill read-only entry is the type of material the cable is filled with:
Aircore, Jelly,Pulp, 5 PR, or 2 PR. Setup in the Cable Book. This value
affects Capacitance/Opens distance calculations.
VOP read-only entry is the velocity of propagation for the cable defined
as m/μsec (meters per microsecond), a ratio, or percentage of the
speed of light. Setup in the Cable Book, this value changes the
distance shown at the cursor.
Cable Temperature allows you to change the temperature of the cable
under test in either °F or °C. Temperature primarily affects Resistance
measurements.
