Pair Detective
To set threshold values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press on a value to open the alphanumeric editor screen and use
the navigation keys to scroll through.
3. Press to select each value and use the function keys to complete
your selection.
4. Press to confirm and close your selections.
Multimeter

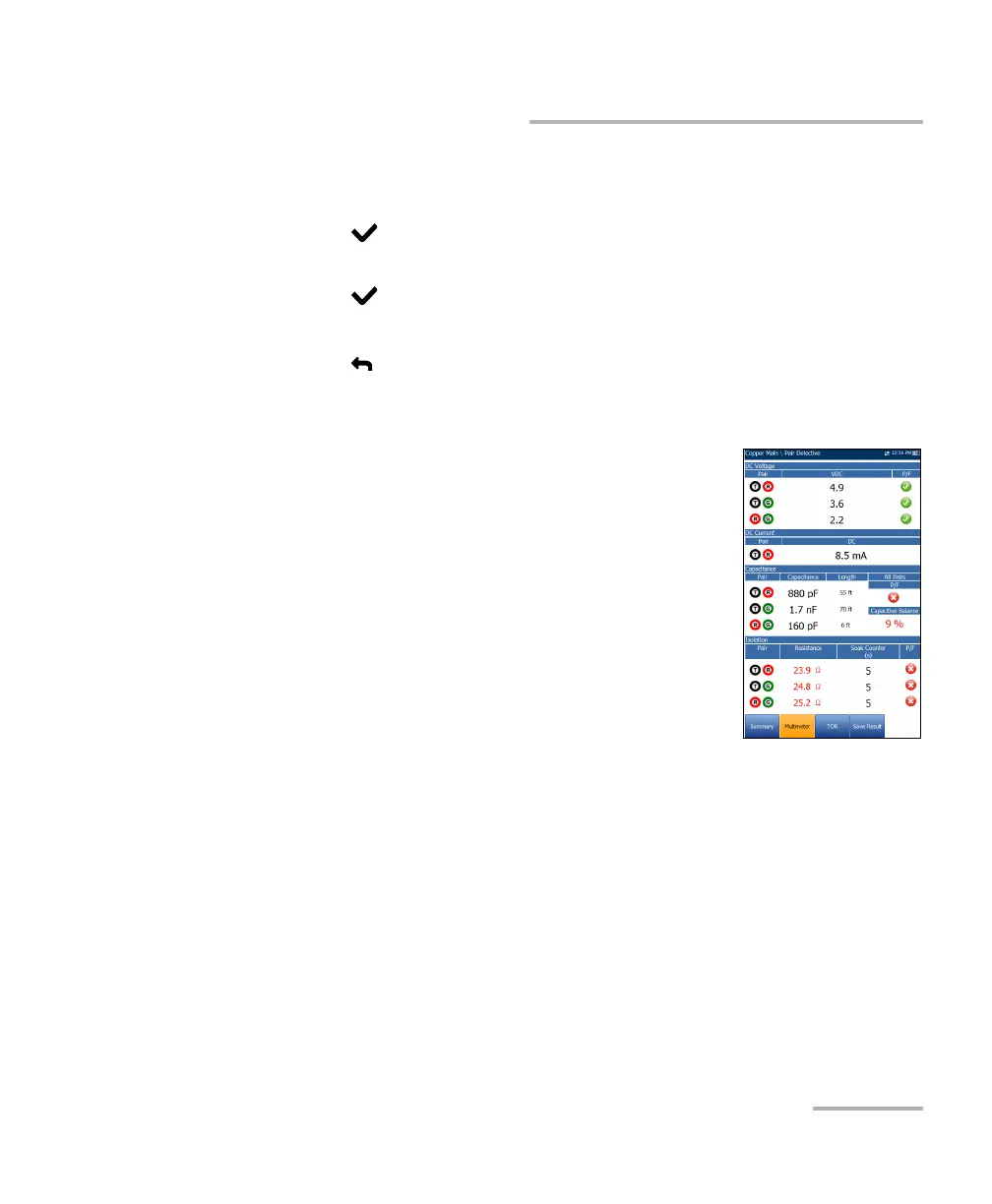

The Multimeter page displays the raw values used by
Pair Detective to identify a fault on the summary
screen. Read-only results and the P/F (pass/fail) status
are shown for the following tests:
DC Voltage displays the volts for each DC Pair.
DC Current displays the DC current results for
T-R/A-B wire Pair.
Capacitance/Opens displays Capacitance and
Length for each wire Pair as well as Capacitive
Balance among All Pairs in %.
Isolation displays Resistance and a Soak Counter for each wire Pair.
