Frequency Tests
Copper and G.fast/VDSL2/ADSL2+ Multi-play Test Set 229
Return Loss
Result displays the pass/fail status, Return Loss and Frequency (TX)
values.
Test Status displays the current state of measurement or an error
message.
To select the parameter values:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press on a value to open a list box of options or the alphanumeric
editor screen and use the navigation keys to scroll through.
4. Press to confirm the value.
Return Loss Threshold Settings

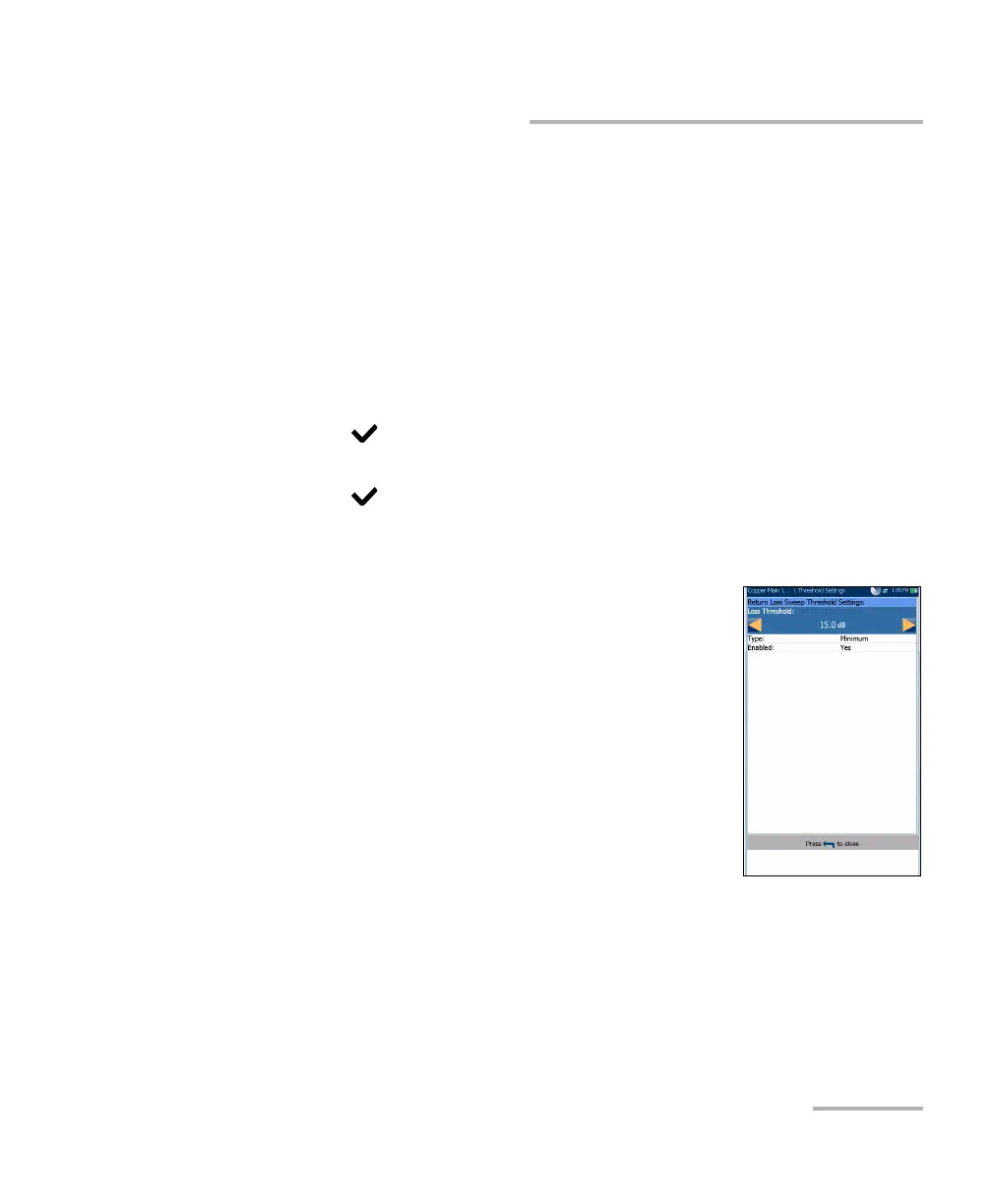

The Return Loss Threshold Settings page allows you
to set the Loss Threshold for each pair. The threshold
is a programmable value you can use as an on-screen
indicator in each test when a measured value is too
high or too low.
Type is the threshold limit for each pair: either
Maximum or Minimum.
Enabled is a flag to use the Return Loss
threshold: either Yes or No. For example, setting
the threshold Enabled to No will disable pass/fail
threshold.
