Frequency Tests
234 MAX-635G
Return Loss

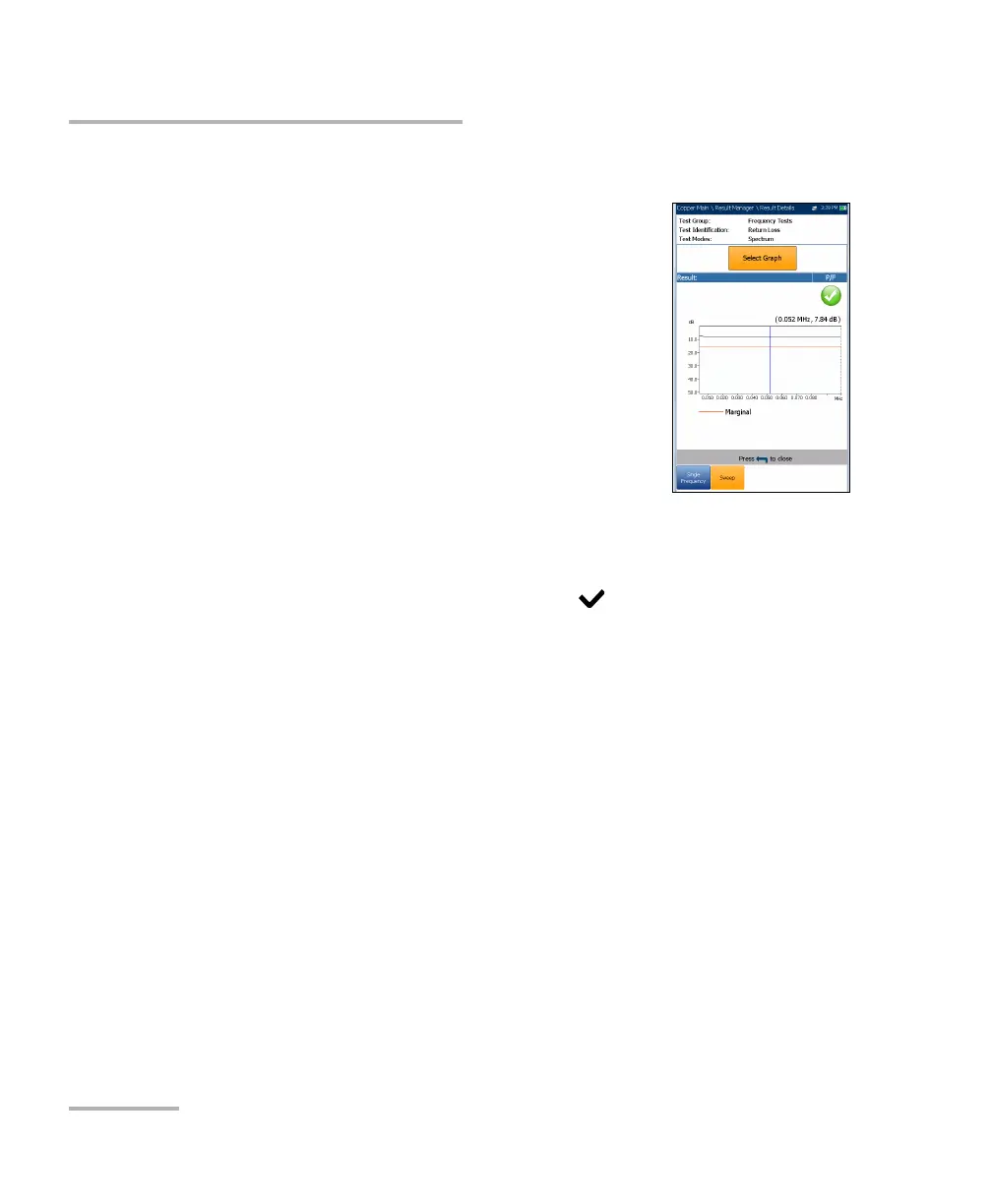

Sweep Result Details
The Sweep Result Details read-only page displays the
pass/fail status and test results in graphical format.
Test Group is the overall test group of the
selected saved results file, for example
Frequency Tests.
Test Identification is the test type of the group, for
example Return Loss.
Test Modes is the mode of test, for example
Sweep.
Select Graph button opens a new selection of
function keys which allow you to maneuver the graph as follows:
Cursor - press the left/right arrow keys to decrease/increase the
values by moving the cursor. Press and hold the left/right arrow
keys to accelerate the cursor. Press to recall the cursor and
place it in the middle of the current x-axis limits.
Zoom references the middle of the x/y axis and not the cursor
position. Press the arrow keys as follows:
Right = x-axis zoom in.
Left = x-axis zoom out.
Up = y-axis zoom in.
Down = y-axis zoom out.
Pan - use left/right arrow keys to pan the x-axis and the up/down
arrow keys to pan the y-axis.
1:1 resets the x-axis and y-axis limits to full scale.
Return To Test removes these function keys and returns to the
Spectrum results page.
