Frequency Tests
Copper and G.fast/VDSL2/ADSL2+ Multi-play Test Set 251
RX Tone with FED
Zoom references the middle of the x/y axis and not the cursor
position. Press the arrow keys as follows:
Right = x-axis zoom in.
Left = x-axis zoom out.
Up = y-axis zoom in.
Down = y-axis zoom out.
Pan - use left/right arrow keys to pan the x-axis and the up/down
arrow keys to pan the y-axis.
1:1 resets the x-axis and y-axis limits to full scale.
Return To Test removes these function keys and returns to the test
results page.

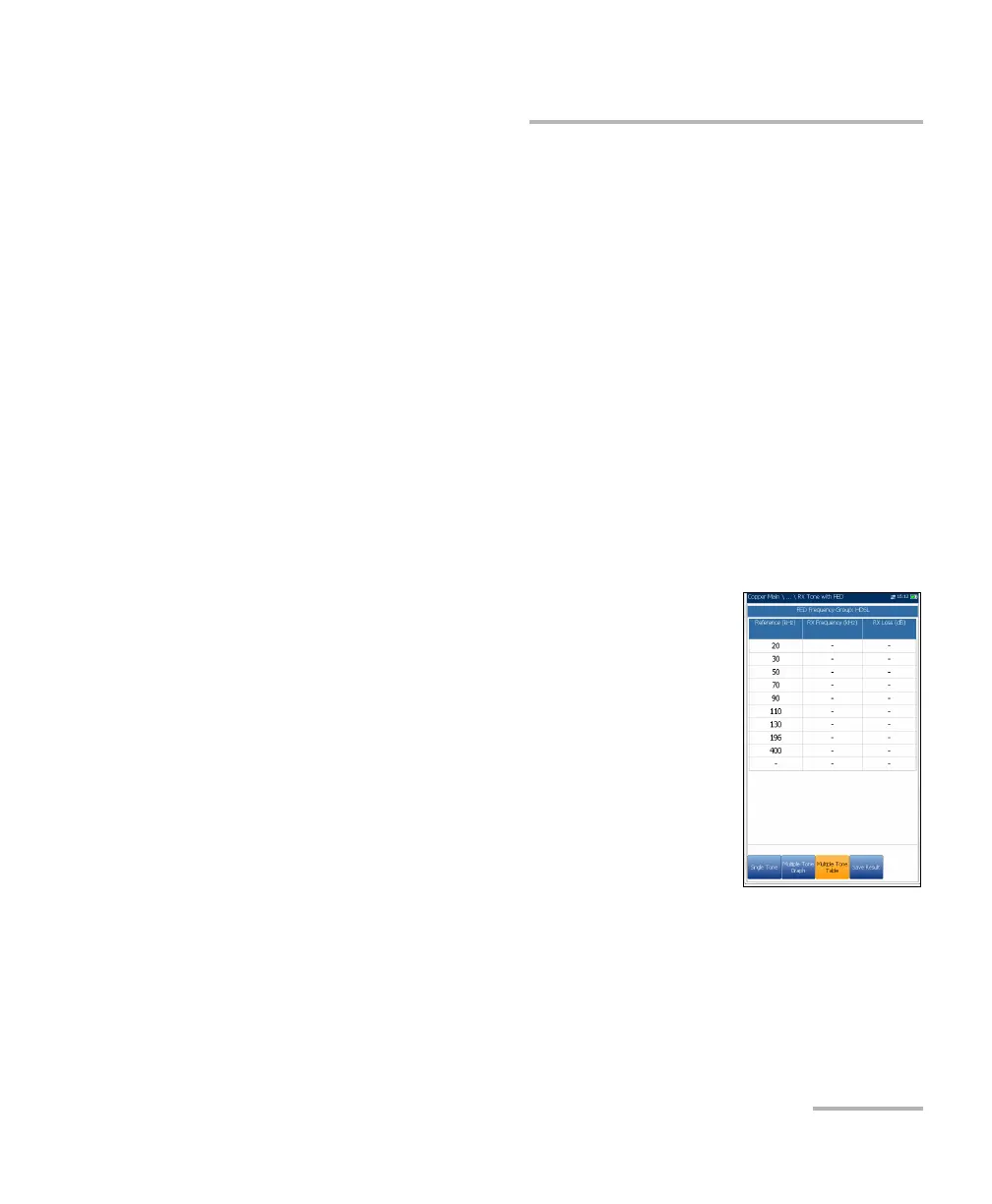

Multiple Tone Table
The Multiple Tone Table displays the RX
Frequency/Loss for the FED Frequency Group
selected.
for VF Receive Tone:
POTS/PSTN: 404, 804, 1004, 1204, 1804, 2204,
2404, 2804, 3204, 3404 Hz
VF 5 Tone: 404, 1004, 2804, 3004, 3604 Hz
for WB Receive Tone:
HDSL: 20, 30, 50, 70, 90, 110, 130, 196, 400 kHz
T1/E1: 200, 400, 500, 700, 772, 1024 kHz
ADSL1/2+: 25, 69, 90, 110, 138, 300, 550, 800, 1104, 2208 kHz
VDSL2-12: 25, 138, 276, 3000, 3750, 5200, 8500, 12000 kHz
WB 5 Tone: 196, 392, 772, 1100, 2200 kHz
