TDR
278 MAX-635G
Result Details

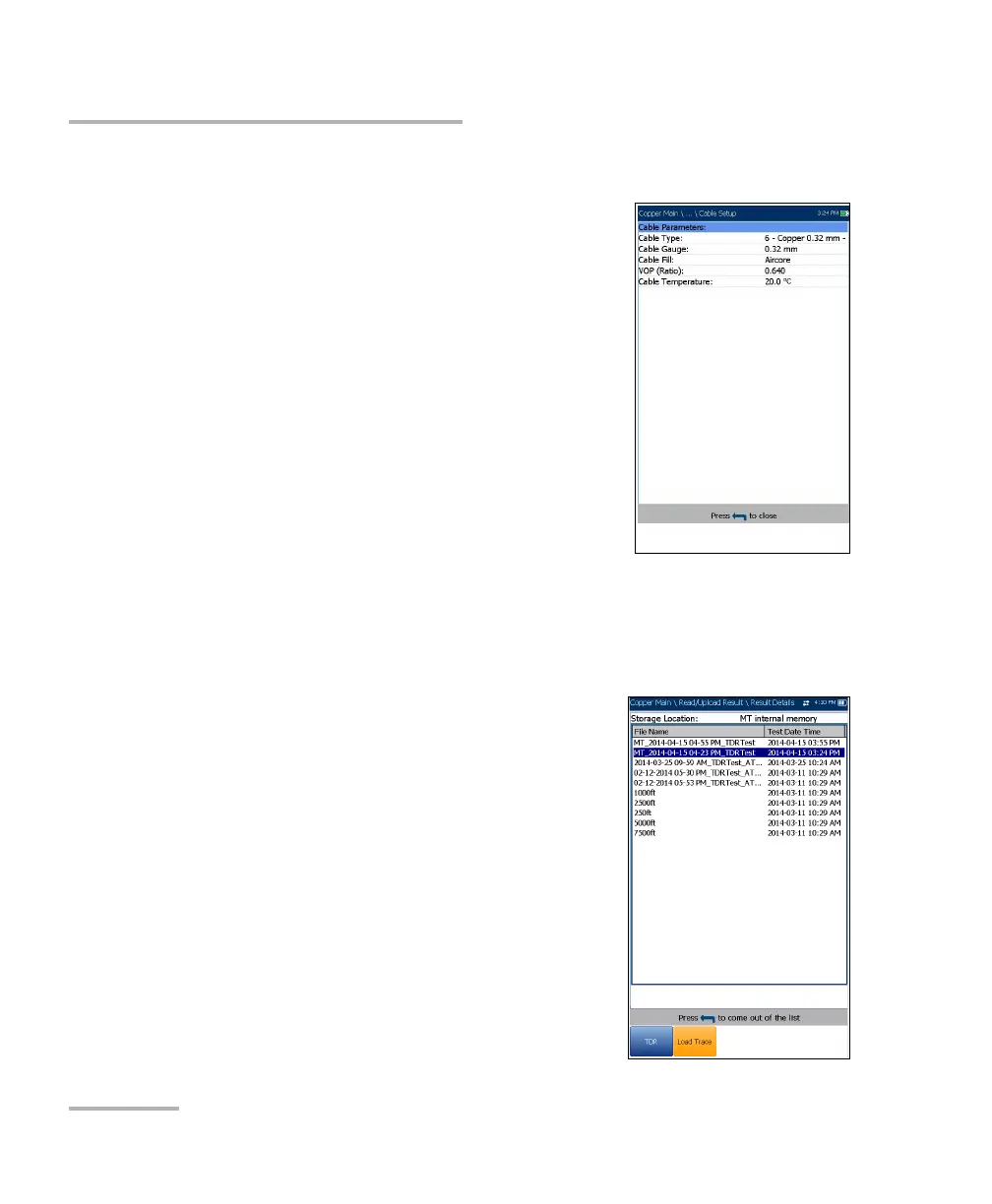

Cable Setup
The Cable Setup page allows you to view the
Cable Parameters set for the TDR test.
Cable Type displays the ID, Cable Name and
Fill, with its associated parameters from the
current Cable Book.
Cable Gauge identifies the gauge system for
measuring wire sizes, in AWG (American
Wire Gauge) units or mm (metric wire size).
Cable Fill is the type of material the cable is
filled with: Aircore, Jelly, Pulp, 5 PR, or 2 PR.
Setup in the Cable Book.
VOP is the velocity of propagation defined as
m/μsec (meters per microsecond), a ratio, or
percentage of the speed of light for the cable.
Cable Temperature is the temperature of the cable under test in either
°F or °C.
Load Trace
The Load Trace function in the Results Details is
the same as previously described. Please see
Load Trace on page 273 for more information.
