Copper Auto Tests
312 MAX-635G
User Auto Test

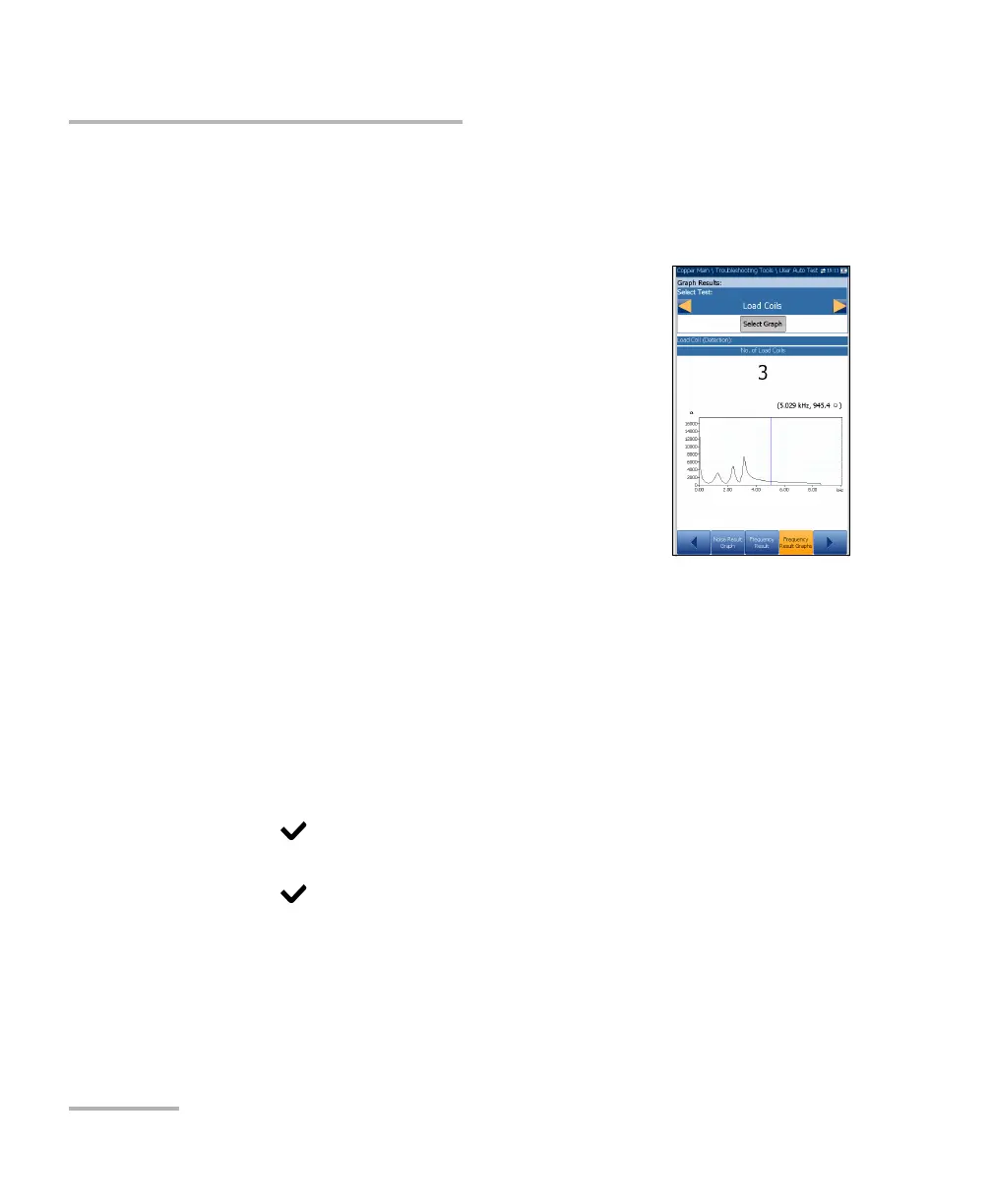

Frequency Result Graphs
The Frequency Result Graphs page displays the results in text and
graphical format for the following frequency tests:
WB Balance displays pass/fail status, and mask if
the last selected threshold parameter was set to
Mask.
WB Attenuation displays pass/fail status, mask if
the last selected threshold parameter was set to
Mask, and values for:
Cable Length
Elapsed Time (M:SS)
Load Coil (Detection) displays the number of
load coils.
Return Loss displays the pass/fail status and a graph of the Return
Loss Sweep compared to Marginal results. If the measurement is
greater/less than the marginal test threshold, represented by a
horizontal red line, the status is fail. Otherwise, the status is pass.
To select a test:
1. In the Select Test parameter, press the left/right arrow keys to view and
select the options.
OR
2. Press on a value to open a list box of options and press the
up/down arrow keys to highlight the desired test.
3. Press to confirm the test.
