Setting Up Copper Tests
Copper and G.fast/VDSL2/ADSL2+ Multi-play Test Set 57
Test Configuration

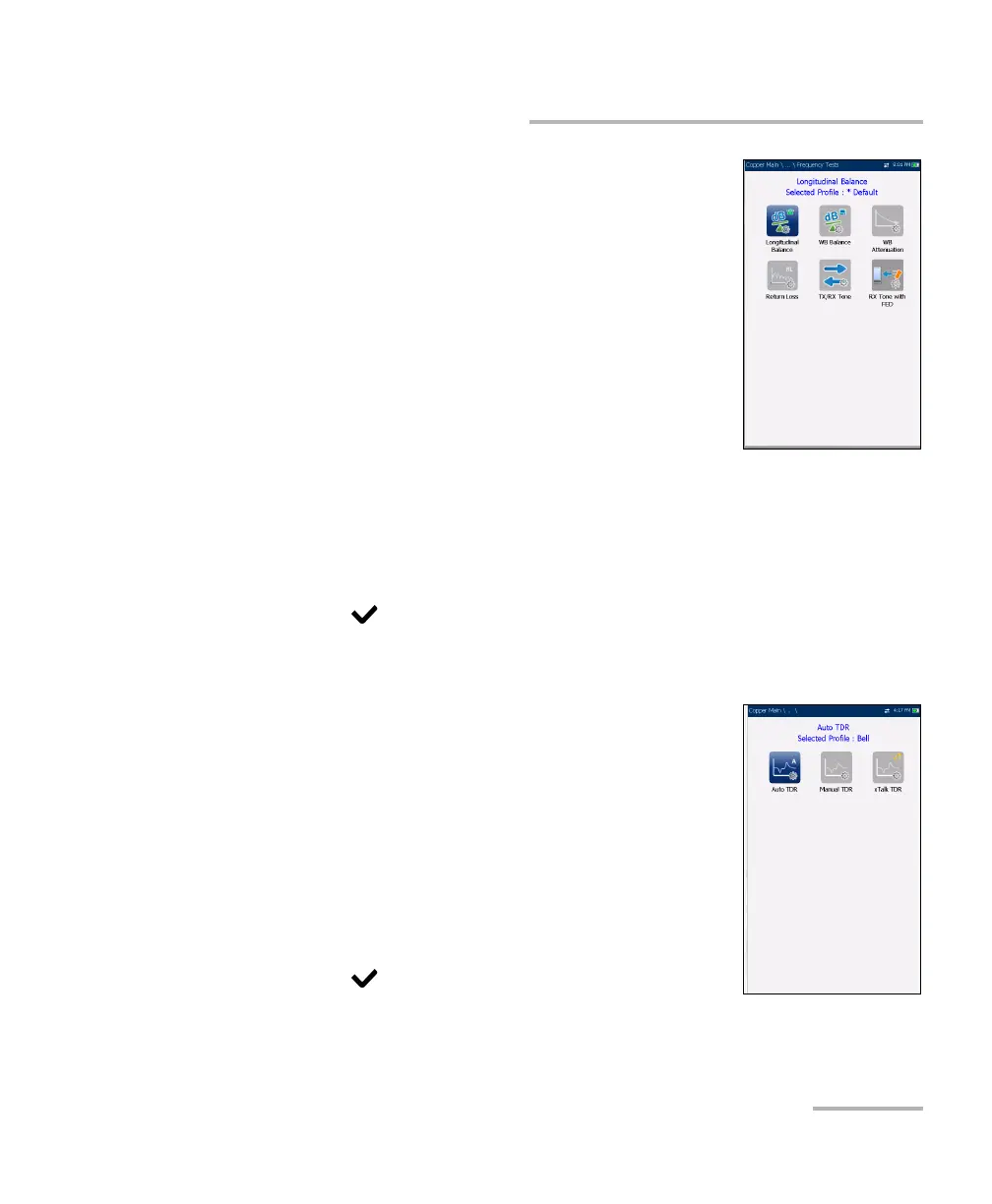

Frequency Tests Profile Details
The profile details Frequency Tests main menu
allows you to view the test threshold and parameters
of the following tests:
 VF/AC Balance
 WB Balance
 WB Attenuation
 Return Loss
 TX/RX Tone
 RX Tone with FED
To navigate between the test profiles:
1. Press the up/down left/right arrow keys on the keypad to select an
icon.
2. Press to confirm your selection.
TDR Profile Details
The profile details TDR menu allows you to select and
view the parameters set for the following tests:
 Auto TDR
 Manual TDR
 xTalk TDR
To navigate between the test profiles:
1. Press the left/right arrow keys on the keypad to
select an icon.
2. Press to confirm your selection.
