Setting Up Copper Tests
74 MAX-635G
Cable Book
UKCableBook
FranceCableBook
Cable # in Use displays the ID number of the cable in use.
Cable Book Version displays the current edition number of the Cable
Book in use.
To select a cable in use:
1. Press the up/down arrow keys to highlight the desired entry and
press . The Cable # in Use is updated with the current selection
displaying Cable Details.
OR
2. Press to cancel your selection and go back to the Cable Book
menu.

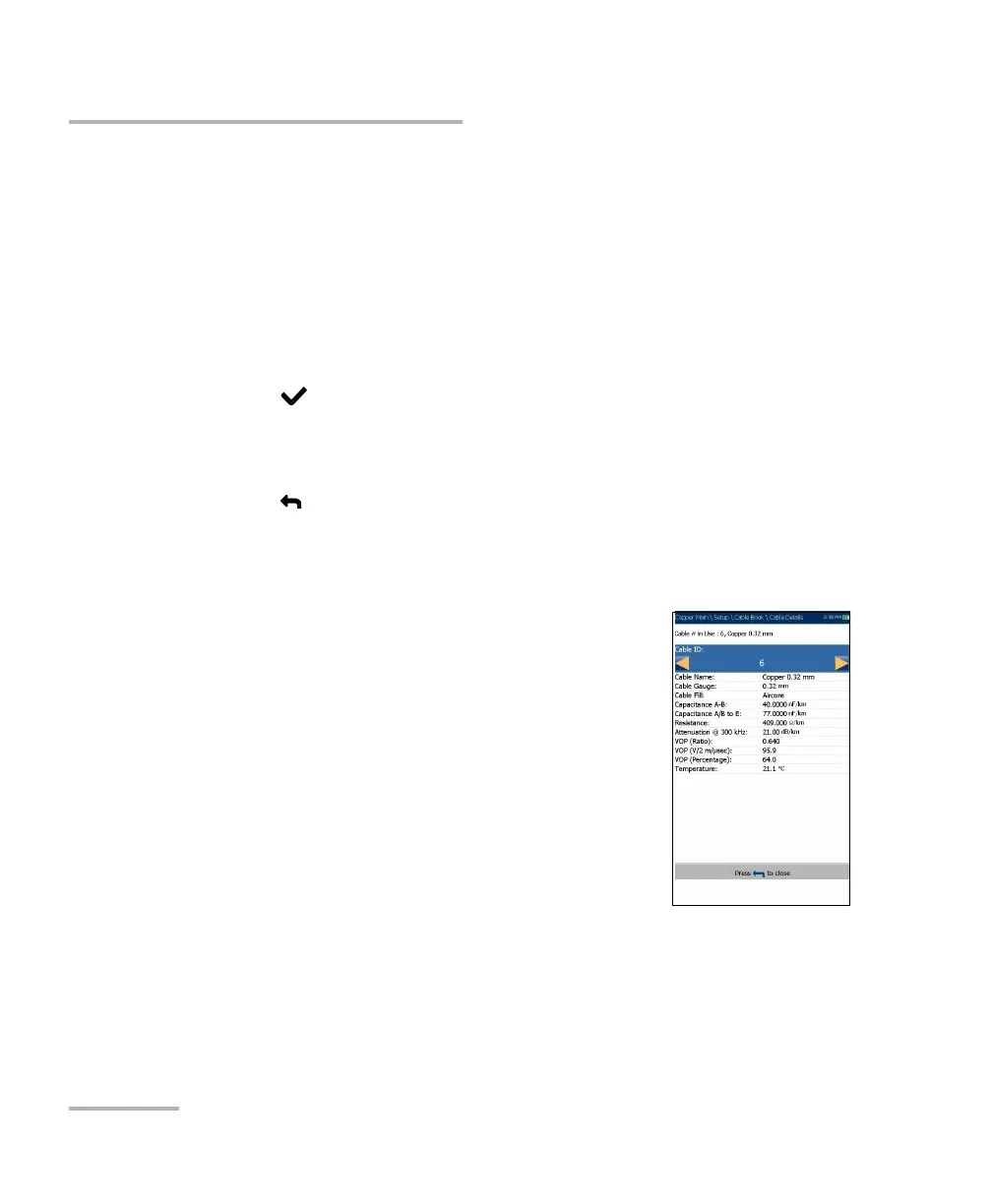

Cable Details
The Cable Details page allows you to view the
parameter details of the Cable # in Use, or select a
Cable ID number by pressing the left/right arrow keys
on the keypad and view its details. You can only
modify cables from the CableBookSettings book.
Cable Name is the name of the cable in the
Cable Book.
Cable Gauge is the gauge system for measuring
wire sizes in AWG (American Wire Gauge) units
or mm (metric wire size).
Cable Fill is the type of material the cable is filled
with: Aircore, Jelly, Pulp, 5 PR, or 2 PR.
Capacitance T-R/A-B specifies a value for the capacitance per length
constant.
To Next Page
