Preferences menu
Immediate changes — Causes configuration changes to take
effect immediately.
Hold/verify changes —
Delaysimplementationof
congurationchangesuntiltheChanges–Take button
is pressed.
Ties as lines —
Displaystiesaslines(gure5-16).

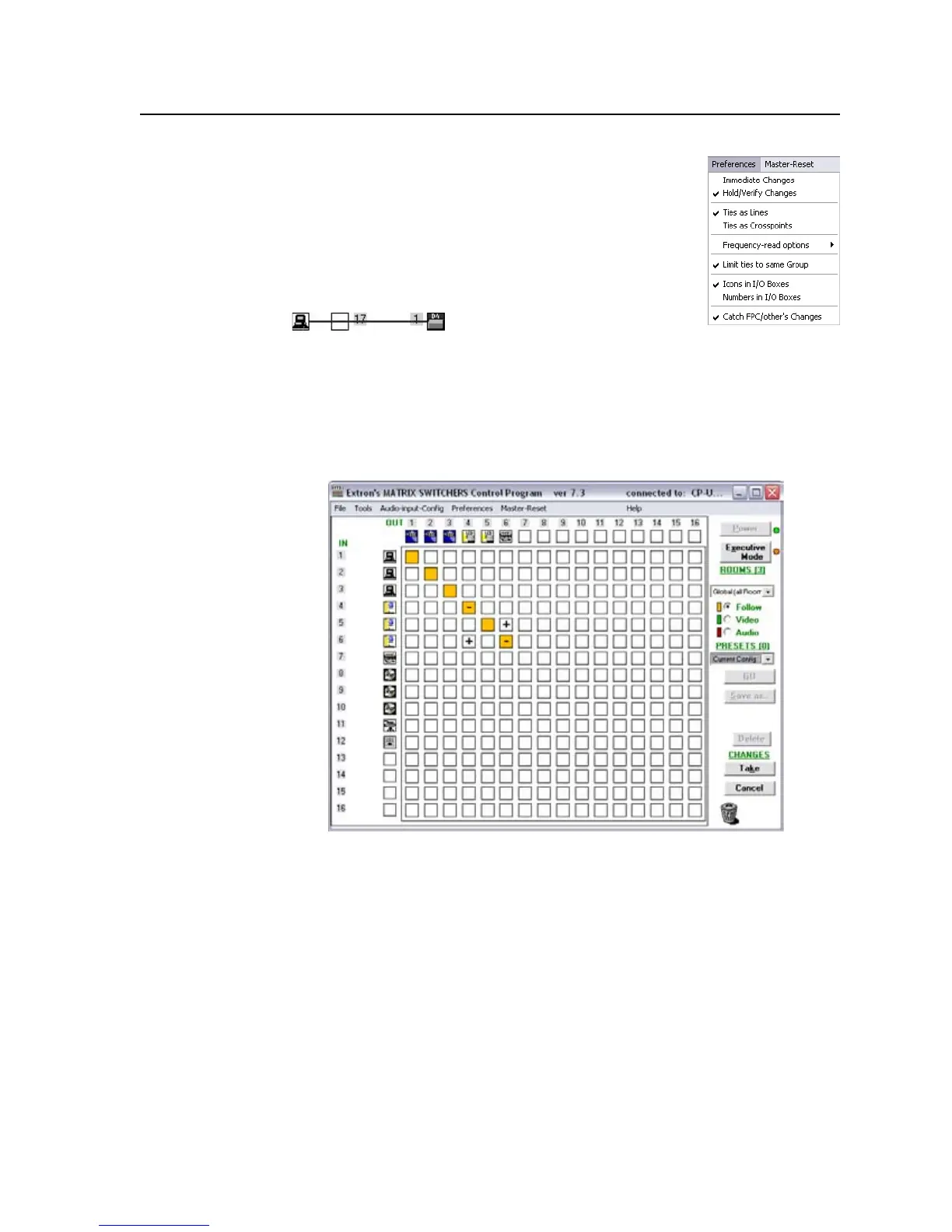

Figure 5-16 — Ties shown as lines
Ties as crosspoints —Displaystiesasagridofinputsandoutputs(gure5-17).
Ties that have been made are indicated as amber (video and audio), green
(video only), and red (audio only) boxes. Ties that will take effect when you
click the Take
buttonareindicatedby+.Tiesthatwillbebrokenwhenyou
click the Takebuttonareindicatedby–.
Figure 5-17 — Ties shown as crosspoints
Frequency read options(CrossPointonly)— Allows you to set the input signal
detection(DSVP)featureasfollows:
• Toneversampleanddisplaythesyncornosyncstatus
(set this option to None)
• Toautomaticallyrefreshthedisplay
(set this option to Automatically every 10 seconds)
• Tosamplethesyncandupdatethedisplaywheneveryoumakea
configuration change (set this option to On demand or by refresh).
Limit ties to same group — Allows you to limit the creation of ties using the
program to inputs and outputs that are in the same group (similar to front
panel operation).
