3-29
CrossPoint / MAV Matrix Switchers • Operation
Example 6: Setting the RGB delay for an output
Inthefollowingexample,theRGBdelayisincreasedforoutput17.Thestepsshow
the front panel indications that result from your action.
1
. PressandreleasetheEscbutton(gure3-37).
C O N T R O L
PRESET ENTER
ESCVIEW
Press the Esc button to clear all selections.
The button flashes once.

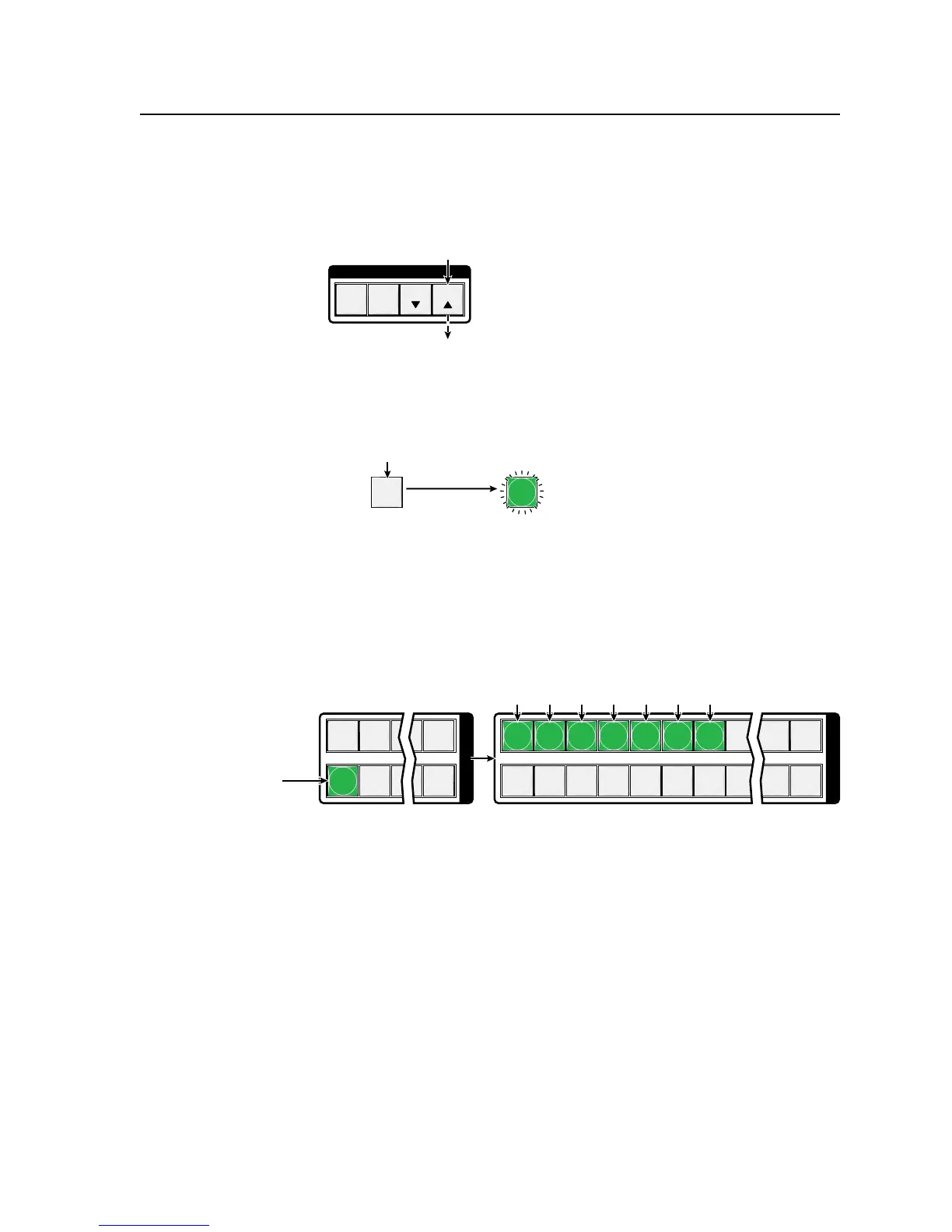

Figure 3-37 — Clear all selections
2. PressandholdtheRGBHVbuttonforapproximately2seconds(gure3-38).
RGBHV RGBHV
Press and hold the RGBHV
button until it blinks.
2 seconds
Figure 3-38 — Select RGB Delay mode
3
. PressandreleasetheOutput17button(gure3-39).
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
1 2 5 16
17 18 11 32
I
N
P
U
T
S
O
U
T
P
U
T
S
Press and release the
Output 17 button.
The button lights green.
The input buttons 1 through 10 display the selected
output's RGB delay.
Each lit input button indicates half a second of delay.
In this example, the lit input buttons display 3.5
seconds of RGB delay.
3.53.02.52.01.51.00.5
Figure 3-39 — Select an output
N
The RGB delay is protected when front panel lock mode 2 is selected. You
can view the delay in lock mode 2, but not change it from the front panel. See
“Setting the front panel Locks (Executive modes)” on page 3-52.
If front panel lock mode 2 is selected and you try to perform steps 4, the actions
are ignored and the Enter, RGBHV, and Audio buttons flash.
