2-21
CrossPoint / MAV Matrix Switchers • Installation
Front Panel Configuration Port (All Matrix Sizes up to
1616, and MAV Plus 248A and MAV Plus 328A Only)
AUDIO
VIDEO
I/O
CONTROL
ENTERPRESET
VIEW
ESC
CONFIG
ULTRA-WIDEBAND MATRIX SWITCHER WITH ADSP
™
CROSSPOINT ULTRA SERIES
13

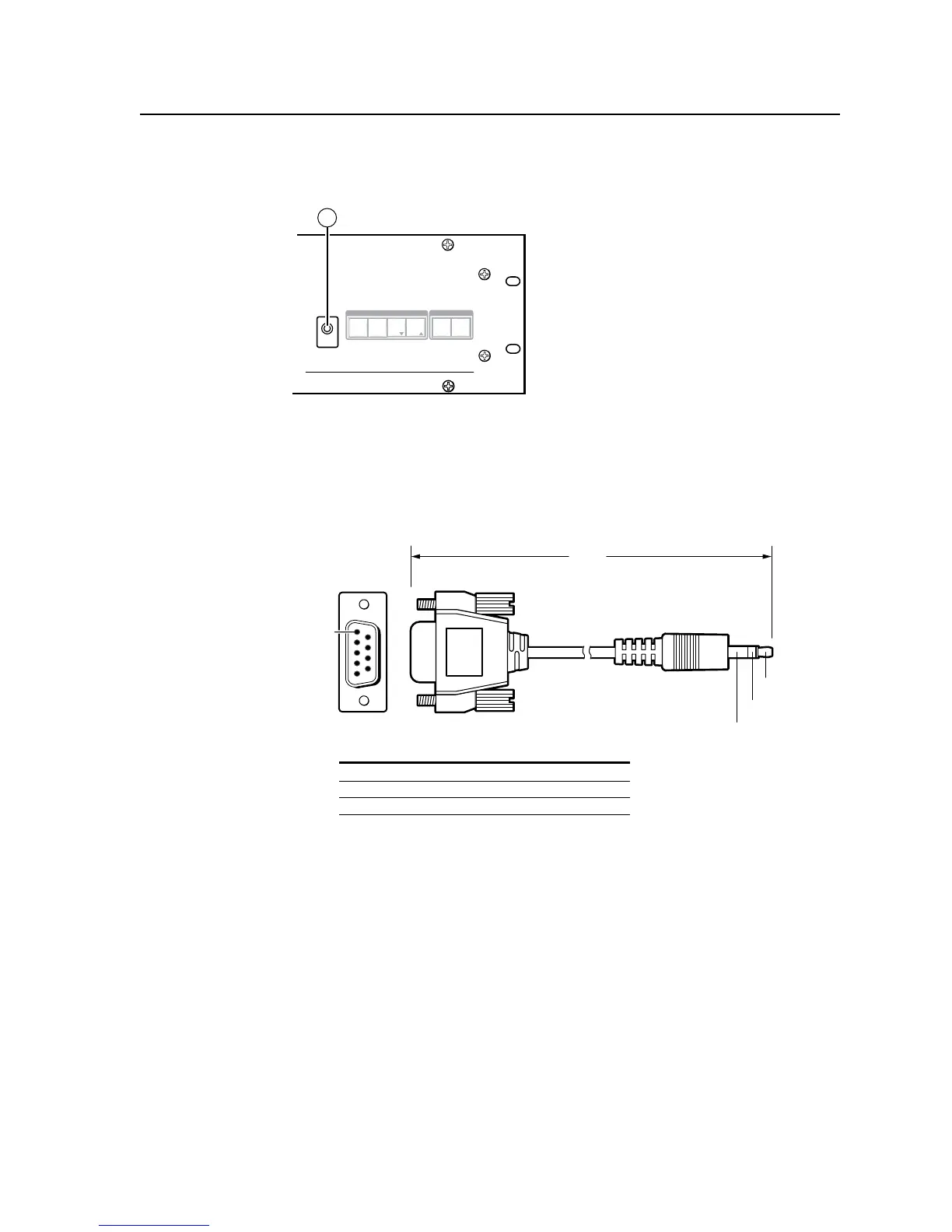

Figure 2-25 — Front panel configuration port
m
Configuration port — This 2.5 mm mini stereo jack serves the same serial
communicationsfunctionastherearpanelRS-232/RS-422port,butitis
easier to access than the rear port after the matrix switcher has been installed
andcabled.Theoptional9-pinDto2.5mmminijackTRSRS-232cable,
part #70-335-01(gure2-26),canbeusedforthisconnection.
6 feet
(1.8 m)
Part #70-335-01
5
1
9
6
Sleeve (Gnd)
Ring
Tip
9-pin D Connection TRS Plug
Pin 2 Computer's RX line Tip
Pin 3 Computer's TX line Ring
Pin 5 Computer's signal ground Sleeve
Figure 2-26 — Optional 9-pin TRS RS-232 cable
N
This port is independent of the rear panel RS-232/RS-422 port and is not
affected by changes to the rear panel port’s protocol. This front panel port’s
protocol can be changed, under SIS command control only. See the Command/
Response table for IP SIS commands, in chapter 4, “Programmer’s Guide”, to
configure all ports under SIS control.
