3-21
CrossPoint / MAV Matrix Switchers • Operation
Example 4: Viewing video and audio, audio only, and video only ties
Inthefollowingexample,weviewthevideoandaudio,audio-only,andvideo-only
ties in the current configuration. The steps show the front panel indications that
result from your action.
N
This example assumes that you have performed example 1, example 2, and
example 3.
1

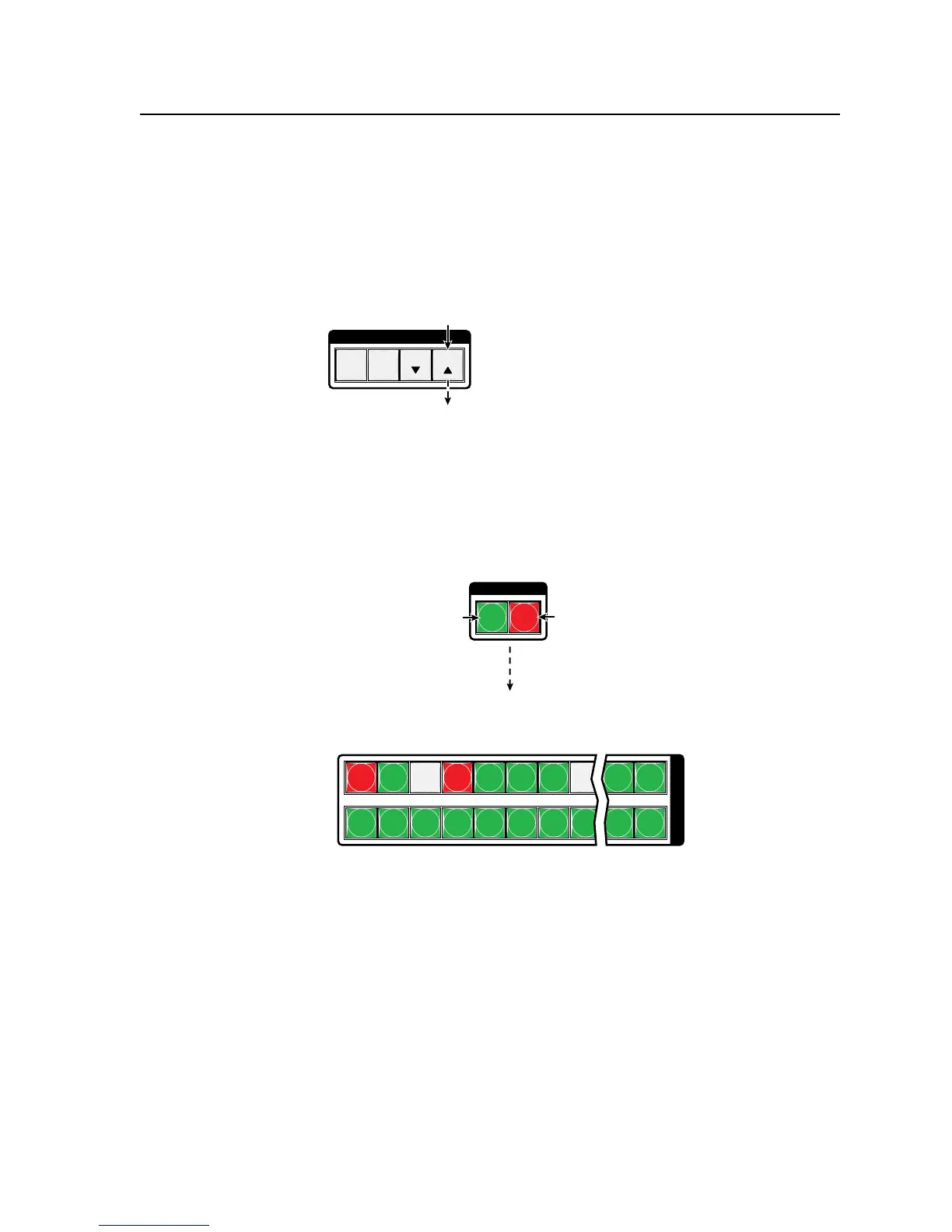

. PressandreleasetheEscbutton(gure3-23).
C O N T R O L
PRESET
ENTER
ESCVIEW
Press the Esc button to clear all selections.
The button flashes once.
Figure 3-23 — Clear all selections
2. PressandreleasetheViewbuttontoenterView-only mode. The View button
lights red.
3
. To select both video and audio for viewing, if necessary, press and release the
RGBHV(CrossPointswitchers)orVideo(MAVPlusswitchers)buttonandthe
Audiobutton(gure3-24).
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
O
U
T
P
U
T
S
I / O
VIDEO AUDIO
Until you select an input, the buttons for all untied
outputs light amber if no inputs are tied, green if
no video inputs are tied (only audio is tied), or
red if no audio inputs are tied (only video is tied).
Press the Audio button
to toggle on and off.
The button lights red
when selected.
Press the RGBHV/ Video
button to toggle on and off.
The button lights green
when selected.
Figure 3-24 — Select RGBHV or video and audio
