Operation, cont’d
CrossPoint / MAV Matrix Switchers • Operation
3-32
Example 7: Saving a preset
Inthefollowingexample,thecurrentcongurationissavedasapreset.Thesteps
show the front panel indications that result from your action.
1
. PressandreleasetheEscbutton(gure3-43).
C O N T R O L
PRESET
ENTER
ESCVIEW
Press the Esc button to clear all selections.
The button flashes once.
Figure 3-43 — Clear all selections
2. PressandholdthePresetbuttonforapproximately2secondsuntilitblinks
(gure3-44).
PRESET PRESET
1 2 3 4 15 16
17 18 19 20 31 32
I
N
P
U
T
S
Press and hold the Preset button until it blinks.
2 seconds
All input buttons with assigned
presets light.
If you then save the configuration
to a lit preset number, the
configuration data at that preset
location will be overwritten.
Preset Assigned
No Preset Assigned
Figure 3-44 — Enter Save Preset mode
3
. Pressandreleasetheinputoroutputbuttonforthedesiredpreset
(gure3-45).
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
I
N
P
U
T
S
C O N T R O L
PRESET
ENTER
ESCVIEW
•
•
•
The Enter button blinks
to indicate the need to
save the preset.
The Preset button
continues to blink.

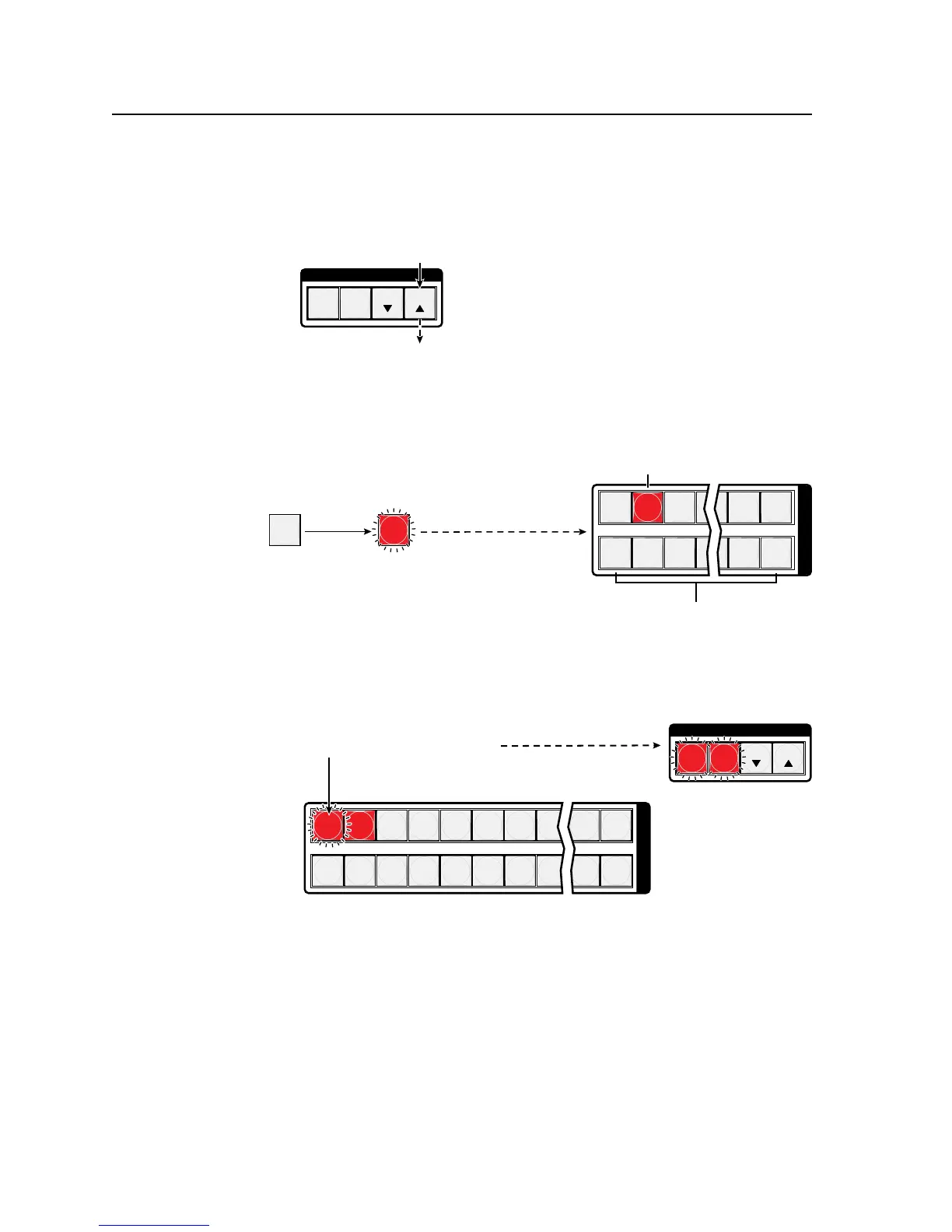

Press and release the Input 1 button.
The button blinks to indicate that this
preset number is selected but not saved.
Figure 3-45 — Select the preset
N
Figure 3-42 on page 3-31 shows the presets associated with the various input
and output buttons for all three front panel configurations.
