CrossPoint / MAV Matrix Switchers • Installation
Reset button
j
Reset button — The Reset button initiates various levels of reset to
the matrix switcher. Press and hold the button while the switcher
is running or while you power up the switcher for different reset
levels.

See “Rear panel Operations” in chapter 3, “Operation”, for details.
N
The CrossPoint 450 Plus and MAV Plus 2412, 2424, 3216, and 3232 do not
have the Reset LED shown in the figure at right.
External sync (MAV Plus video models)
The MAV Plus switcher switches between inputs during the vertical interval
period, resulting in glitch-free video switching. The MAV switcher can use an
external signal to synchronize switching during the vertical interval. Without the
external sync locking feature, switching between inputs can result in a brief rolling
(sync loss) or a brief change in the picture size.
k
Ext(ernal) Sync connector — Connect an external sync signal to this BNC
connection for genlocking the video signal in broadcast or other sync-critical
applications.

Figure 2-23 shows a basic external sync configuration. The Ext Sync connector
receives the timing signal. A tee connector on the connector allows the
signal to be passed on to another video device, if required. Terminate the tee
connector if desired.
POWER
12V
0.5A MAX
L R
1
4
3
2
1
6
5
PAL
NTSC
BLACKBURST
BLACKBURST/
COLORBAR
-10dBV
+4dBu
1 2 3
ON
1 KHZ AUDIO
BBG 6 A
BLACK BURST/COLOR BAR
/AUDIO GENERATOR
EXT
SYNC
ETHERNET
REMOTE
RS232/RS-422
LINK
ACT
Terminate cable or
connect to another device.
Connect to
MAV Plus AV 3232.
Tee-connector
OUT
Extron
MAV Plus 3232
Matrix Switcher
RESET
Extron
BBG 6 A
Black Burst Color Bar
Audio Generator

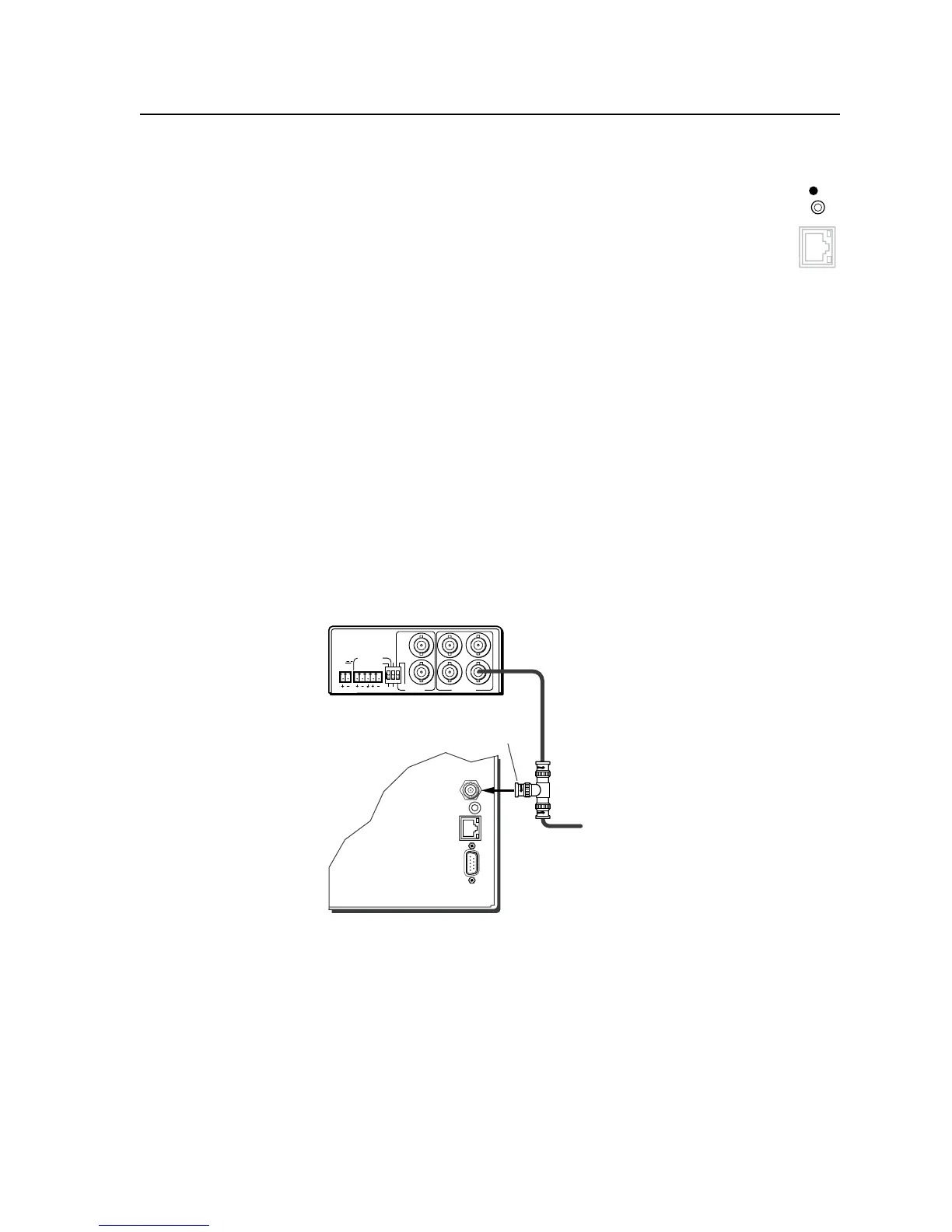

Figure 2-23 — Simple external sync connection example
RESET
LAN
