Figure2-12showsaMAVPlus248Aaudiomatrixswitcher(audiononly).
N
The MAV Plus 328 is housed in the same 3U enclosure, but has more input
connectors to accommodate its largerer matrix sizes.
INPUTS
OUTPUTS
L
1
RL LR
2
L
3
R
4
R
5
LR
6
LRLR
7
RL
8
L
17
RL LR
18
L
19
R
20
R
21
LR
22
LRLR
23
RL
24
L
9
RL LR
10
L
11
R
12
R
13
LR
14
LRLR
15
RL
16
L
1
RL LR
2
L
3
R
4
R
5
LR
6
LRLR
7
RL
8
LISTED
1T23
I.T.E.
C
U S
RESET
LAN
LINKACT
RS232/RS422
REMOTE
12
8
9
10
4
5
RESET
LAN

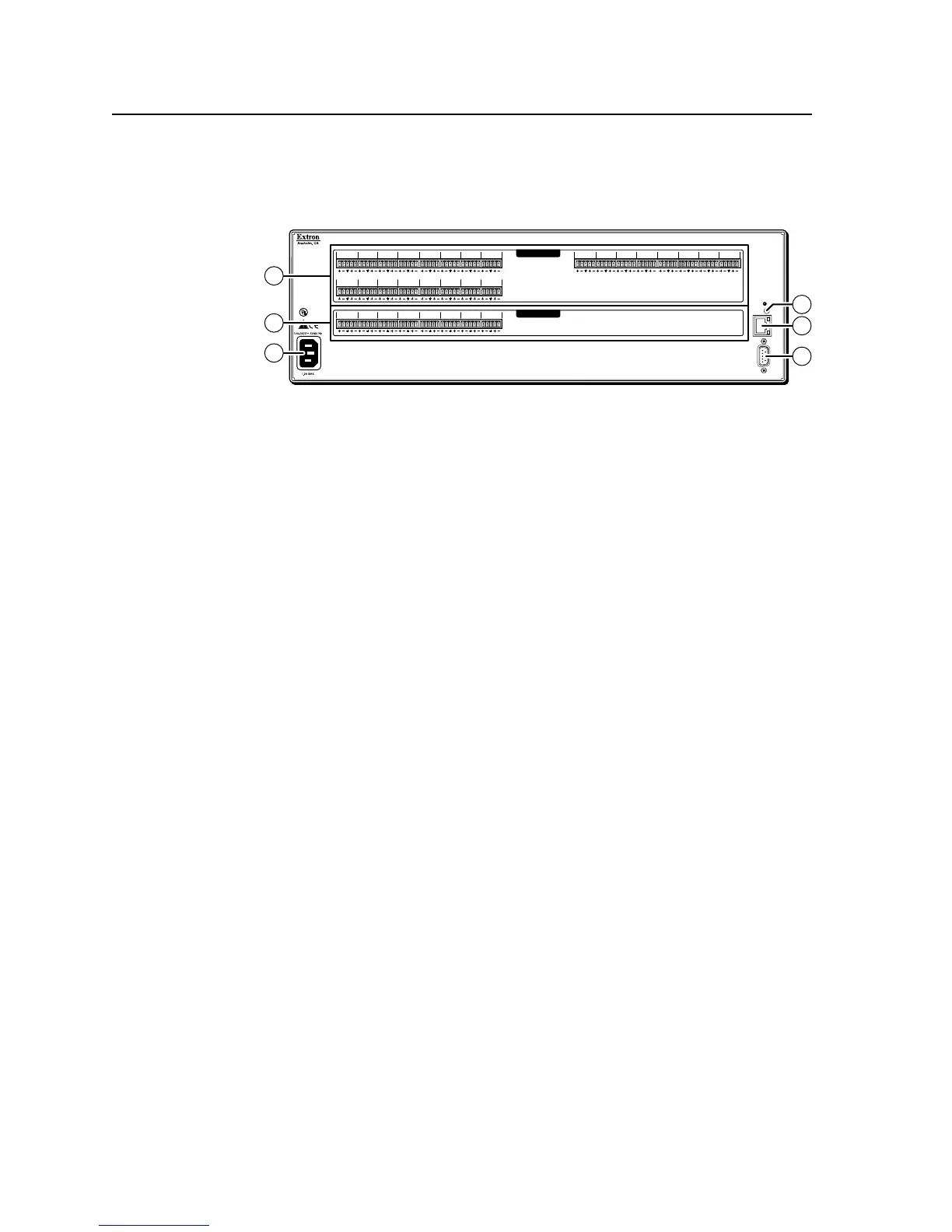

Figure 2-12 — MAV Plus 328 A matrix switcher
Rear Panel Connections
C
Use Electrostatic discharge (ESD) precautions (be electrically grounded)
when making connections. Electrostatic discharge can damage equipment,
even if you cannot feel, see, or hear it.
C
Remove system power before making all connections.
Video input and output (video switchers)
N
The switchers do not alter the video signal in any way. The signal output by the
switcher is in the same format as the input.
RGBHV (CrossPoint switchers)
Theswitchercanconnecttouptoasmanyas32(CrossPoint450Plus)or16
(CrossPointUltra)RGBHVvideosources,dependingonthemodel.Theswitcher
canoutputtoasmanyas32or16RGBHVvideodevices,dependingonthemodel.
N
On all CrossPoint 450 Plus switchers and CrossPoint Ultra matrix sizes of
8 x 16 and larger, the connectors for each video plane are grouped together (all
of the red inputs grouped together, all of the green inputs grouped, and so on).
Ensure that you connect the input on each video plane to the corresponding
connector in the correct group (see figure 2-13).
N
Both CrossPoint models can also switch RGBS, RGsB, RsGsBs, component
video, S-video, or composite video by using four, three, two, or one BNC(s). If
switching a video format other than RGBHV, ensure that the same video planes
(R, G, B, H/HV, or V) are used on the switcher output as on the input.
a
Video inputs—ConnectRGBvideo,component/HDTVvideo,S-video,
or composite video inputs, as applicable, to these BNC connectors for each
input. Figure 2-13 shows how to connect the RGB video format to each
configuration.
b
Video outputs —ConnectRGBvideo,component/HDTVvideo,S-video,
or composite video displays, as applicable, or other devices to these BNC
connectors for each output. Figure 2-13 shows how to connect the RGB video
format to each configuration.
