Extron electronics CrossPoint 450 Plus Series - Mounting.instructions

2-3
CrossPoint / MAV Matrix Switchers • Installation
Mounting instructions
1. Inserttheswitcherintotherack,aligningtheholesinthemountingbracket
with those in the rack (figure 2-1).
2
. Securetheswitchertotherackusingthesuppliedbolts.

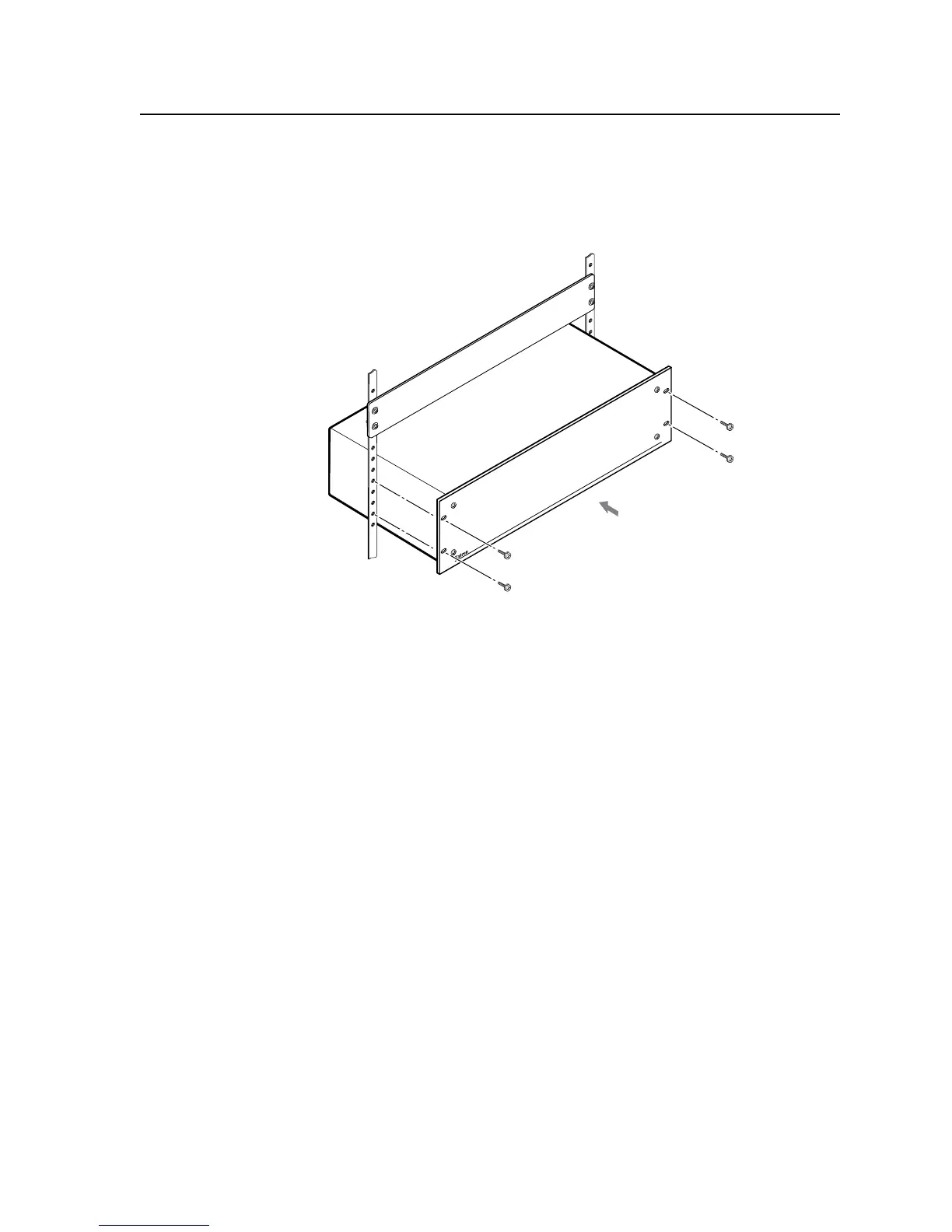

Figure 2-1 — Installing the switcher in a rack
