Extron electronics CrossPoint 450 Plus Series - Using.the.button.label.generator.software

Matrix Software, cont’d
CrossPoint / MAV Matrix Switchers • Matrix Software
5-24
Using the Button Label Generator software
1. To run the Button Label Generator program, click Start>Programs>Extron
Electronics>Button Label Generator>Button Label Generator. The
Button Label Generator window appears (figure 5-19).

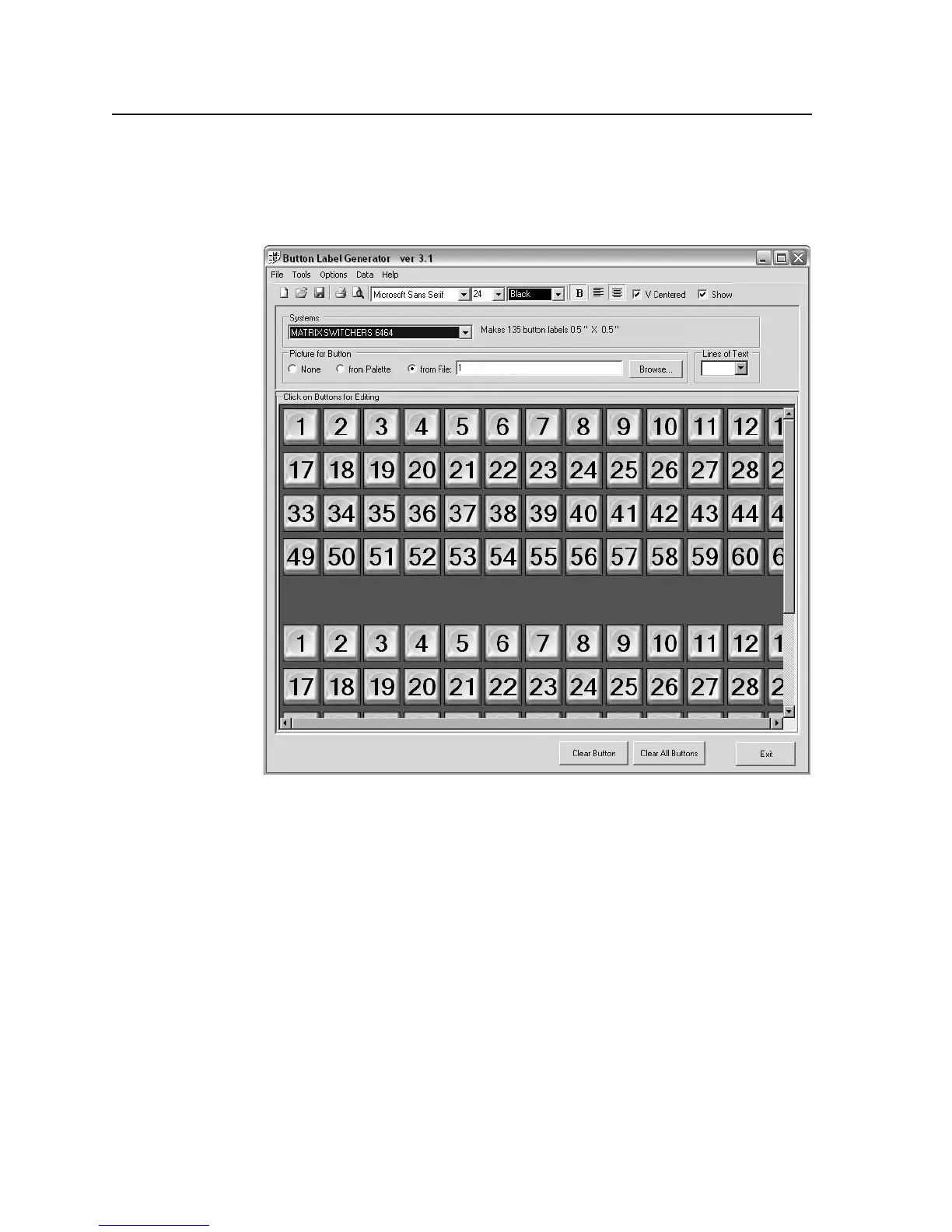

Figure 5-19 — Extron’s Button Label Generator window
2. IntheSystemsselectionbox,choosetheMatrixSwitchers6464optionto
matchthebuttonlabelsizeandquantitiesforyourCrossPointorMAV
switcher.
3
. UsingnormalWindowscontrols,youcancreateandprintlabelsthatcanbe
placed in the label windows on the front panel of the switcher.
N
For best results, print on transparent or translucent material.
4. Click the Clear All Buttons button and create new labels as many times as
necessary to make all of the button labels that you need.
To access the help program, click the Help menu.
