Operation, cont’d
CrossPoint / MAV Matrix Switchers • Operation
3-58
Performing soft resets — CrossPoint 450 Plus and MAV Plus
2412, 2424, 3216, and 3232 matrix sizes
The whole switcher reset function is identical to the front panel system reset (see
“Performing a system reset from the front panel” on page 3-53) without requiring
you to power down the switcher. This function is also identical to the
E
ZXXX
}
SIS command, see chapter 4, “Programmer’s Guide”. System reset clears all ties
and presets, resets all audio gains to unity gain (+0dB), and resets volume to 100%
(0dB of attenuation).
N
The whole switcher reset does not reset the Internet protocol (IP) settings or
replace user-installed firmware.
The absolute reset function is identical to
E
ZQQQ
}
SIS command, see chapter 4,
"Programmer’s Guide". Absolute reset performs all of the whole switcher reset
functions and clears the switcher’s IP address to 192.168.254.254 and subnet mask
to 255.255.0.0.
Perform a soft reset as follows:
1
. Use an Extron Tweeker or other small screwdriver to press and hold the Reset
button until the front panel RGBHV and Audio buttons blink once (reset
whole switcher) or twice (absolute reset) (figure 3-83).
I / O
AUDIO
ACTLINK
ETHERNET
RESET RESET
RGBHV
I / O
AUDIO
ACTLINK
ETHERNET
RESET RESET
RGBHV
Front panel I/O buttons flash once.
Press and hold
the Reset button.
Reset whole switcher
Release, then immediately
press and release again.
Front panel I/O buttons flash twice.
Press and hold
the Reset button.
Absolute reset
Release, then immediately
press and release again.
5 seconds
10 seconds

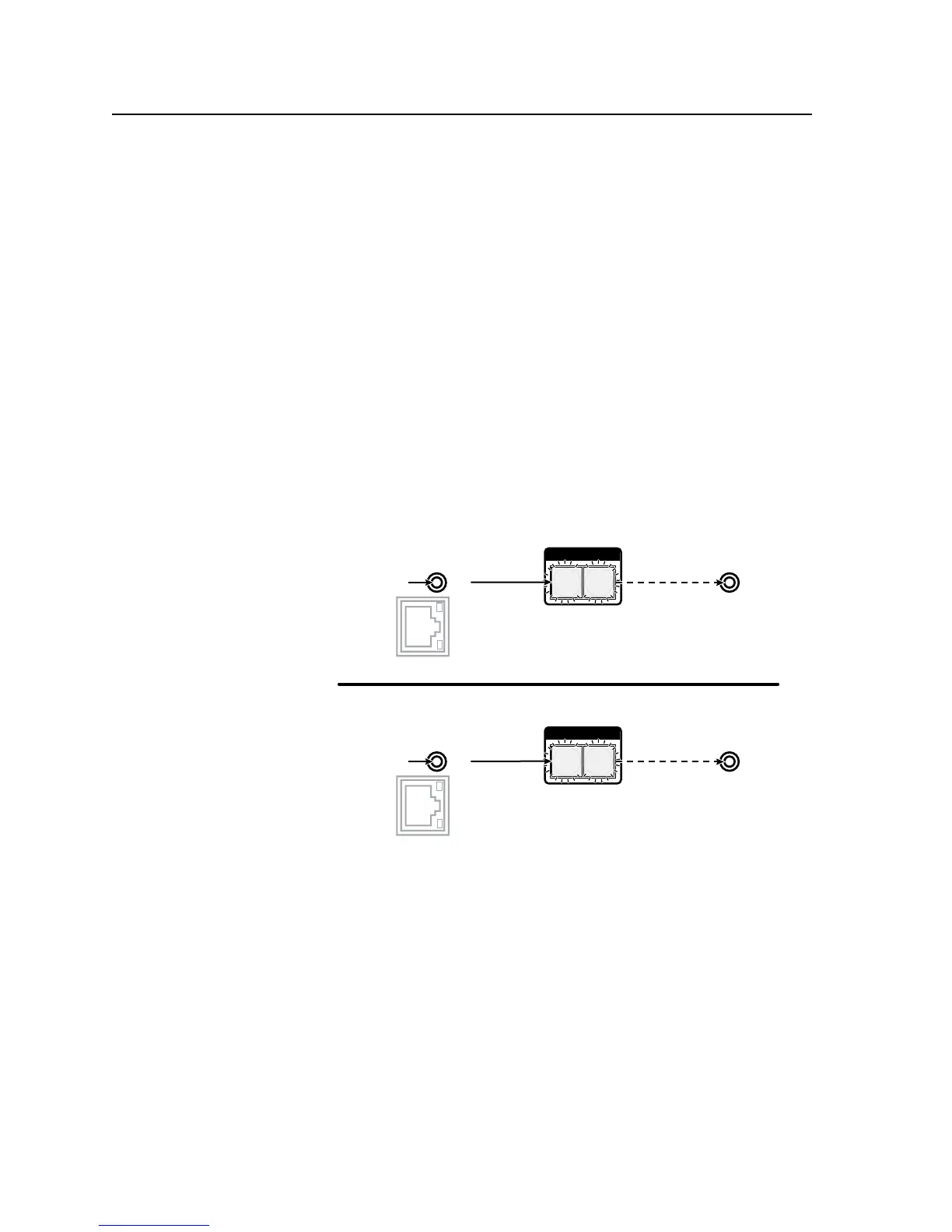

Figure 3-83 — Whole switcher and absolute resets
2. Release the Reset button and then immediately press and release the Reset
button again. Nothing happens if the second momentary press does not occur
within 1 second.
