Operation, cont’d
CrossPoint / MAV Matrix Switchers • Operation
3-14

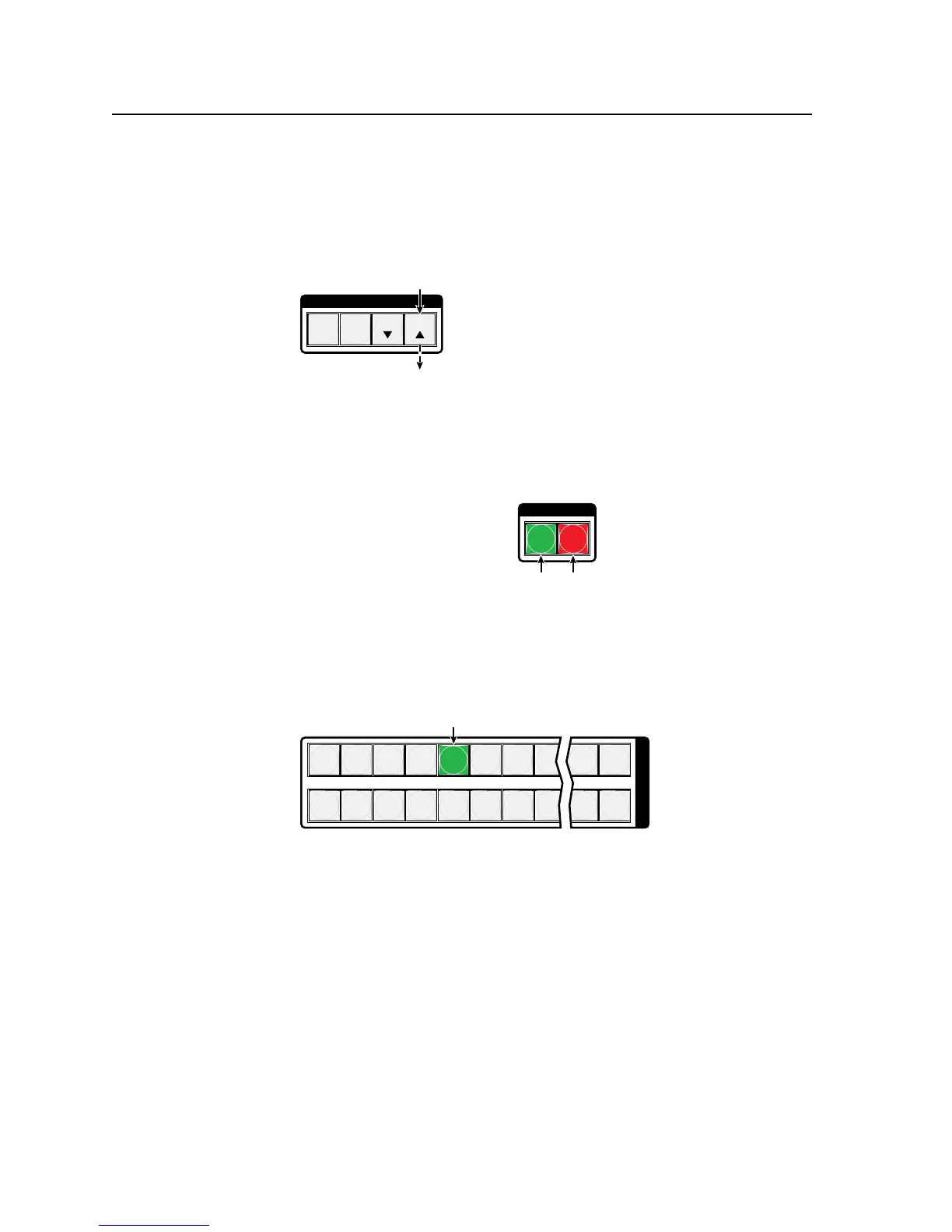

Example 1: Creating a set of video and audio ties
Inthefollowingexample,input5istiedtooutputs3,4,and8.Thestepsshowthe
front panel indications that result from your action.
N
This example assumes that there are no ties in the current configuration.
1. PressandreleasetheEscbutton(gure3-5).
C O N T R O L
PRESET
ENTER
ESCVIEW
Press the Esc button to clear all selections.
The button flashes once.
Figure 3-5 — Clear all selections
2. To select video and audio for the tie, if necessary, press and release the
RGBHV(CrossPointswitchers)orVideo(MAVPlusswitchers)buttonandthe
Audiobuttonuntilthebuttonsbothlight(gure3-6).
I / O
RGBHV AUDIO
Press the RGBHV/Video button to toggle on and off.
The button lights green when selected.
Press the Audio button to toggle on and off.
The button lights red when selected.
Figure 3-6 — Select RGBHV or video and audio
3. Pressandreleasetheinput5button(gure3-7).
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
I
N
P
U
T
S
Press and release the Input 5 button.
The button lights amber (matrix sizes up to 1616) or
green (matrix sizes 2412 through 3232).
Figure 3-7 — Select an input
