Operation, cont’d
CrossPoint / MAV Matrix Switchers • Operation
3-48

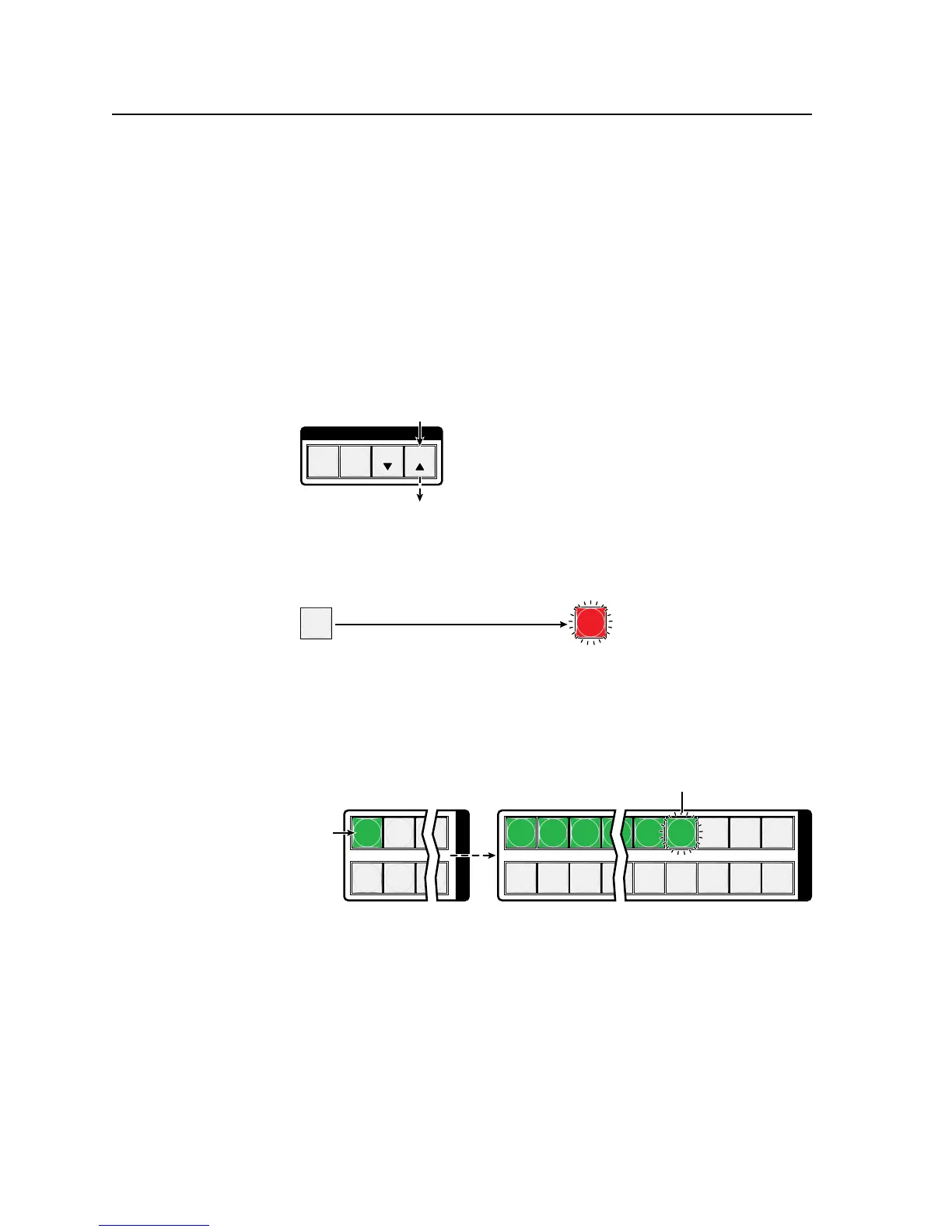

Example 11: Viewing and adjusting an output volume level
Inthefollowingexample,theaudiooutputvolumeisviewedandadjusted.The
steps show the front panel indications that result from your action.
Audiooutputvolumeisdisplayeddifferentlyondifferentmodels.Seethetableon
page3-46.
N
Because of the different volume display schemes, the output volume levels that
result from the following example are shown three times: as displayed on a
32-input button switcher, on a 16-input button switcher, and on a 12-input
button switcher. The 32-button displays show the actions that lead up to the
display and the display itself. For simplicity, the 16-button and 12-button
figures show the volume display only, not the actions that lead to it.
1
. PressandreleasetheEscbutton(gure3-66).
C O N T R O L
PRESET
ENTER
ESCVIEW
Press the Esc button to clear all selections.
The button flashes once.
Figure 3-66 — Clear all selections
2. PressandholdtheAudiobuttonforapproximately2seconds(gure3-67).
AUDIO
AUDIO
Press and hold the Audio button until it blinks.
2 seconds
Figure 3-67 — Select Audio mode
3
. PressandreleasetheOutput1button(gure3-68).
1 2 6
17 18 12
1 2 3 4 12 13 14 15 16
17 18 19 27 28 29 30 31 32
•
•
O
U
T
P
U
T
S
I
N
P
U
T
S
Each lit input button beyond input 1 indicates 3 percent of the total input volume is
applied to the output. The flashing button indicates an additional 1.5 percent.
In this example, the lit input buttons indicate 41.5 percent of the applied audio
input. The unlit input buttons indicate an audio volume attenuation of 39 dB.
Blinking button
–39 dB attenuation
41.5% volume
The input buttons display the selected output's audio volume level.
Press and release the
Output 1 button. The
button lights green.
Figure 3-68 — Select output 1
