Operation, cont’d
CrossPoint / MAV Matrix Switchers • Operation
3-16

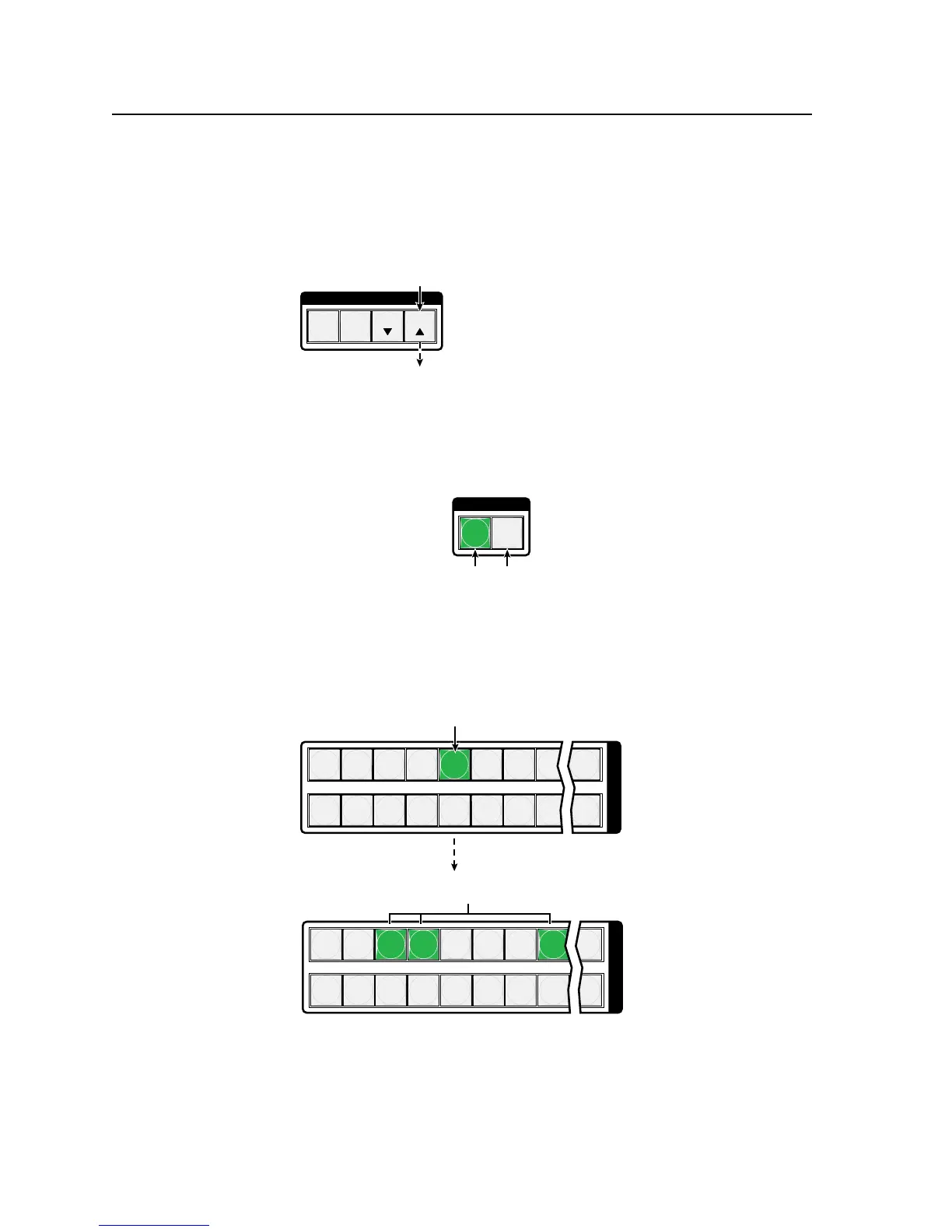

Example 2: Adding a tie to a set of video and audio ties
Inthefollowingexample,anewvideotieisaddedtothecurrentconguration.
The steps show the front panel indications that result from your action.
N
This example assumes that you have performed example 1.
1
. PressandreleasetheEscbutton(gure3-11).
C O N T R O L
PRESET
ENTER
ESCVIEW
Press the Esc button to clear all selections.
The button flashes once.
Figure 3-11 — Clear all selections
2. To select video only for the tie, if necessary, press and release the RGBHV
(CrossPointswitchers)orVideo(MAVPlusswitchers)buttonandtheAudio
button (figure 3-12).
I / O
VIDEO AUDIO
Press the RGBHV/Video button to toggle on and off.
The button lights green when selected.
Press the Audio button to toggle on and off.
The button is unlit or background illuminated when deselected.
Figure 3-12 — Select RGBHV or video only
3. Pressandreleasetheinput5button(gure3-13).
1 2 3 4 5 6 7 8 16
17 18 19 20 21 22 23 24 32
I
N
P
U
T
S
1 2 3 4 5 6 7 8 16
17 18 19 20 21 22 23 24 32
O
U
T
P
U
T
S
The Output 3, Output 4, and Output 8 buttons light green to
indicate the RGBHV or video ties created in example 1.
Press and release the Input 5 button.
The button lights green to indicate that video
outputs can be tied to or untied from this input.
Figure 3-13 — Select an input
To Next Page
