3-23
CrossPoint / MAV Matrix Switchers • Operation
6. PressandreleasetheRGBHV(CrossPointswitchers)orVideo(MAVPlus
switchers) button and the Audio button to toggle the Video button on green
and the Audio button either unlit or providing background illumination
(gure3-27).
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
O
U
T
P
U
T
S
I / O
VIDEO AUDIO
The output buttons for outputs that are not tied to Input 5 are
either unlit or background illuminated.
The output buttons for outputs that are tied to Input 5 light
green to indicate RGBHV/Video ties (audio breakaway).
Press the RGBHV/
Video button to select it.
The button lights green
when selected.
Press the Audio
button to deselect it.
The button is unlit
or background
illuminated when
deselected.

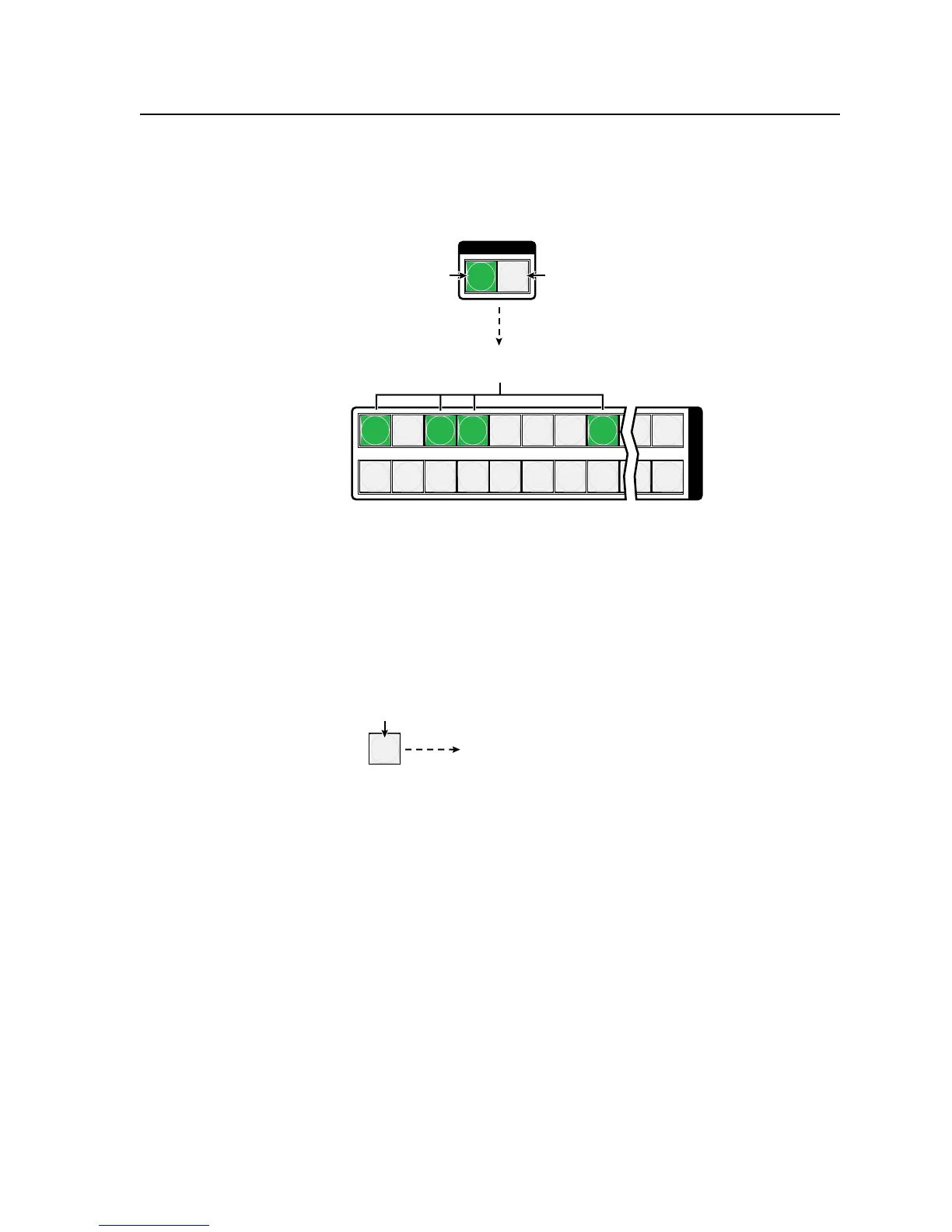

Figure 3-27 — Deselect audio and select RGBHV/video to view video
ties only
 Ifvideotiesareestablishedforinput5,theoutputbuttonslightgreenforall
videooutputstiedtoinput5.Ifnotiesareestablishedforinput5,alloutput
buttons return to either unlit or to background illumination.
7
. PressandreleasetheViewbuttontoexitView-onlymode(gure3-28).
All input buttons and output buttons
return to unlit or background illumination.
VIEW
Press the View button
to exit View-Only mode.
The View button returns to
unlit or background
illumination.
Figure 3-28 — Press the View button to exit View-only mode
