Rear shocks
Torque wrench, ratchet, ¾” socket, 15mm wrench
Mustang vertical shocks, quad shocks, quad shock brackets, Quad shock fasteners assembly, rear
spring perches, rear traction Lok brackets/fasteners.

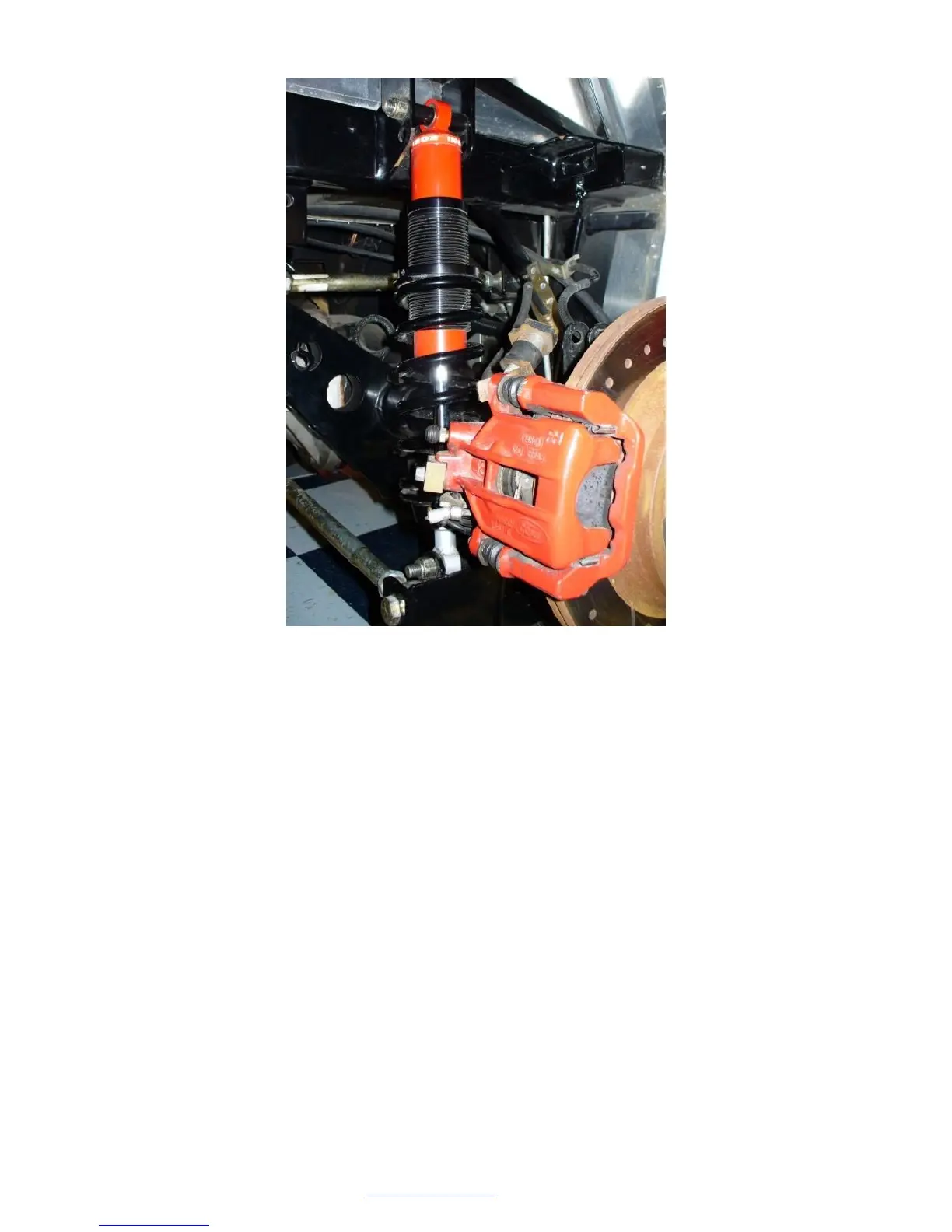

Attach the rear vertical shocks at the top through the holes in the plates located in the trunk area using
the Mustang rubber bushings and fasteners. Torque to 37-47Nm (27 lbft).
Install the kit ½”x 4” bolts are provided for each lower shock mount. From the rear, the bolt goes
through the bracket, ⅛” shim, shock, then the long spacer (1.09”) followed by the bracket and axle. Use
a ¾” socket and Torque wrench to tighten both upper and lower mounts to 40 ft-lbs.
