124
www.factoryfive.com 508-291-3443

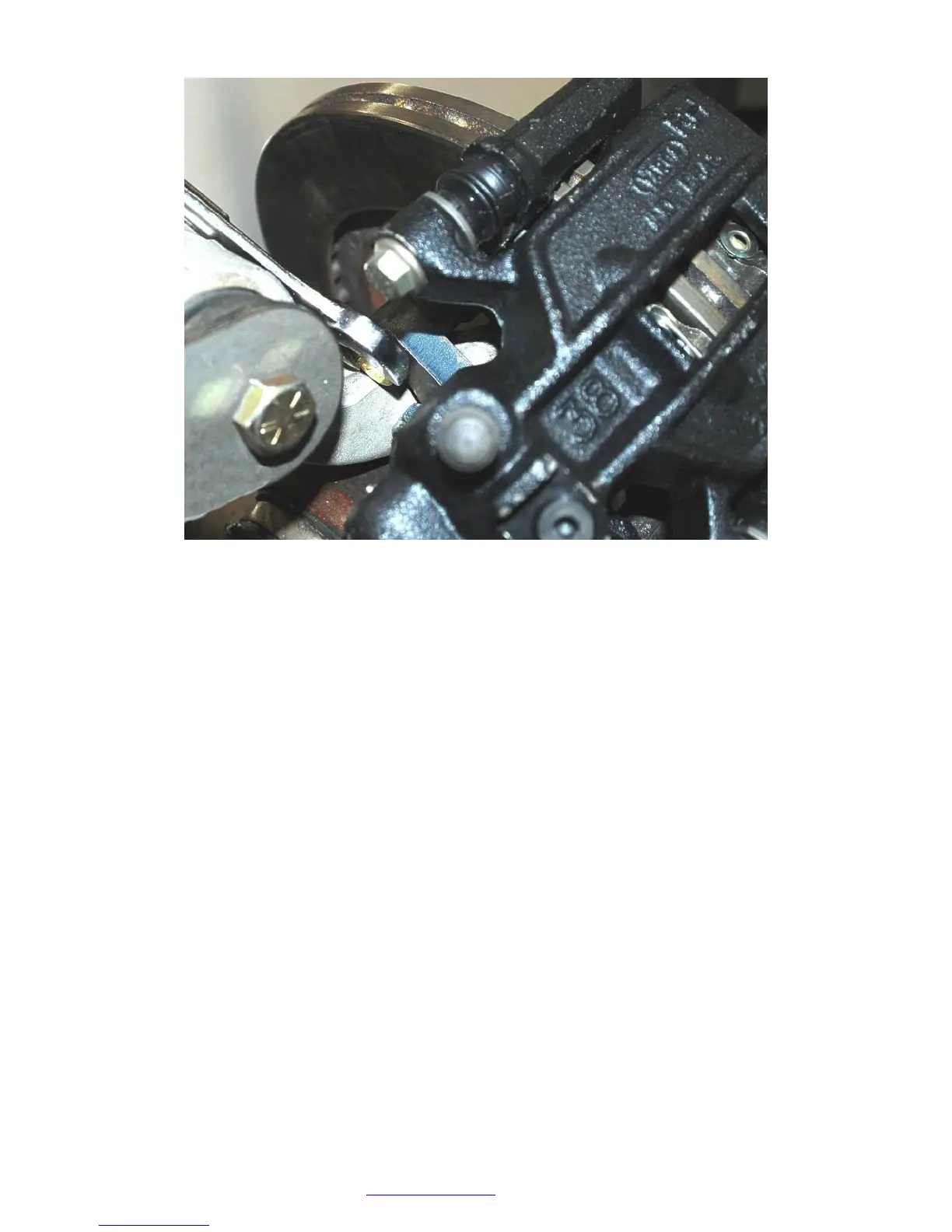

Tighten the top mount bolt with a ¾” wrench.
Driver Front Footbox Aluminum
Drill,
1
/
8
” drill bit, rivet tool, caulk gun, silicone
Firewall and Driver Footbox Front aluminum, Secondary body fasteners.
If you are installing a heater/defroster it is much easier to cut the firewall before installing. Refer
to those instructions for the template.
If you are installing the complete kit Wilwood pedalbox use the front panel that is packed with it.
Mark, drill, and rivet in place the driver’s side footbox front panel, leave the lower section that attaches
to the 1” tube un-siliconed and un-riveted for the inside wall to slip underneath later.
