309
www.factoryfive.com 508-291-3443

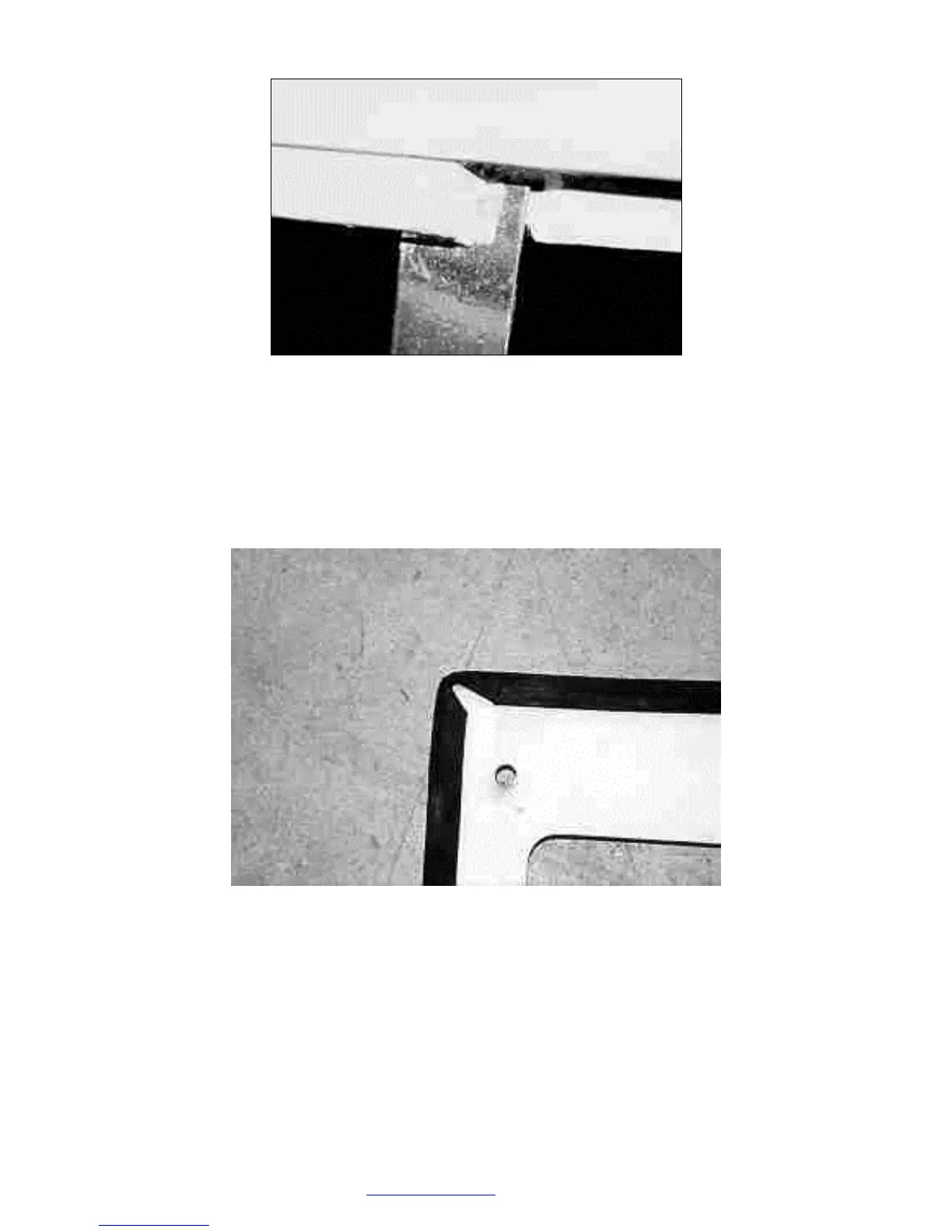

Top of weather strip mount.
Push the rubber on side weather stripping onto the flange going around the door opening.
The window tracks mount on the outside of the window.
Push the “U” window weather stripping onto each of the side windows. The weather stripping may have
to have a “V” cut with a pair of wire cutters out of the inside of the weather stripping in order to sit
properly in the corners.
Insert the window into the window steel and assemble on the door using the screws provided. Use
washers under both the head and Nut of each bolt.
Final assemble the rear weather strip mount using the screws provided.
Rear Quarter windows
5
/
32
” drill bit, drill, sand paper, fine blade hack saw (finer the better), masking tape, market
Quarter windows
