290
www.factoryfive.com 508-291-3443
Slide the band clamps for the side pipes onto the headers. The small diameter goes first.
Side Exhaust

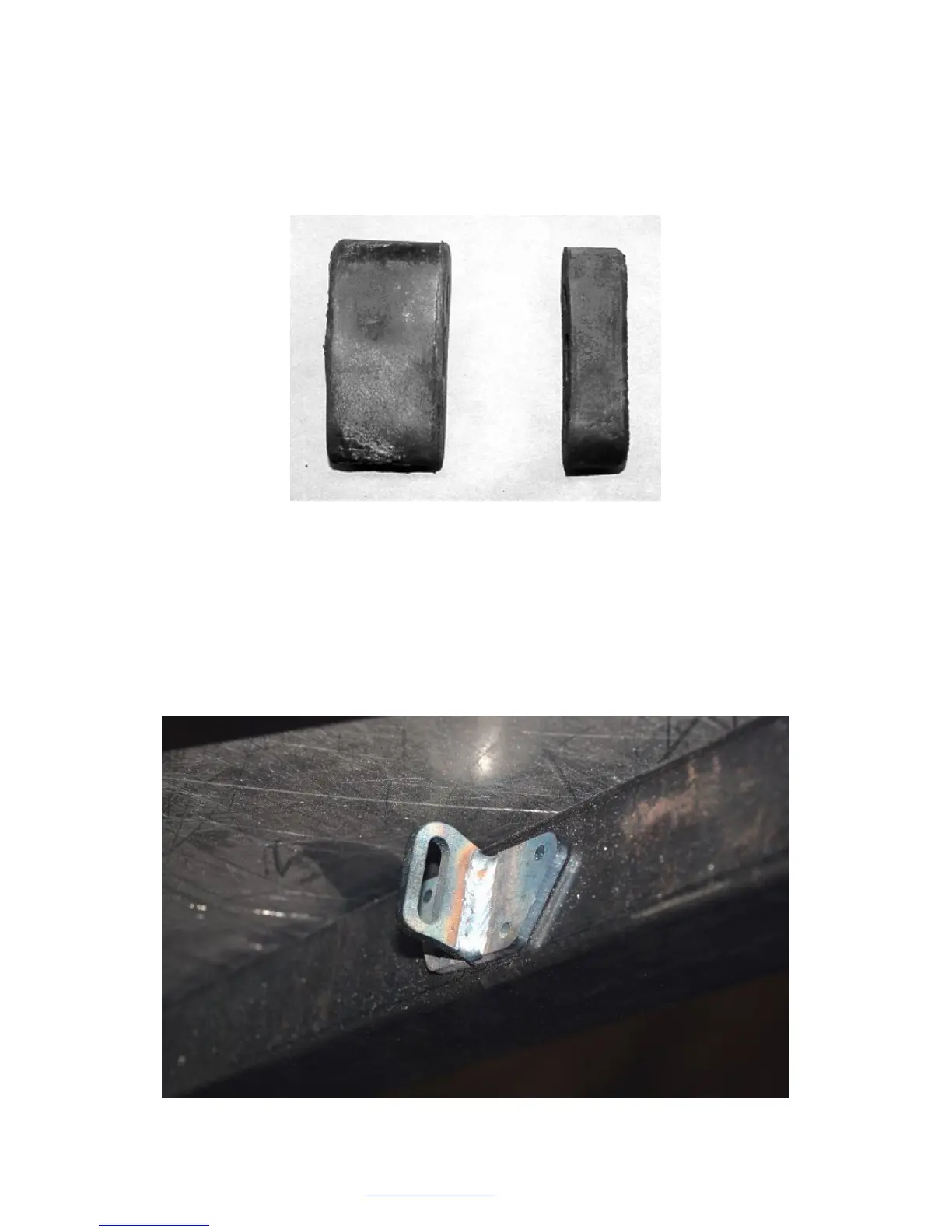

Cut the large exhaust hanger in half lengthwise.
Attach one half of the rubber exhaust mount to the side pipe mount using a
5
/16
”x 1.5” button head screw,
washer and locknut. Place a washer next to the locknut so that it will not pull through the rubber.
Slide the side pipes into position over the header tubes. Align the pipes with the body.
Tighten the clamps. It helps to hold the rear of the tubes slightly upward. Torque the clamps to 75
ft/lbs.
Locate and mark the side exhaust mount on the inside of the outer 2”x 2” frame rail using the rubber
mount as a guide.
Drill the four mount locations using a
3
/
16
” drill bit.
