382
www.factoryfive.com 508-291-3443
Make sure that the front of the lower section of body is even with the nose when it is down.

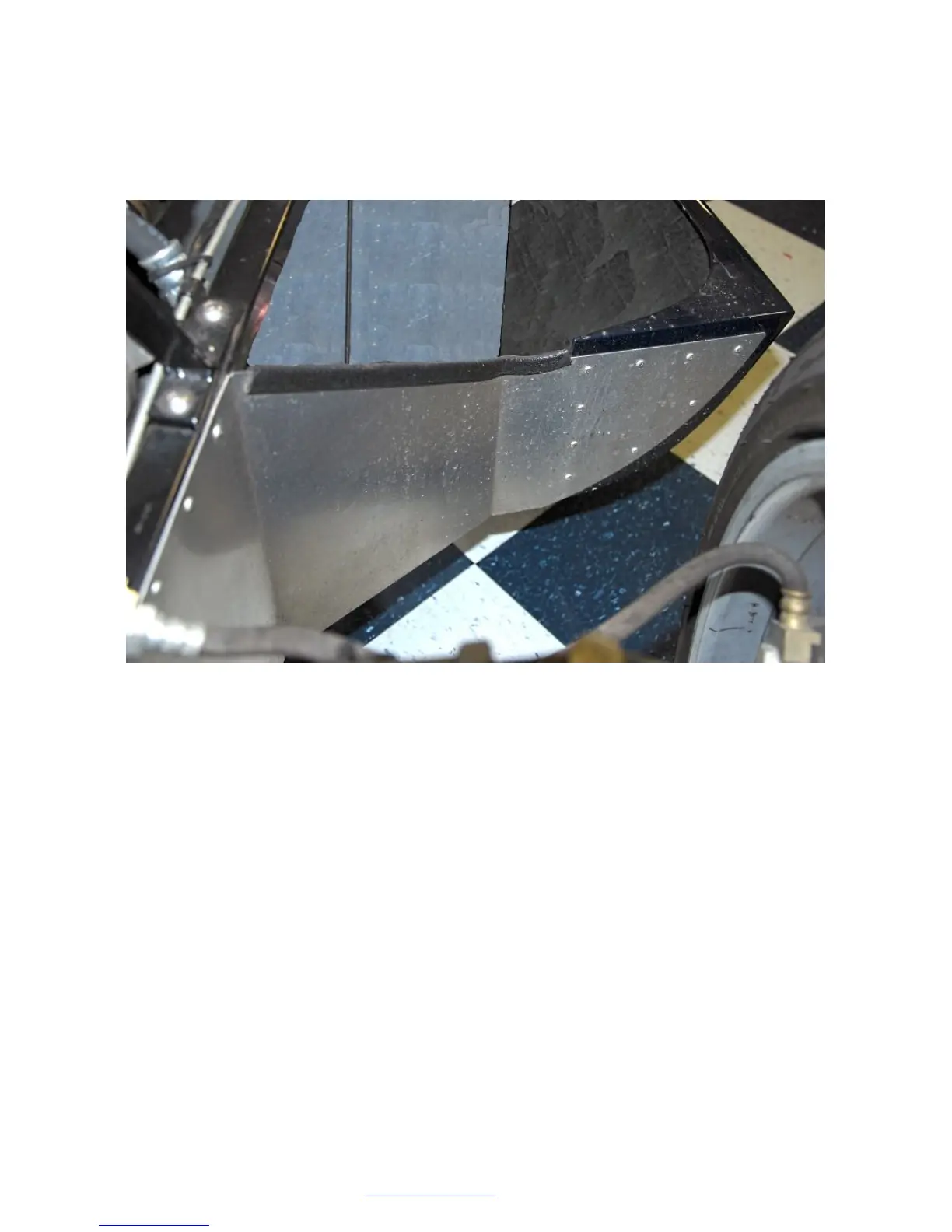

Apply silicone to the outside of the lower splash guard then mark and rivet the outside of the lower
splash guard to the body.
Note the Push some bulb weather-stripping onto the splashguards where they can contact each other.
Silicone the weather-stripping around the splashguard to the nose from the backside of the wheel well.
Rear Wheel
Push press-on trim onto the rear splashguards.
Hold the panel in place in the wheel well. The bent edge should be vertical and aligned with the
backside of the quad shock mount. The top section should run along the ¾” tube in that area.
