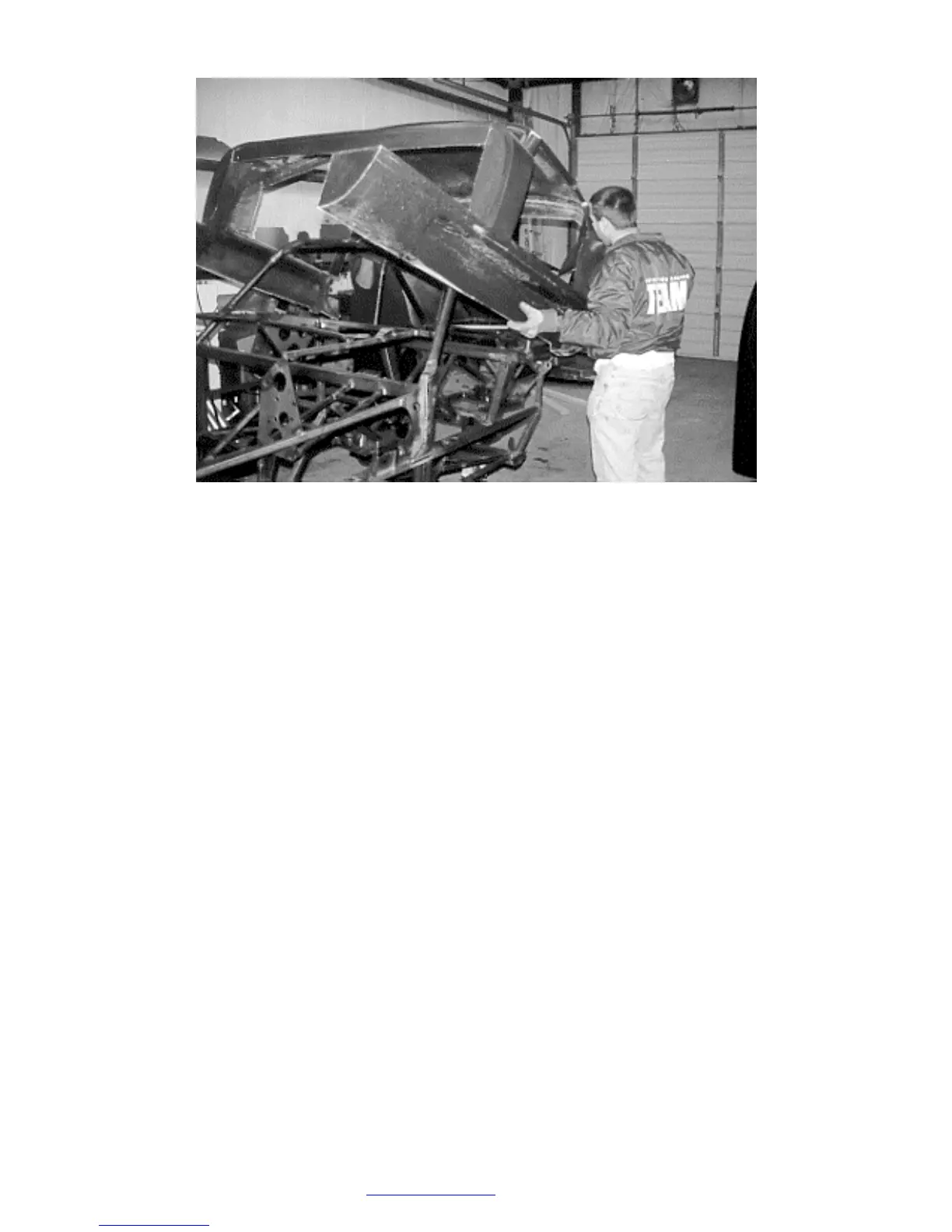

Pull the sides of the body out to clear the frame.
Watching the rear of the frame, move the body forward slowly lowering the front. Watch the door latch
posts.
Move forward until the rear hatch tubing is lined up with the lip on the body and put the body down in
place.
Once the body is in position, it will be snug against the taillight plates in the rear, the lower rear corners
of the door opening should be at the corner of the tubes for the door latch and the windshield mounts
should be close.
Final Tail light install
⅜” wrench,
⅛” hex key, small flat head screwdriver
Tail lights and hardware.
The lights mount from the outside of the body without the lenses and trim rings in place.
Wire the turn signals up to the wiring harness.
Mount the lights using the supplied hardware.
Attach the lenses and trim rings to the rubber seals using a small flat head screwdriver.
