282
www.factoryfive.com 508-291-3443
Nose Side Locator Brackets
Drill, ⅛”, ⅜” drill bit, 1.25” hole saw, rivet gun, silicone,
5
/
16
” hex key,
9
/
16
” wrench.
Nose locator bracket assembly, secondary body fastener assembly

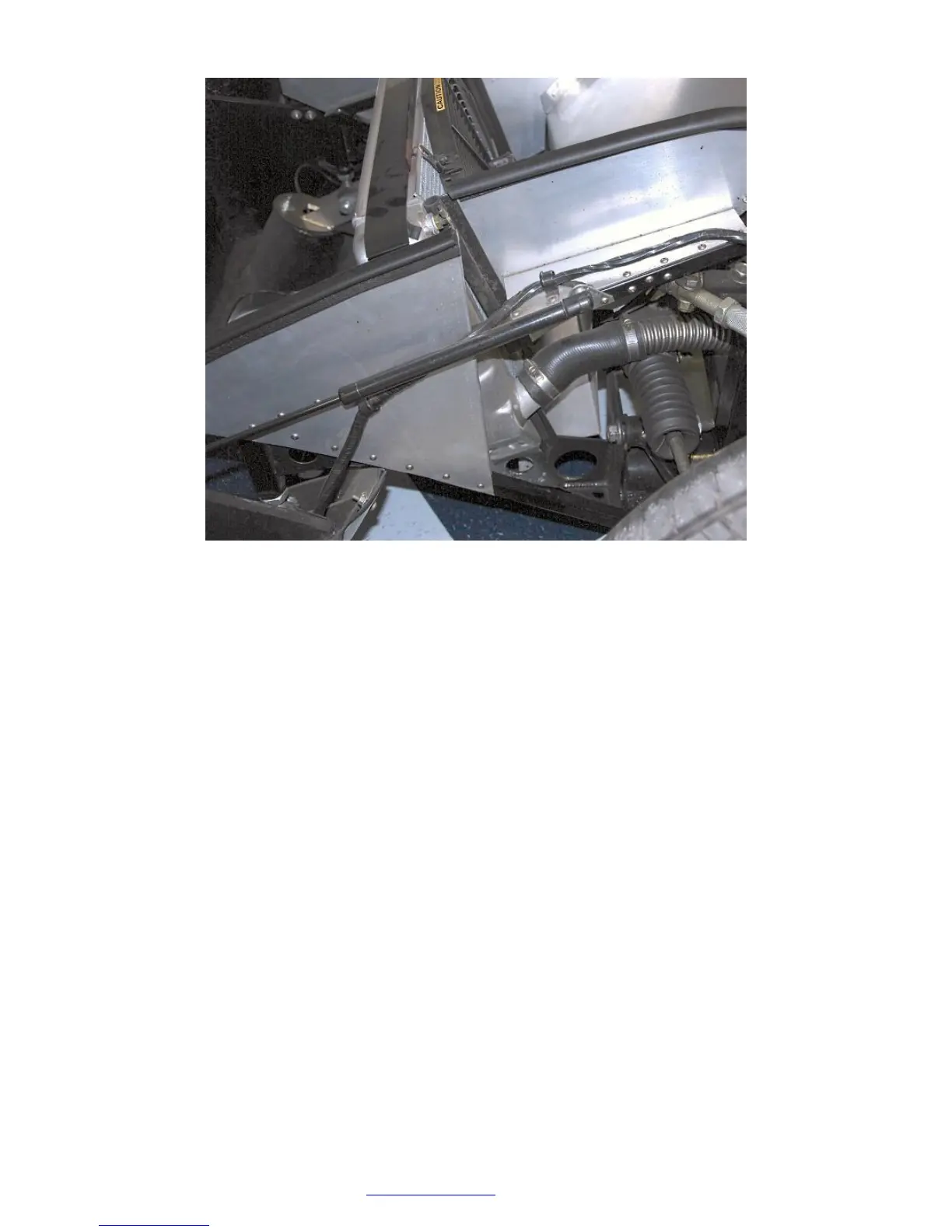

Hold the outside of the nose behind the wheel opening so that it is flush with the lower part of the body.
Clamp or hold the nose so that it will not move while drilling the locator hole.
Position the locator bracket on the backside of the nose so that it is aligned with the side of the nose.
Use a marker and mark all rivet holes and the large center hole.
Remove the locator bracket.
Drill a
1
/
8
” hole through the center hole mark through both the nose and the lower body section.
Open the hose and drill the remaining rivet hole marks through the nose.
Enlarge center
1
/
8
” hole with a 1.25” hole saw.
Drill the rivet location marks with a ⅛” drill bit.
Enlarge the hole drilled in the body section using the ⅜” drill bit.
Silicone and rivet the Locator bracket to the backside of the nose.
Place a washer on the
3
/
8
” locator bolt and pass it up from the under side of the body.
Place another washer on the topside of the body followed by the acorn nut.
Close the nose to test the locating pin height. Add or remove washers as needed to locate the side of the
body correctly.
