196
www.factoryfive.com 508-291-3443
Engine Harness
⅜” socket, regular head screwdriver, slip joint pliers,
3
/
16
” and ⅛” drill bits, drill, #6 nut driver,
electrical tape, wire cutters.

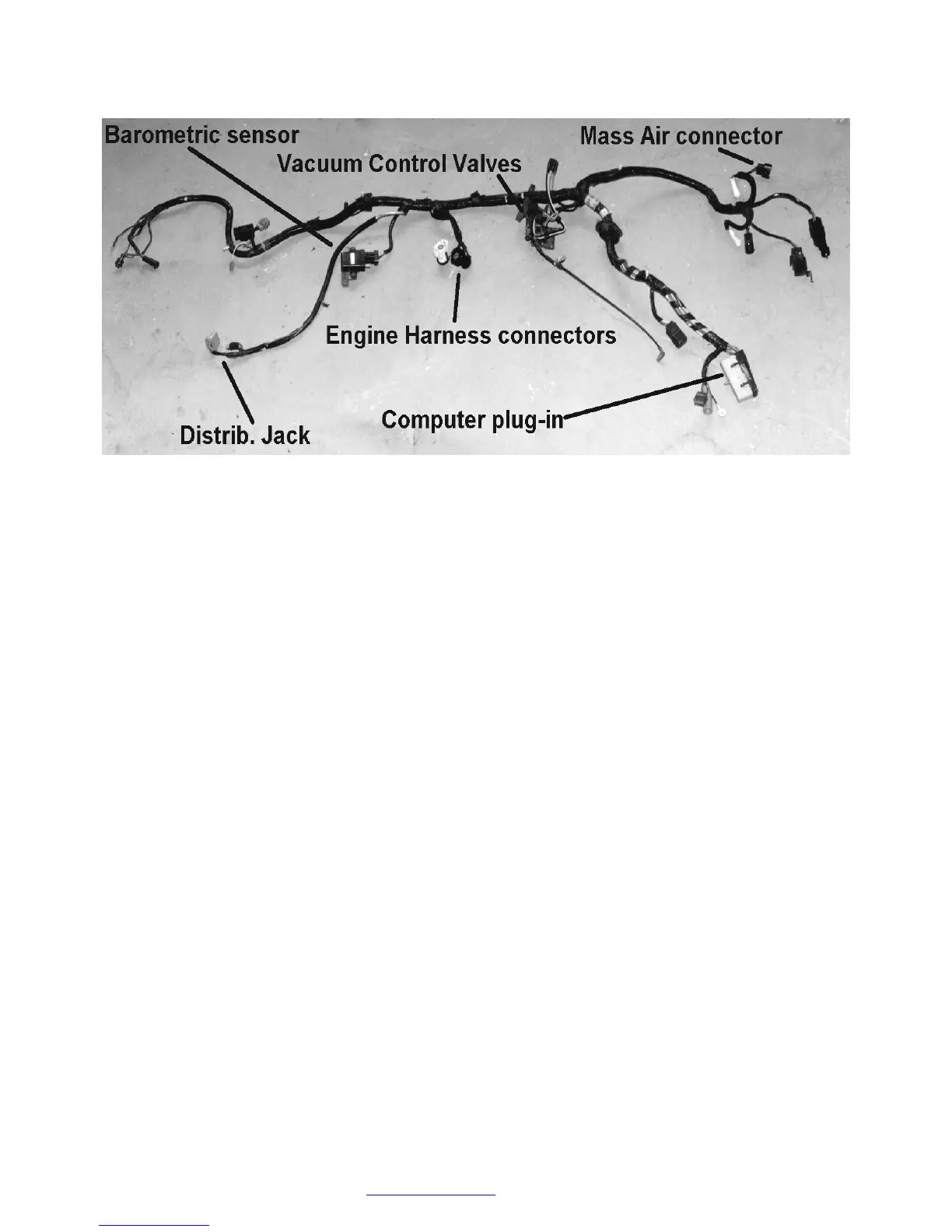

Mustang engine harness, engine harness assembly
The aluminum is laser cut for the EFI (Electronic Fuel Injection) rubber grommets, the kit comes
with block-off covers if a carbureted engine is used.
If you are running a carbureted engine you do not need this section.
Make sure that the battery is not connected any time you are working with the computer.
The engine harness begins in the passenger foot box. The computer plug is pushed through the oval
shaped hole on the passenger footbox top.
Attach the computer to the underside of the top of the passenger foot box using the plastic bracket from
the Mustang and the screws provided. Alternatively, the computer can be mounted to the inside of the
right footbox or Behind the firewall if the optional heater/defroster is not being used.
