Factory Five Racing Type 65 Coupe - Quad Shock Installation

117
www.factoryfive.com 508-291-3443
Quad shock Installation

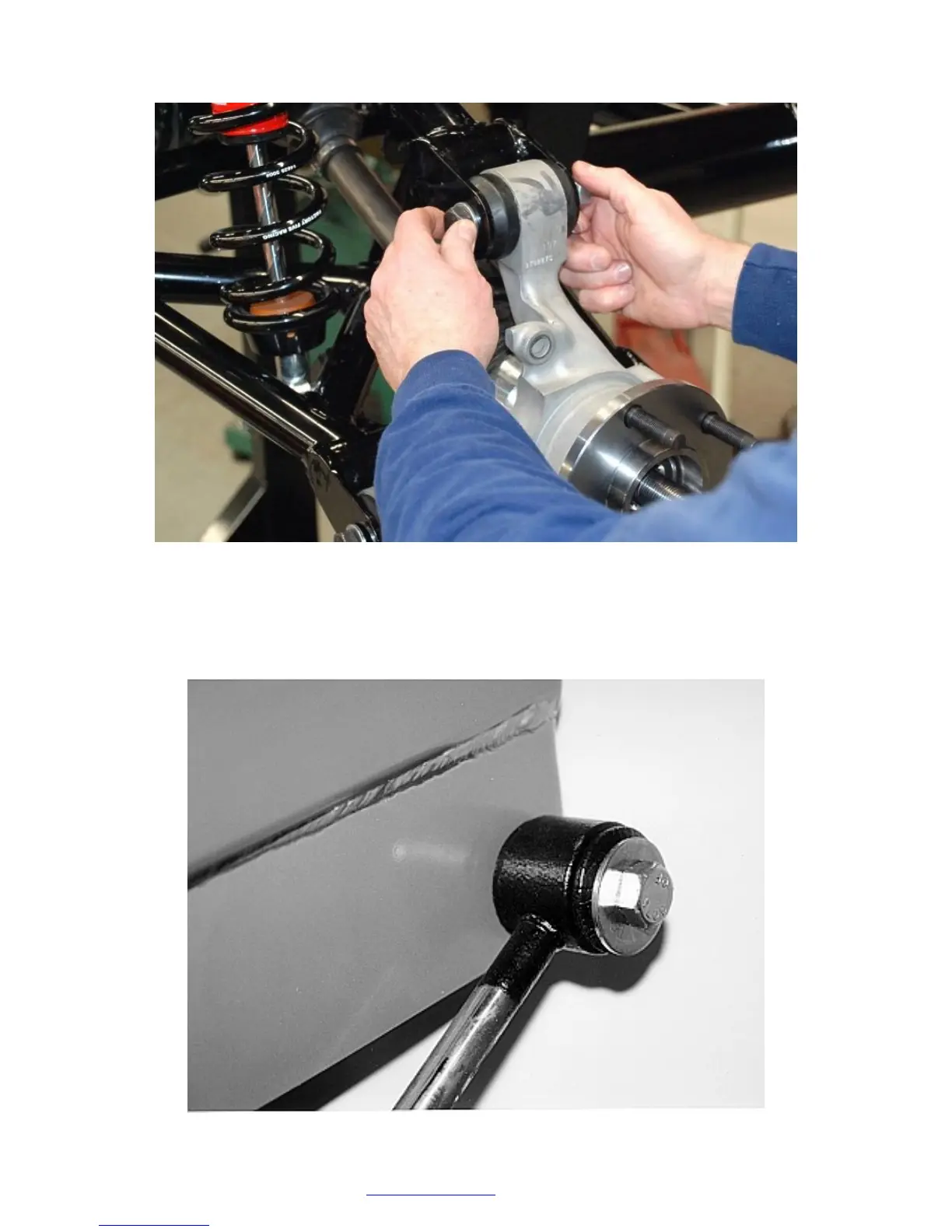

Attach the body end of the Quad shock to the upper arm of the IRS with the supplied metric bolt.
Attach the shaft end of the Quad shock to the rear quad shock bracket hole on the frame using the
washer on the outside of the quad shock as shown in the picture.
Quadshock mounted to frame bracket.
