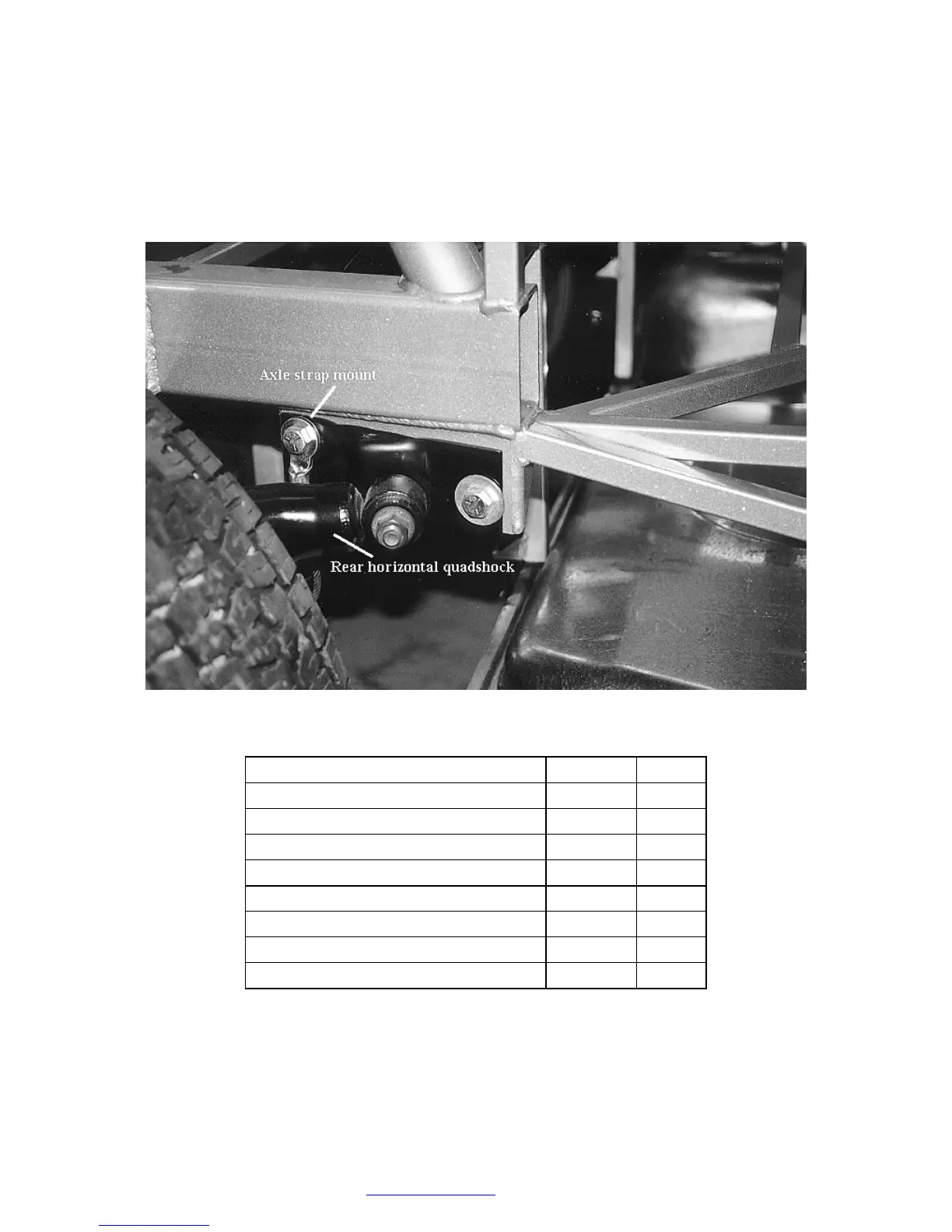

Mount the quad shocks and their brackets to the rectangular frame plate hanging under the 2”x 3” tube
behind the axle.
Attach the rear end axle straps (included with the kit). These cables will prevent drive shaft binding if
you happen to achieve airborne status. The rear end straps bolt to the front bolt of the quad shock up
high, and back side of the vertical shock down low.
Tighten the bolts on the quad shock brackets.
4 link Rear Suspension Torque Specs Chart
Item Nm Lbft
Upper control arm to axle 101-111 75-82
Upper control arm to frame 101-111 75-82
Lower control arm to axle 101-111 75-82
Lower control arm to frame 101-111 75-82
Upper Mustang shock to frame 37-47 27-34
Lower Mustang shock to axle bracket 54-67 40-50
Upper optional shock to frame 54-67 40-50
Lower optional shock to axle bracket 54-67 40-50
If running a 4 link, skip to the Firewall and Driver front footbox aluminum section.
