206
www.factoryfive.com 508-291-3443

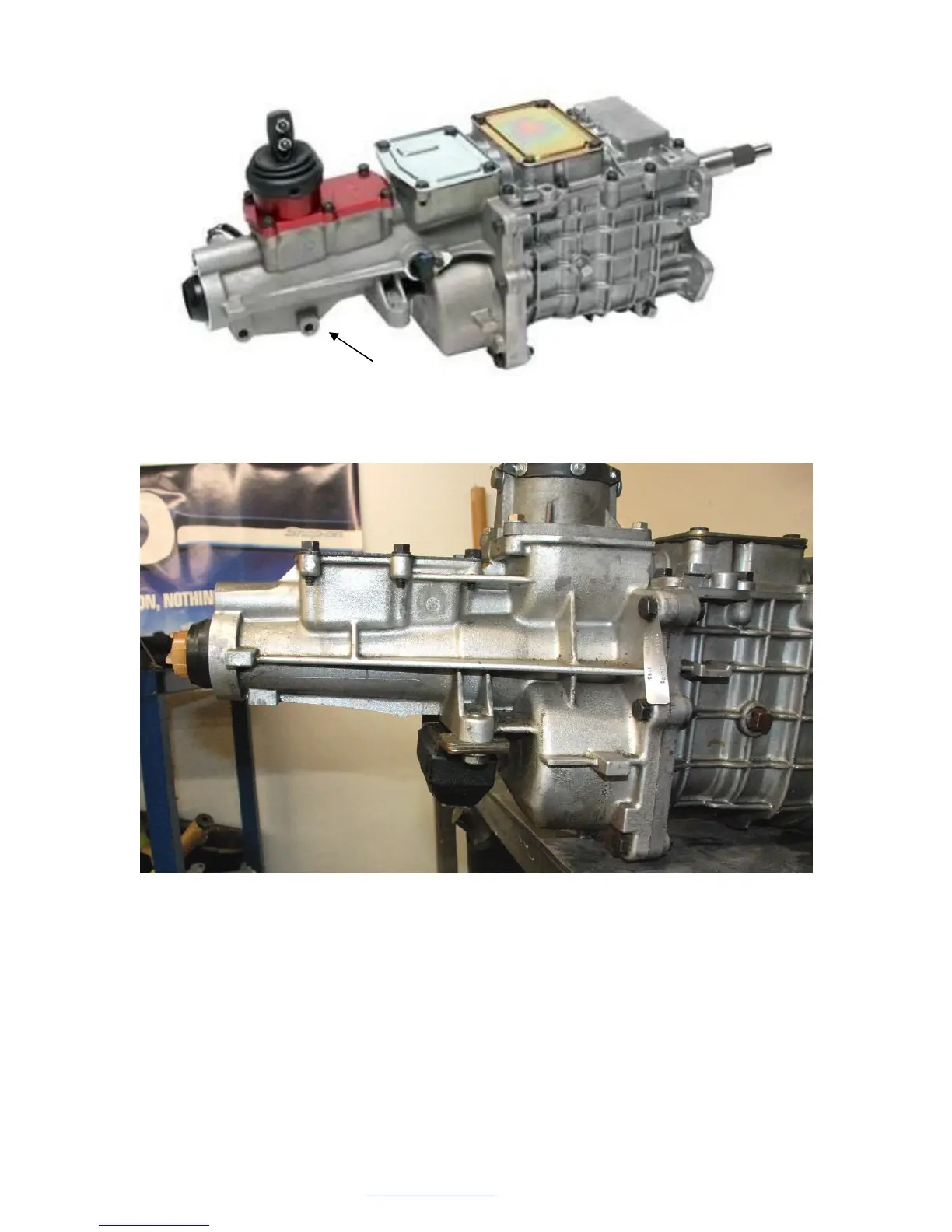

Trim it flush or just below the pad for the transmission mount.
87-93 Alternate Drive Pulley
¾” socket, ¾” wrench.
Alternate drive pulley components
If you are using under-drive pulleys or eliminating the smog pump do not drill the A/C bracket
according to the diagram. Instead use the belt as a guide to mount the pulley where the belt will
fit and have sufficient tension.
Place a washer onto the bolt.
Place the pulley wheel on the bolt.
