Lower Switch Panel

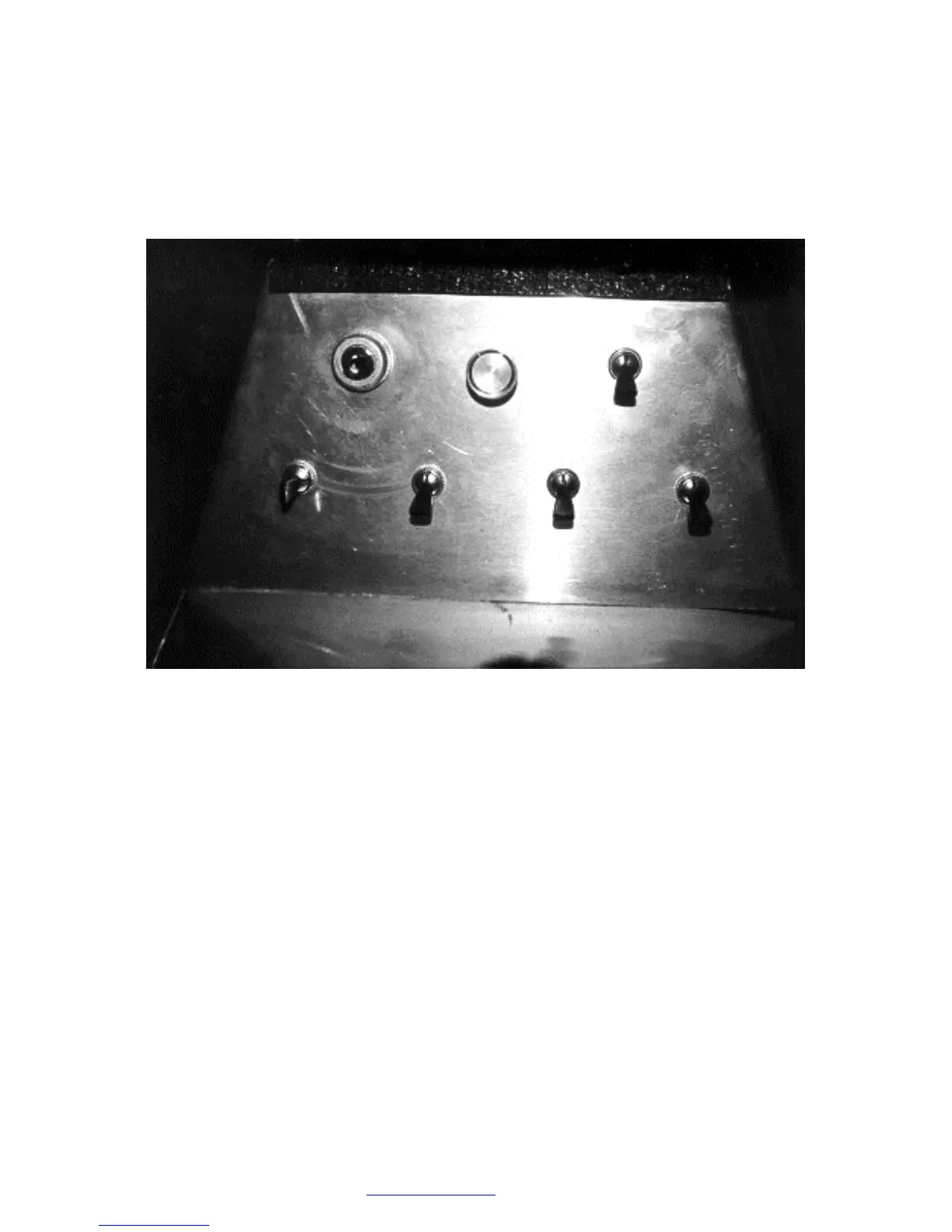

Decide the layout of the lower switch panel. Below is the layout we chose. If installing a radio
keep it in mind as well.
The layout shown uses optional switches that are included in the carbureted harness option and
wiper option.
Top row left to right: Ignition key, headlight/dimmer, high/low beams.
Bottom row left to right: Turn signal, fog lights, open, open.
Space the switches and knobs evenly.
Use a ½” drill bit for the switches, ¾” for the ignition switch and
7
/
8
” for the Horn Button.
Position the switch panel under the dash and on the outside of the transmission tunnel.
Use #6 screws to hold the position until all the wiring has been done.
